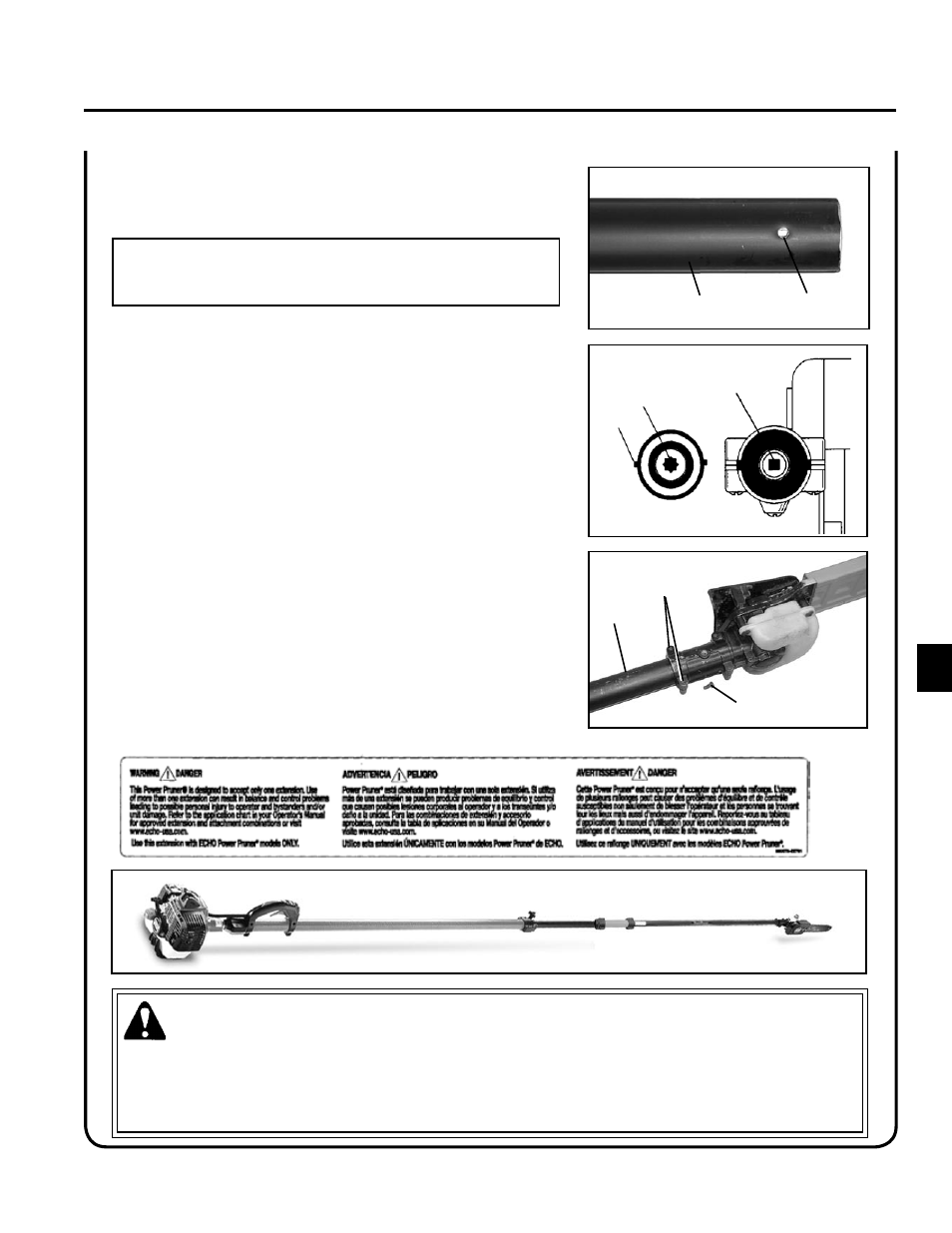

8. Align extension drive shaft adapter (H) with cutting attachment
shaft (I).
NOTE
Locator screw in cutting attachment must align with locator hole
(L) in extension housing (J).
9. Align ridges on aluminum extension housing (J) with seams in
cutting attachment and slide cutting attachment onto extension
housing. Remove locator screw (B) to align locating hole in cutting
attachment with locating hole (L) in aluminum extension housing.
10. Install and tighten locator screw (B). Tighten two (2) cutting at-
tachment screws (A).
H
I
J
WARNING
• The Power Pruner TM is designed to accept only one extension. Use of more than one extension or longer shafts can
result in balance and control problems leading to possible personal injury to operator and bystanders and/or unit
damage.
• Use this extension with ECHO Power Pruner TM models ONLY.
B
a
J
l
J
4' Extension Safety Label P/N 89007522761
