Page 10
Attaching the mounting plate (XRS Surrounds only)
The X-Ref Surrounds can be wall-mounted using the convenient (and included) mounting
plate. The mounting plate is attached to the wall with screws or drywall fasteners; two
screws are then inserted into the back of the XRS Surround. Do NOT screw the screws fully
into the back of the speaker; the screw heads must remain raised to engage the keyways
in the plate. You then simply press the XRS against the mounting plate (so the screw heads
on the XRS engage the keyway holes in the plate) and seat it downwards, locking the
screws securely into the keyways.

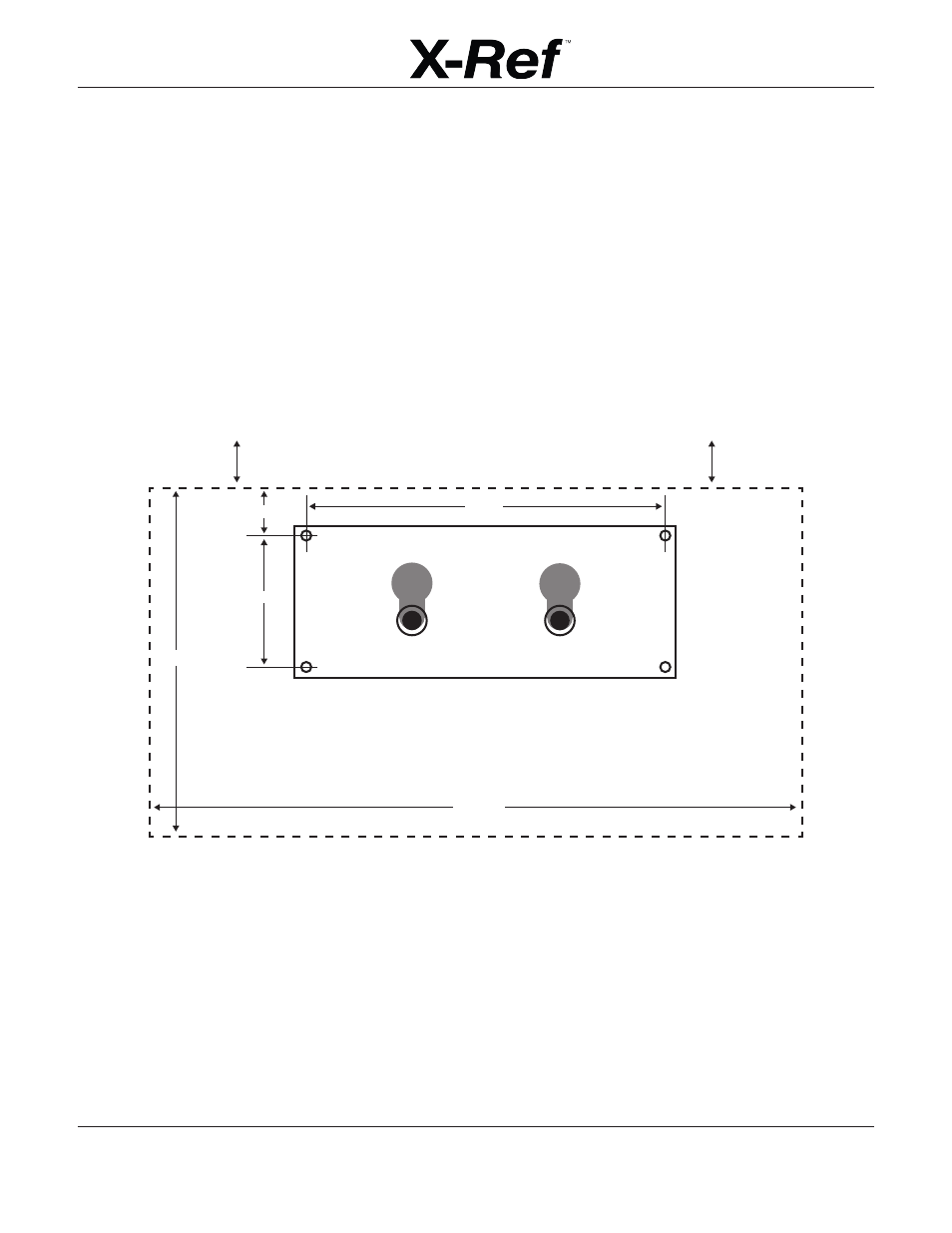

Attach the mounting plate as shown in the figure below, with the raised side of the keyways
and the foam pads away from the wall (and towards you).
13/16”
2-3/4”
7-1/2”
7-5/16”
13-7/16”
XRS-4.1
Mounting Plate
You MUST leave at least 3/4” clearance above the speaker to allow the keyway to engage
Mounting dimensions for XRS-4.1
