Exmark Frontrunner - Manual (Page 9)

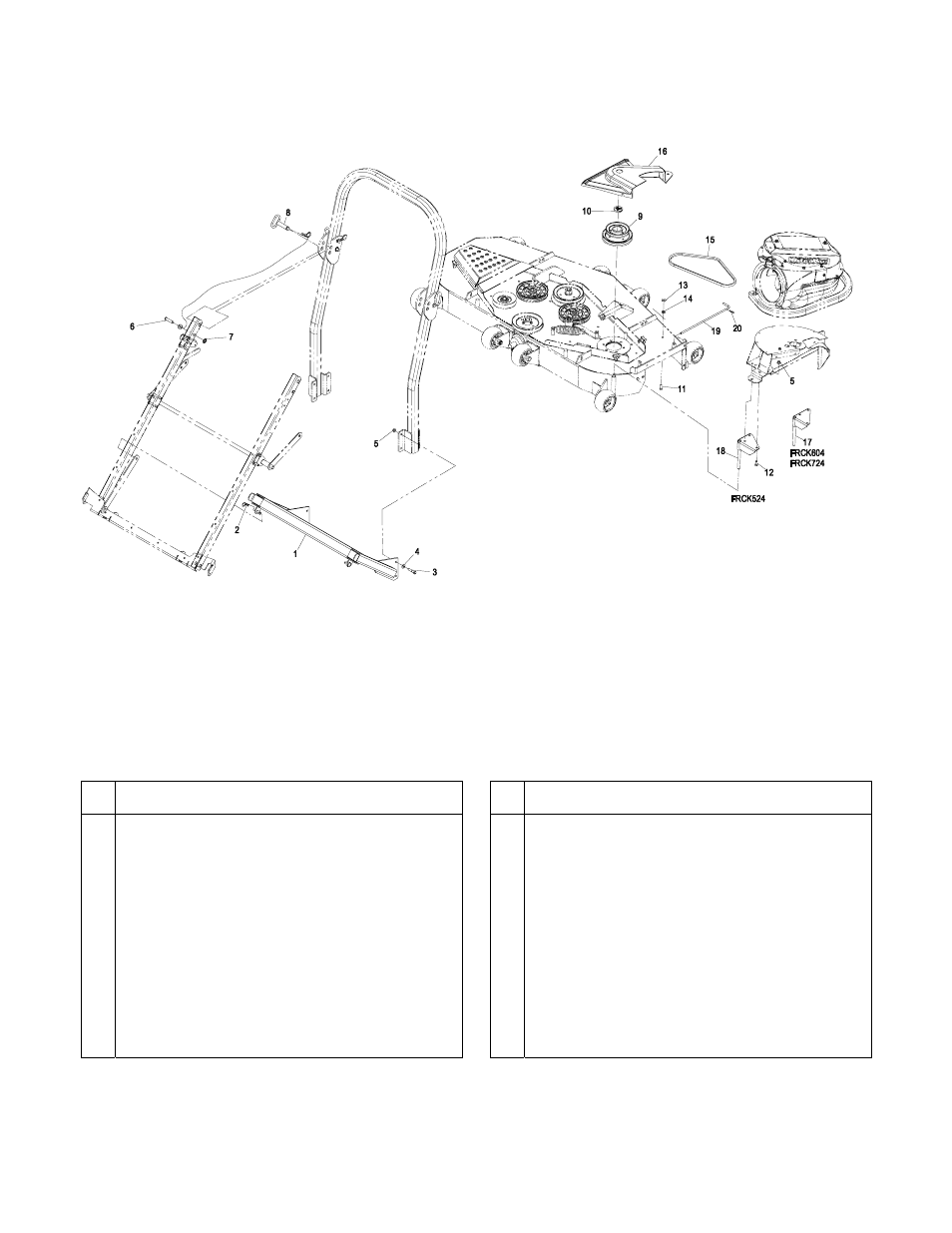

MOUNTING COMPONENTS
9
Item
Part No.
Description
Qty.
1 109-4748-03 Wld, Hopper Supt................................... 1
2 1-806005 Hairpin, Cotter........................................ 2
3 323-9 Screw, HH 3/8-16 x 1 3/4 ....................... 4
4 98-5975 Washer, Spring Disk 3/8......................... 4
5 3290-357 Nut, Whizlock 3/8-16 .............................. 7
6 283-5 Pin, Clevis.............................................. 2
7 1-323142 Nut, Push 1/2 ......................................... 2
8 103-4553 Asm, Rops Fold Pin ............................... 2
9 103-2797 Jackshaft, 52”......................................... 1
103-2792 Jackshaft, 60”......................................... 1
103-2796 Jackshaft, 72”......................................... 1
10 103-1279 Plug, Black Nylon................................... 1
11 322-5 Screw, HH 5/16-18 x 1 ........................... 1
Item
Part No.
Description
Qty.
12 323-4 Screw, HH 3/8-16 x 3/4.......................... 3
13 3256-3 Washer, 5/16 Std ................................... 1
14 32128-20 Nut, Whizlock 5/16-18............................ 1
15 109-4948 Belt, Blower Drive 52” ............................ 1
103-0866 Belt, Blower Drive 60” ............................ 1
103-0867 Belt, Blower Drive 72” ............................ 1
16 109-4846 Cover, Belt 52”....................................... 1
109-4847 Cover, Belt 60”....................................... 1
109-4848 Cover, Belt 72”....................................... 1
17 103-0445-03 Wld, Mount Pin 60” & 72” ....................... 1
18 109-4841-03 Wld, Mount Pin 52” ................................ 1
19 109-3458 Pin, Chute Pivot ..................................... 1
20 1-806003 Hairpin, Cotter ....................................... 1
Exmark black touch up spray paint – gloss black.
Completing Kit FRCK includes items 9 through 18 and qty of 3 of item 5.
