Page 4 20253-1-0806
Before you begin: Do not, handle these logs with your bare hands!
Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean
operation of this heater. Sooting and other problems may result if
the logs are not properly and firmly positioned in the appliance.
Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with
this diagram or failure to use only parts specifically approved
with this appliance may result in property damage or personal
injury.

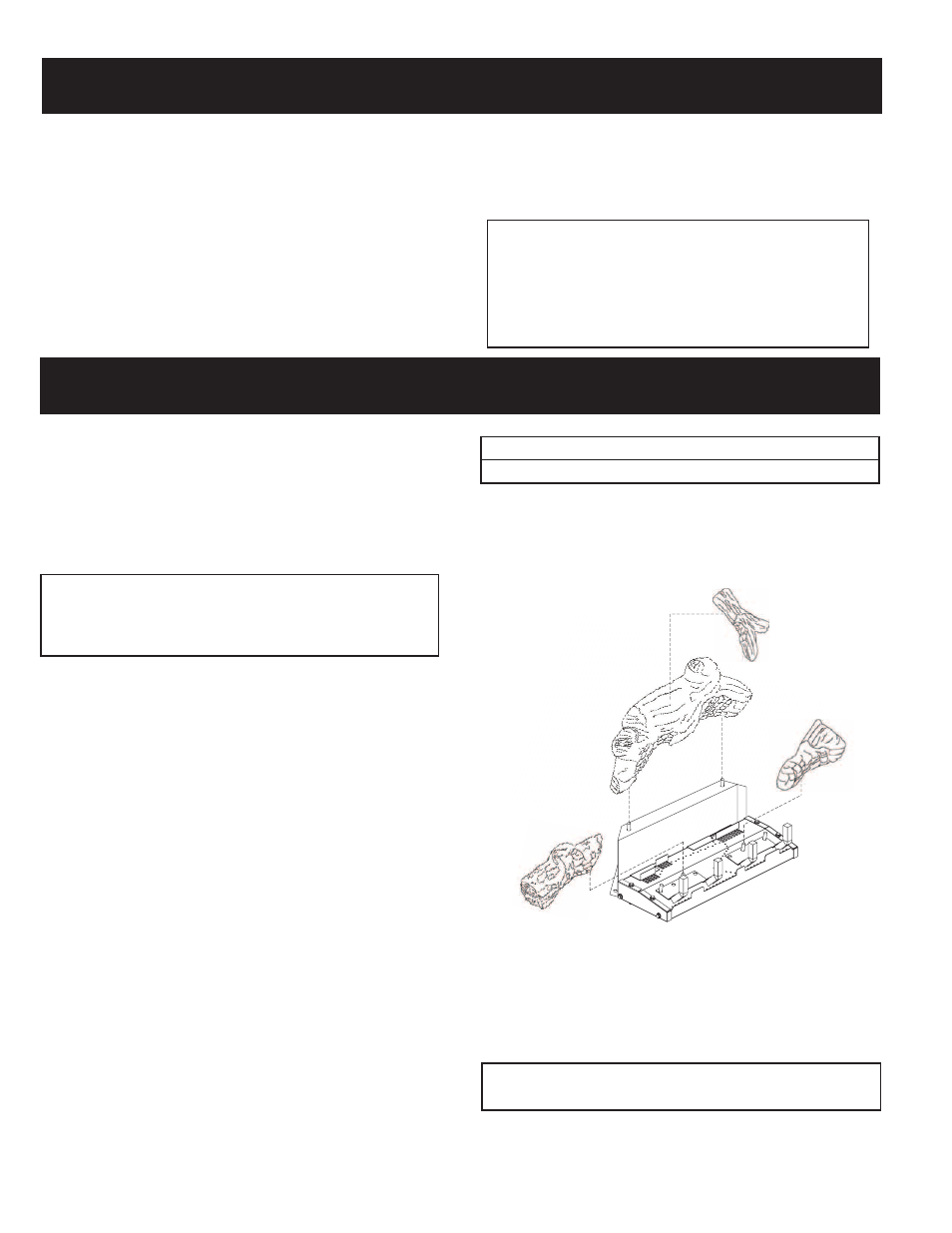

PROPER INSTALLATION SEQUENCE:
VFP(32.36)FP
(Figure 1)
1. Place rear (#1) log onto two (2) pins on rear log support.
2. Place left, front (#2) log onto two (2) left, front pins on burner
pan.
3. Place right, front (#3) log onto two (2) right, front pins on
burner pan.
4. Place Y Branch (#4) onto 2 pins on rear log.
5. Compare the completed log installation with the appropriate
photo from pages 4 and 5. Review previous steps to make
any necessary adjustments.
6. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer to
Page 6 Parts List and Parts View to order logs for your appropriate
model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort
Systems, Inc. Application of excess loose material (glowing
embers) may adversely affect performance of the heater.
WARNING: All previously applied loose material must be
removed prior to reapplication.
GENERAL INFORMATION
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualified agency. The term "qualified
agency" means any individual, firm, corporation, or company that
either in person or through a representative is engaged in and is
responsible for (a) the installation, testing, or replacement of gas
piping or (b) the connection, installation, testing, repair, or servicing
of equipment; that is experienced in such work; that is familiar
with all precautions required, and that has complied with all the
requirements of the authority having jurisdiction.
LOG PLACEMENT
Replacement Loose Material (glowing embers) Part Number
Note: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner.
Log Placement
VFP(32,36)FP
Figure 1
The following WARNING applies when log set is installed onto
an unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1/NFPA54.*
*Available from the American National Standards Institute, Inc. 11 West 42nd
St., New York, N.Y. 10018.
State of Massachusetts: The installation must be made by
a licensed plumber or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural gas-fired supplemental
room heaters shall provide to each purchaser a copy of 527
CMR-30 upon sale of the unit.
1
2
3
4
VFP(32,36)FP 15970
Platinum Bright Embers PE-20-1
