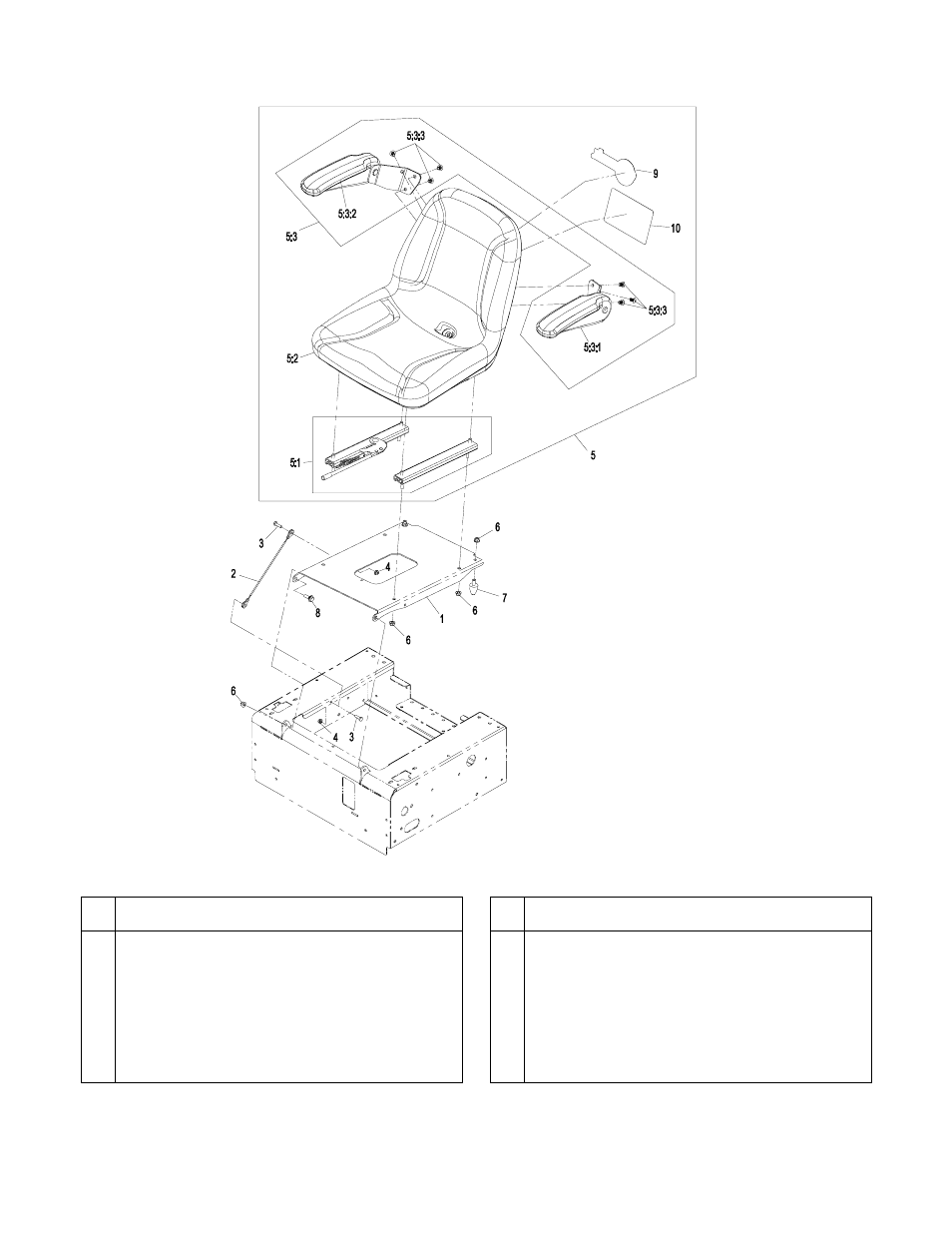

SEAT GROUP
-11-
Item
Part No.
Description
Qty.
1 109-6916 Asm, Seat Plate ..................................... 1
2 109-2628 Cable-Stop, Seat.................................... 1
3 321-5 Screw, HH 1/4-20 x 7/8 .......................... 2
4 104-7201 Nut, Nyloc 1/4-20 Flg ............................. 2
5 109-6399 Asm, Seat W/Decals .............................. 1
5:1 107-1880 Kit, Seat Tracks...................................... 1
5:2 109-6382 Seat ....................................................... 1
5:3 108-6163 Armrest Kit ............................................. 1
Item
Part No.
Description
Qty.
5:3:1 110-6569 LH Armrest Kit ....................................... 1
5:3:2 110-6570 RH Armrest Kit....................................... 1
5:3:3 108-6179 Screw, Button Head 5/16-18 x 1/2 ......... 6
6 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 8
7 103-9376 Bumper-Seat ......................................... 2
8 27-0410 Screw, Shoulder 5/16-18 x 1 Sp............. 2
9 103-3999 Decal, Exmark Logo............................... 1
10 109-6016 Decal, Service Aid ................................. 1
