Electrolux Z2312 User Manual
Page 5
5

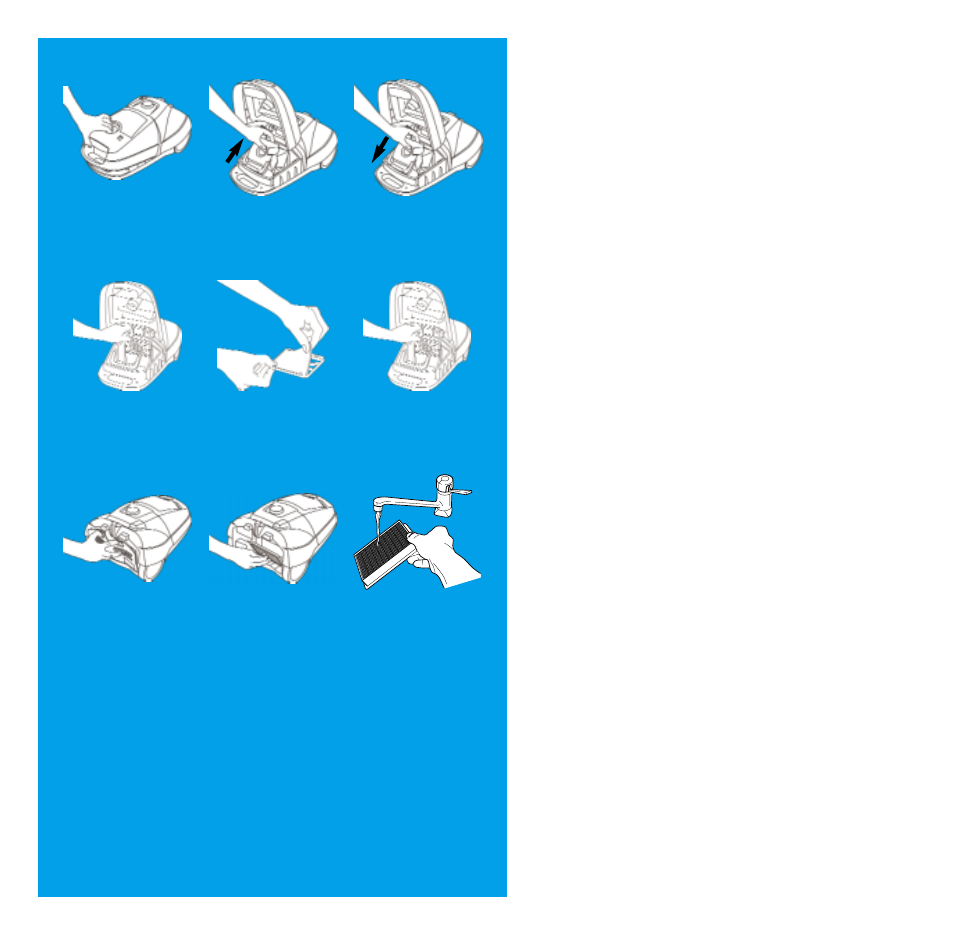

REPLACING THE DUSTBAG
Replace the dustbag as soon as the indicator becomes fully
illuminated, when the cleaner is operating at maximum
power and the nozzle is raised from the floor.
1
Remove the hose and open the dustbag cover.
2
Pull the cardboard holder to remove the dustbag.
3
Insert a new dustbag by pushing the cardboard holder
straight down in its tracks. Close the cover.
Note: Replace the dustbag even if it is not full (it may be
blocked). Also replace after using carpet cleaning powder.
Use only Electrolux original dustbags.
Dustbag reference number: E51
Replacing the motor filter
(The motor filter should be cleaned approximately every three
months, or when required for more frequent use).
4
Remove the old filter with grill.
5
Take the filter out of the grill and insert a new one in grill.
6
Replace the filter with grill and close the cover.
Filter reference number: EF51.
Cleaning the Microfilter (Z2306, Z2312)
(The exhaust filter should be replaced approximately every 4
months).
7-8
Open the filter grill to remove the exhaust filter.
9
Rinse the filter under tap water and dry it completely.
8-7
Replace the filter with grill and close the filter grill.
Changing the HEPA filter (Z2315)
(The exhaust filter should be replaced approximately every 4
months).
7-8
Open the filter grill to remove the exhaust filter.
8-7
Replace it with a new one and put it back into the cleaner.
HEPA filter reference number: EF51b.
Note: Do not use cleaning agents and avoid touching the delicate
filter surface.
1
2
3
4
5
6
7
8
9
