17

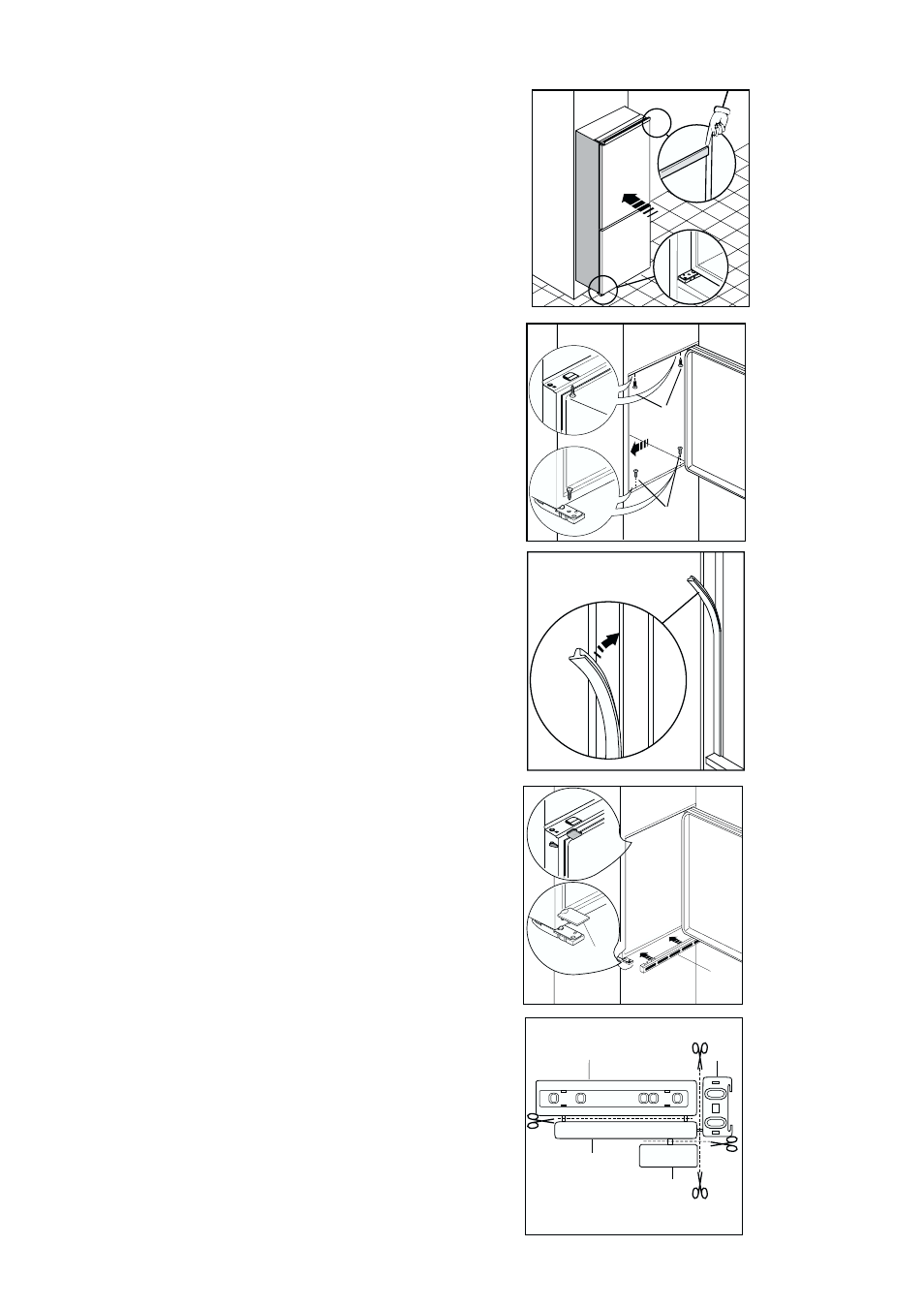

Fit the appliance in the niche by making sure that it
stands against the interior surface of the unit on the
side where the door hinges of the appliances are
fitted. Insert the appliance until the upper strip butts
up against the unit (1) and make sure that the lower
hinge is in line with the surface of the unit (2).
D023
1
2
D724
Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
I
P
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
(I = short) (P = long)
Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge cover (E) into
position.
PR266
Ha Hb
Hc
Hd
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
B
E
C
D
