10
Installation, cont’d
PCM 240 Projector Ceiling Mount • Installation 11 PCM 240 Projector Ceiling Mount • Specifications
Specifications, Part #’s and Dimensions
Attaching a projector mounting pole
The PCM 240 comes with a threaded pipe adapter installed
in the adapter plate. This allows for an Extron PMP projector
mounting pole (supplied separately) to be fitted.
To fit the mounting pole do the following:
1.
Screw the pole into the adapter.
2. Secure the pole in place with the locking screw on the pipe
adapter/adapter plate assembly. Cabling for the projector
may be accessed through the convenient cut-out in the
PMP pole.
Other optional accessories may also be installed at this point.
These include Extron’s PMK 350, a low profile two product
mounting kit, and the UPB 25, a Universal Projector Mounting
Bracket suitable for most projectors weighing up to 25 pounds.
See page 3 for more details. Follow the installation instructions
supplied with the accessory.
W.
The combined weight of the installation MUST
NOT exceed a maximum of 50 pounds (23 kgs).
Attaching Extron devices and electrical boxes
The PCM 240 comes with two cutout holes where a RACO
box (#8471), an MK box, or standard UL electrical boxes can
be inserted. Mounting holes for Extron 3" deep, ¼ rack wide
devices are also included (see figure 9 for all location). Follow
any mounting instructions supplied with the devices or boxes.
C
Using flex conduit is recommended when installing
any power wiring
1-gang and 2-gang
Electrical Box Cutouts
3" Deep, ¼ Rack
Device Mounting Holes
Raco and MK Box cutout

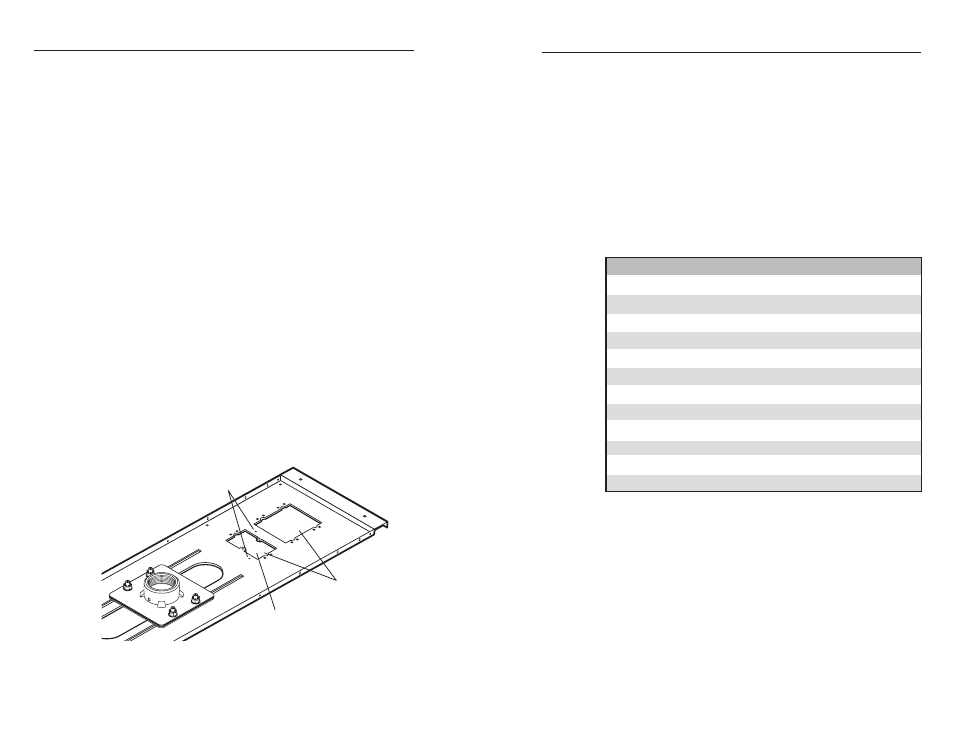

Figure 9 — Locations for device and electrical box
installation on the PCM 240
General
Rack mount .................................... No, but ceiling mount
Enclosure type ............................... 14 gauge steel/powder coated white
Plate dimensions ........................... 25.8" L x 8.0" W x 1.2" D
65.5 cm L x 20.3 cm W x 2.9 cm D
Shipping weight ............................ 9 lbs (4.1 kg)
Vibration ......................................... ISTA 1A in carton
(International Safe Transit Association)
Warranty ......................................... 3 years parts and labor
Parts and accessories
PCM 240 kit contents
Item Quantity
Projector Mounting Platform 1
Pipe adapter 1
Pipe adapter plate 1
Turnbuckles 4
Anchors, for concrete ceiling (4) and safety cable (1) 5
Eye screws, for wood joists (4) and safety cable (1)
5
Tie wire, 60 ft 1
Safety cable, 15 ft 1
Cable clamps, for safety cable 2
Locking screws, for T-bar (4) 4
Anti-vibration adhesive pads 4
Installation manual 1
See page 12 for Optional accessories
