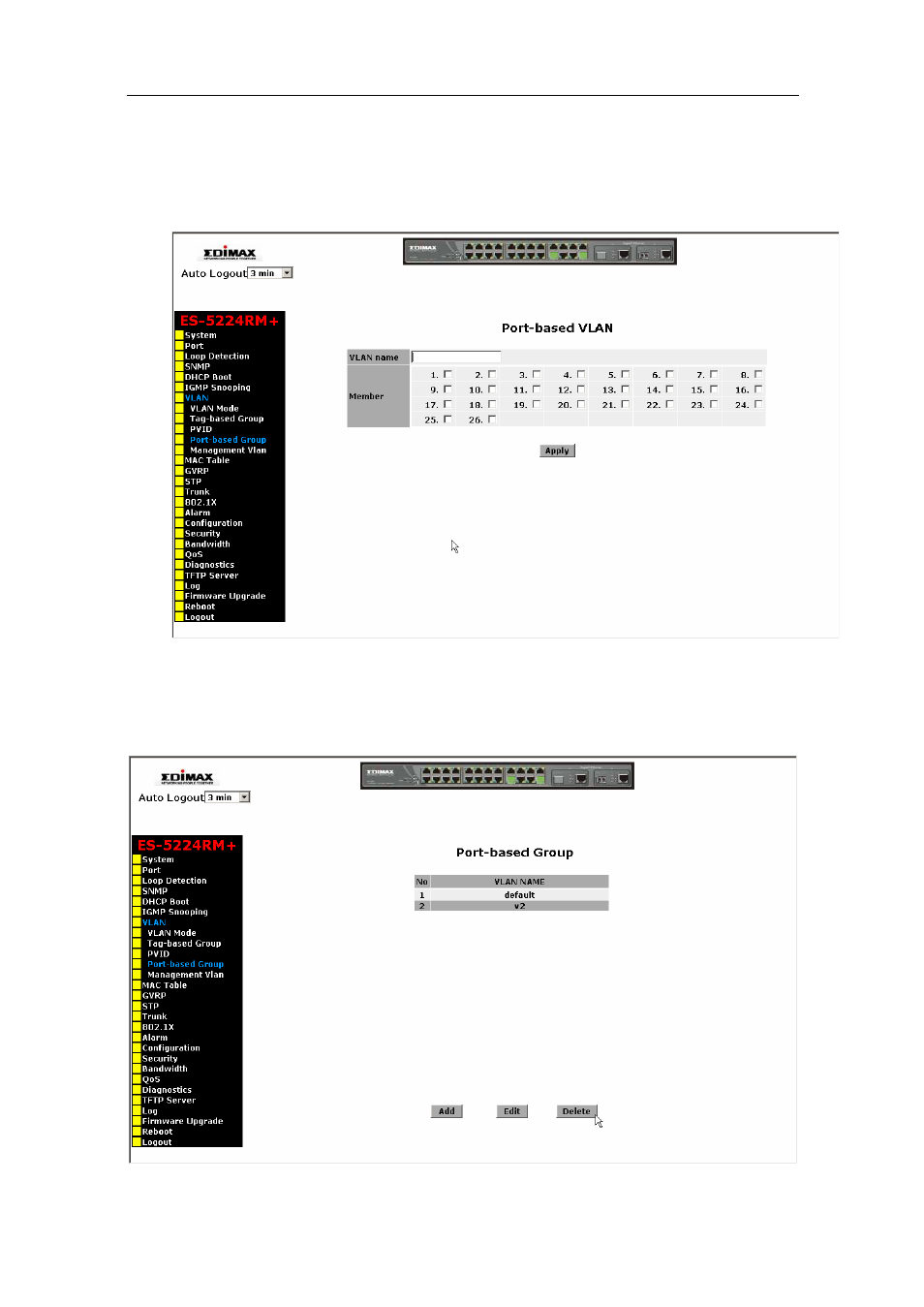

Add Group:
Create a new Port-based VLAN. Input the VLAN name and choose the
member by ticking the check box beside the port No., then, press the
button to have the setting taken effect.
Fig. 3-25
Delete Group:
Just press the button to remove the selected group entry from
the Port-based group table.
Fig. 3-26
