Connection
09
Connect the component with RCA to RCA cords. Make sure
to connect :
white plug to white jack(L:left)
red plug to red jack(R:right)
I f t he CD player or t ape player has digit al out put s,
connect the component with coaxial cables or optical
cables.
DI GI TAL I N to DI GI TAL OUT(CD, etc.)
DI GI TAL OUT to DI GI TAL I N( MD, etc.)
< Connect to any one of the DI GI TAL I N terminals.
< When using DI GI TAL OPTI CAL I N terminals, remove the
caps from the terminals. When you do not use them,
leave the caps in place.
< To record digitally, connect the source(CD player, etc.)
to DI GI TAL I N and the recorder(MD, etc.) to DI GI TAL
OUT.

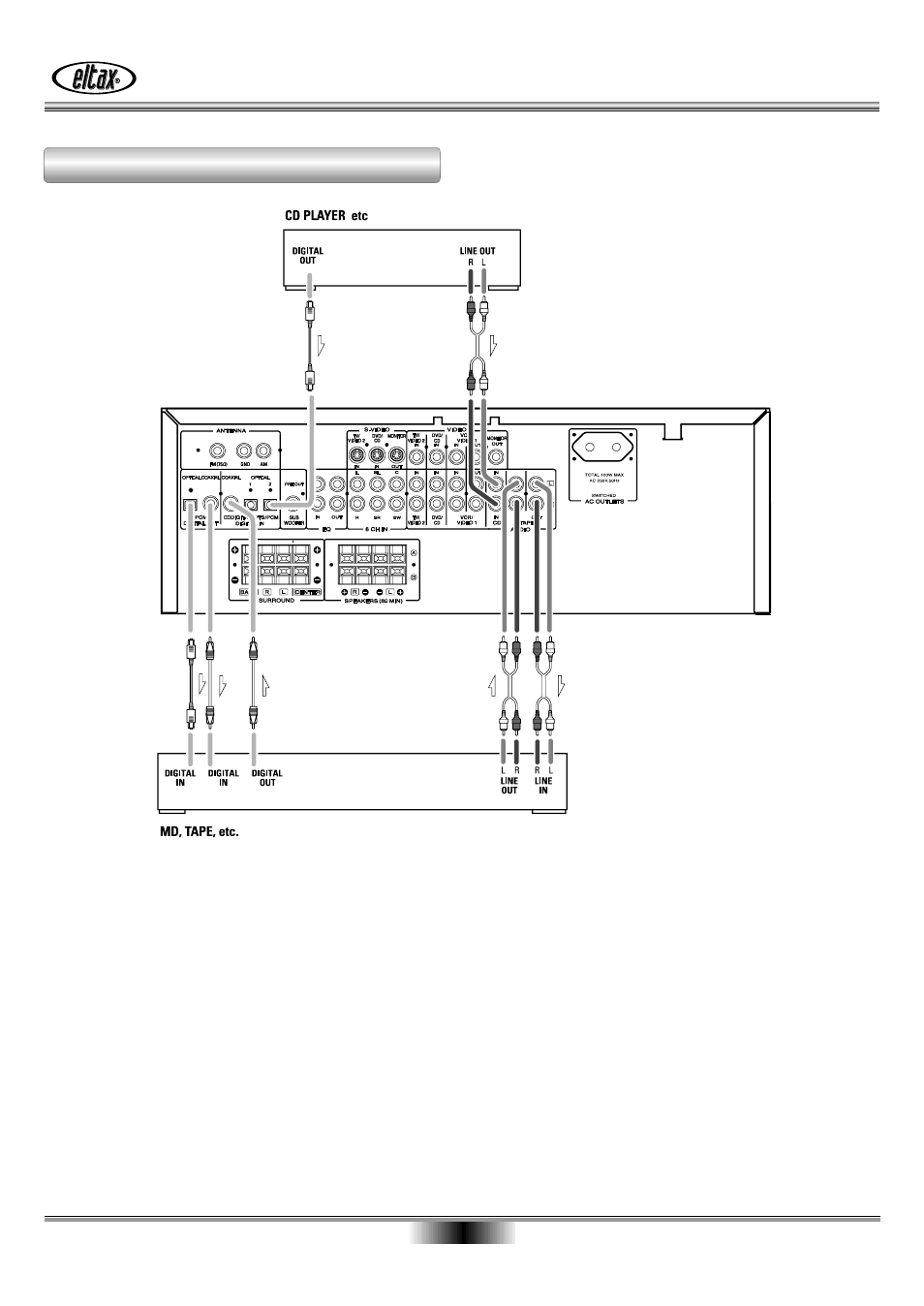

DI GI TAL I N/ OUT terminals
CD, TAPE jacks
CD, TAPE Jacks
