Elite Screens Insta-DEM - Manual (Page 4)

4
Rev.040611‐AS
www.elitescreens.com [email protected]

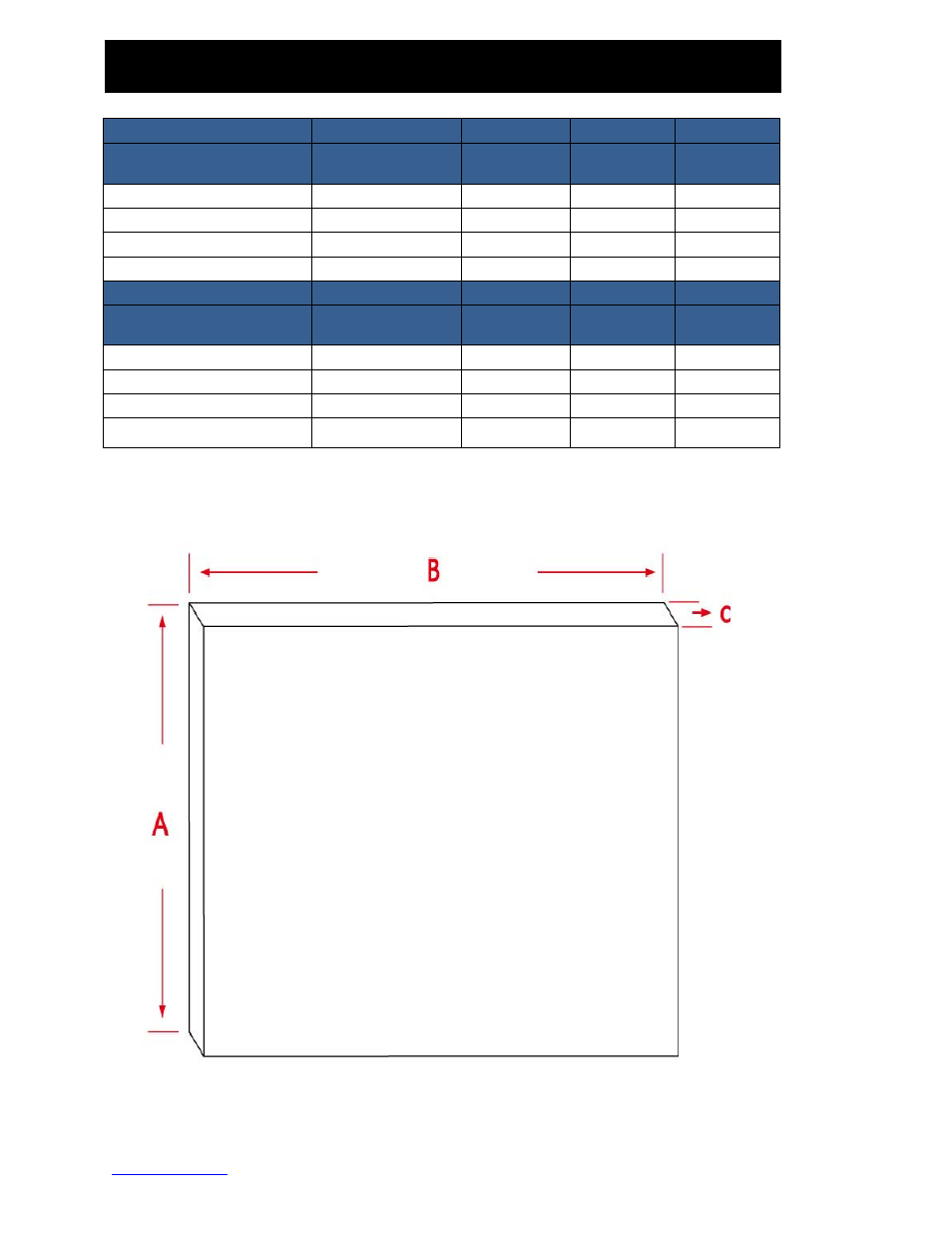

Measurements are intended as a reference only and are subject to change without notice. NOTE: Data Error may be ±1"
Unit : mm
Model Nominal Diagonal
View Height
(A)
View Width
(B)
Thickness
(C)
iWB52VWM 52"(4:3) 788 1050 0.65
iWB70VWM 70"(4:3) 1050 1422 0.65
iWB78XWM 78"(16:10) 1050 1680 0.65
iWB85HWM 85"(16:9) 1050 1866 0.65
Unit : inch
Model Nominal Diagonal
View Height
(A)
View Width
(B)
Thickness
(C)
iWB52VWM 52"(4:3) 31.0 41.3 0.0255
iWB70VWM 70"(4:3) 42.0 56.0 0.0255
iWB78XWM 78"(16:10) 41.3 66.1 0.0255
iWB85HWM 85"(16:9) 41.3 73.5 0.0255
Insta-DEM Dimension Table
