The Extron DA 6 YUV A is a one input, six output component and
digital audio distribution amplifier for HDTV and DVD signal
distribution. It accepts and distributes RGBS, RGsB, RsGsBs,
HDTV/component video, and digital audio on female BNC connectors.
It also offers DIP switches for adjusting video gain and peaking, as well
as for selecting input AC or DC coupling. With 350 MHz (-3dB) video
bandwidth, the DA 6 YUV A is perfect for maintaining signal integrity
over long cable runs.
■ 350 MHz (-3dB) video bandwidth, fully loaded
■ Compatible with RGBS or RGsB, RsGsBs, HDTV/component video,
S-video, composite video, and digital audio
■ Gain/peaking adjustments
■ AC or DC coupling per input
■ LED power indicator
■ 1U high, full rack width rugged, metal enclosure
■ Internal international power supply
D
ESCRIPTION
F
EATURES
S
PECIFICATIONS
S
PECIFICATIONS
(C
ONT
.)
VIDEO
Gain ...................................................... Unity (0.7V), or (0.8V) 100%, switch-selectable
Peaking.................................................. 0dB or +6dB at 100 MHz, switch-selectable
Bandwidth ............................................ 350 MHz (-3dB), fully loaded
Differential phase error .......................... <1.0º, 0 to 100 MHz
Differential gain error ............................ <1.0%, 0 to 100 MHz
VIDEO INPUT
Number/signal type .............................. 1 RGBS (only when the digital audio channel is
not used), RGsB, RsGsBs, component video,
S-video, composite video
Connectors............................................ 3 or 4 BNC female (the fourth can be used for
digital audio input instead of video sync)
Minimum/maximum levels .................... Analog, 0.3V p-p to 1.5V p-p with no offset at
unity gain
Impedance ............................................ 75 ohms
Horizontal frequency ............................ 15 kHz to 180 kHz
Vertical frequency .................................. 15 Hz to 170 Hz
Return loss ............................................ -38.5dB @ 5 MHz
Maximum DC offset .............................. 5.0V (in AC coupling mode)
AC/DC coupling .................................... Yes, switch-selectable
VIDEO OUTPUT
Number/signal type .............................. 6 RGBS (only when the digital audio channel is
not used), RGsB, component video, S-video,
composite video
Connectors............................................ 6 x 4 BNC female
Minimum/maximum level(s).................. 0.3V p-p to 1.5V p-p
Impedance ............................................ 75 ohms
Return loss ............................................ -44dB @ 5 MHz
DC offset .............................................. ±5mV maximum with input at 0 offset
Extron Electronics, USA
1230 South Lewis Street
Anaheim,
CA 92805
800.633.9876 714.491.1500
FAX 714.491.1517
Extron Electronics, Europe
Beeldschermweg 6
C , 3821 AH Amersfoort
The Netherlands
+800.3987.6673 +31.33.453.4040
FAX +31.33.453.4050
Extron Electronics, Asia
135 Joo Seng Rd. #04-01
PM Industrial Bldg.
Singapore 368363
+65.6383.4400
FAX +65.6383.4664
Extron Electronics, Japan
Daisan DMJ Bldg. 6F, 3-9-1 Kudan Minami
Chiyoda-ku, Tokyo 102-0074
Japan
+81.3.3511.7655 FAX +81.3.3511.7656
02-05
68-672-01
REV. A
Copyright © 2002 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
SYNC
Input/output type.................................. RGBS (only when the digital audio channel
is not used), RGsB, RsGsBs
Input level ............................................ Analog or TTL, 0.5V to 5V p-p
Output level .......................................... TTL, 5V p-p (not terminated)
Input impedance .................................. 510 ohms
Output impedance ................................ 75 ohms
Max. input voltage ................................ 5.0V p-p
Max. propagation delay ........................ 35 ns
Max. rise/fall time.................................. 4 ns
Polarity .................................................. Positive or negative (follows input)
DIGITAL AUDIO
NOTE: Digital audio input/output is available when RGBS is not used as the video input
signal.
Sampling rates ...................................... 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
DIGITAL AUDIO INPUT
Number/signal type .............................. 1 Dolby Digital, DTS, AES/EBU
Connectors............................................ 1 BNC female
Impedance ............................................ 510 ohms
Input level ............................................ 0.5V p-p to 5V p-p
Max. input voltage ................................ 5V p-p
DIGITAL AUDIO OUTPUT
Number/signal type .............................. 6 Dolby Digital, DTS, AES/EBU
Connectors............................................ 6 BNC female
Impedance ............................................ 75 ohms
Output level .......................................... 2.5V p-p, 75 ohms terminated
Max. propagation delay ........................ 35 ns
Max. rise/fall time.................................. 4 ns
Polarity .................................................. Positive or negative (follows input)
GENERAL
Power .................................................... 100VAC to 240VAC, 50/60 Hz, 10 watts,
internal, autoswitchable
Rack mount .......................................... Yes, with included rack ears
Enclosure type ...................................... Metal
Enclosure dimensions ............................ 1.75" H x 17.5" W x 8.5" D (1U high, full rack
width) 4.4 cm H x 44.4 cm W x 24.1 cm D
Product weight...................................... 6 lbs (2.7 kg)
Shipping weight .................................. 12 lbs (5.4 kg)
Listings/Compliances ............................ UL, CUL, CE, FCC Class A, VCCI, AS/NZS, ICES
Warranty .............................................. 3 years parts and labor
Model Part Numbers
DA6 YUV A .................................... 60-494-01
1U rack shelf .................................. 60-190-01

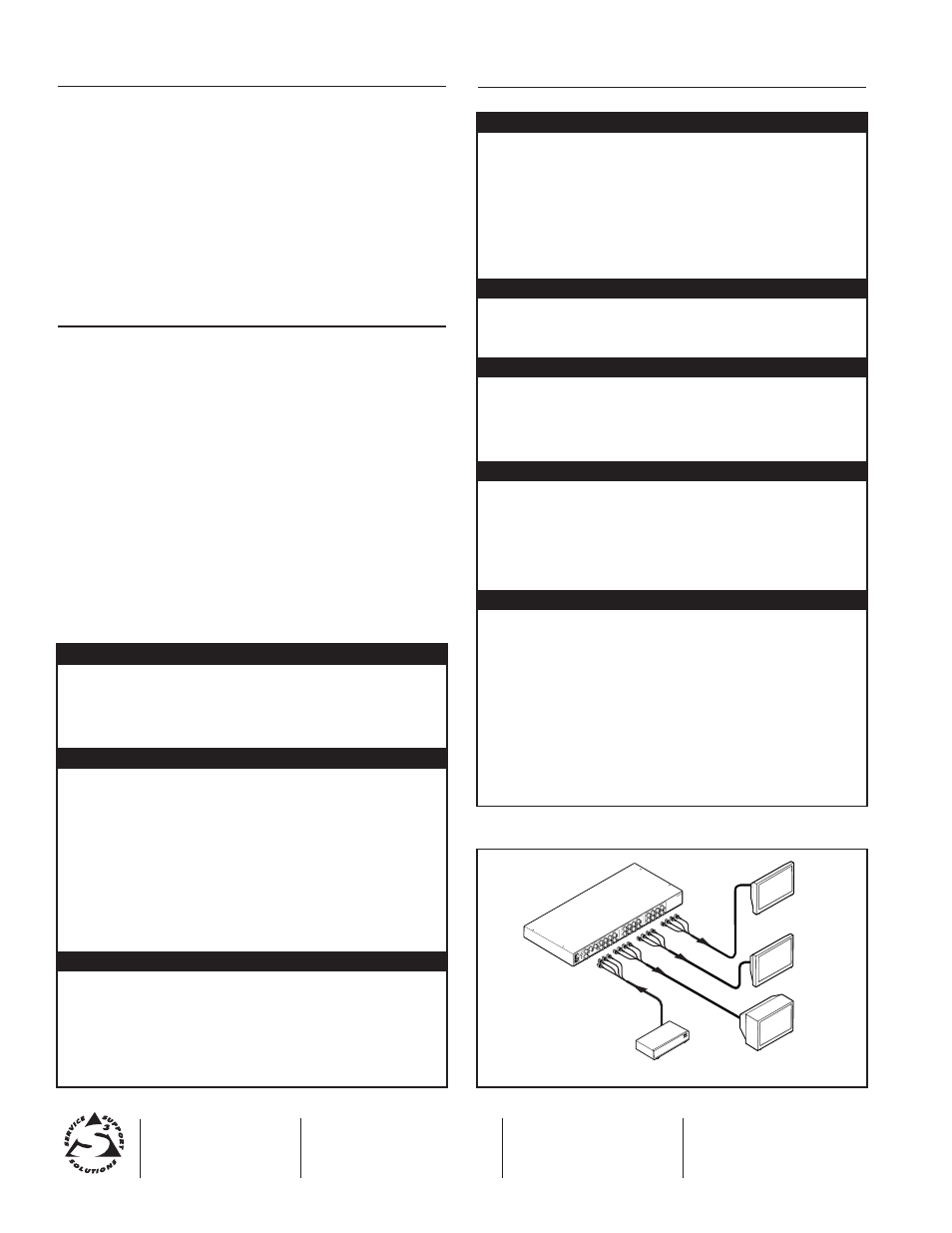

6 Outputs
Extron
DA6 YUV A
Distribution
Amplifier
HDTV Plasma
HDTV Receiver
HDTV Large
Screen Monitor
IN PU T
Y
DIGIT AL AU DIO
R-Y B-Y
10 0-2 40 V 1.3 A
50 -60 Hz
DA 6 Y UV A
OU TP UT 1
OU TP UT 2
DIGIT AL AUD IO
DIG ITAL AUDIO Y R-Y B-Y
Y R-Y B-Y
DIGIT AL AU DIO
DIG ITAL AUDIO Y R-Y B-Y
Y R-Y B-Y
OU TP UT 3
OU TP UT 4
DIG ITA L AUDIO
DIG ITA L AUDIO Y R-Y B-Y
Y R- Y B-Y
OU TP UT 5
OU TP UT 6
A
PPLICATION
D
IAGRAM
