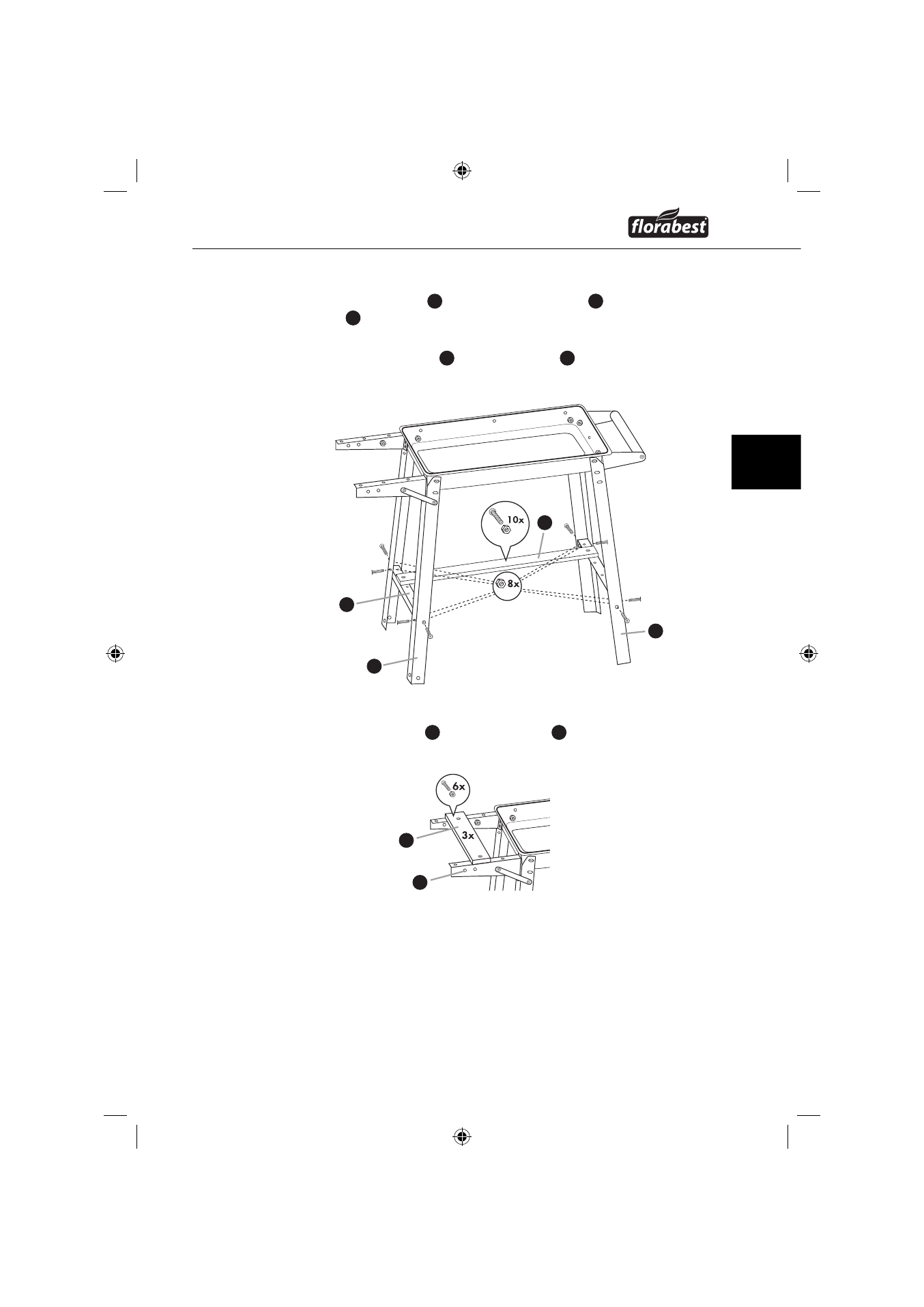

Step 3

♦

Place the cross braces

10

between the wheel braces

14

and the stand

braces

9

with the 5 holes facing upwards. Bolt these together using

M6x12 bolts and M6 nuts.

♦

Attach the fi ve shelf slats

11

to the cross braces

10

. Bolt these together

using M5x16 bolts and M5 nuts.

Step 4

♦

Fit the three shelf slats

17

to the shelf brackets

15

using M5x16 bolts and

M5 nuts.

10

14

11

9

17

15
