OPERATING INSTRUCTIONS
BASIC ELEMENTS OF A PRESSURE WASHER
High Pressure Pump (located inside the shroud): Increases the pressure of the
water supply.
Engine: Drives the high pressure pump.
High Pressure Hose: Carries the pressurized water from the pump to the gun
and wand.
Spray Gun: Connects with wand to control water flow rate, direction, and
pressure.
Multi-Adjustable Spray Wand: Has a spray nozzle which adjusts from a pencil
stream (0°) to a wide angle fan spray (40°). The spray can be adjusted by twisting
the nozzle clockwise and/or counterclockwise. Also, the high and low pressure
settings can be controlled by moving the nozzle in and out. See Operation
section. See How To Use Wand paragraph in this section.
Chemical Hose: Feeds cleaning agents into the pump to mix with the
pressurized water. See How To Apply Chemicals/Cleaning Solvents in Operation
section of this manual.

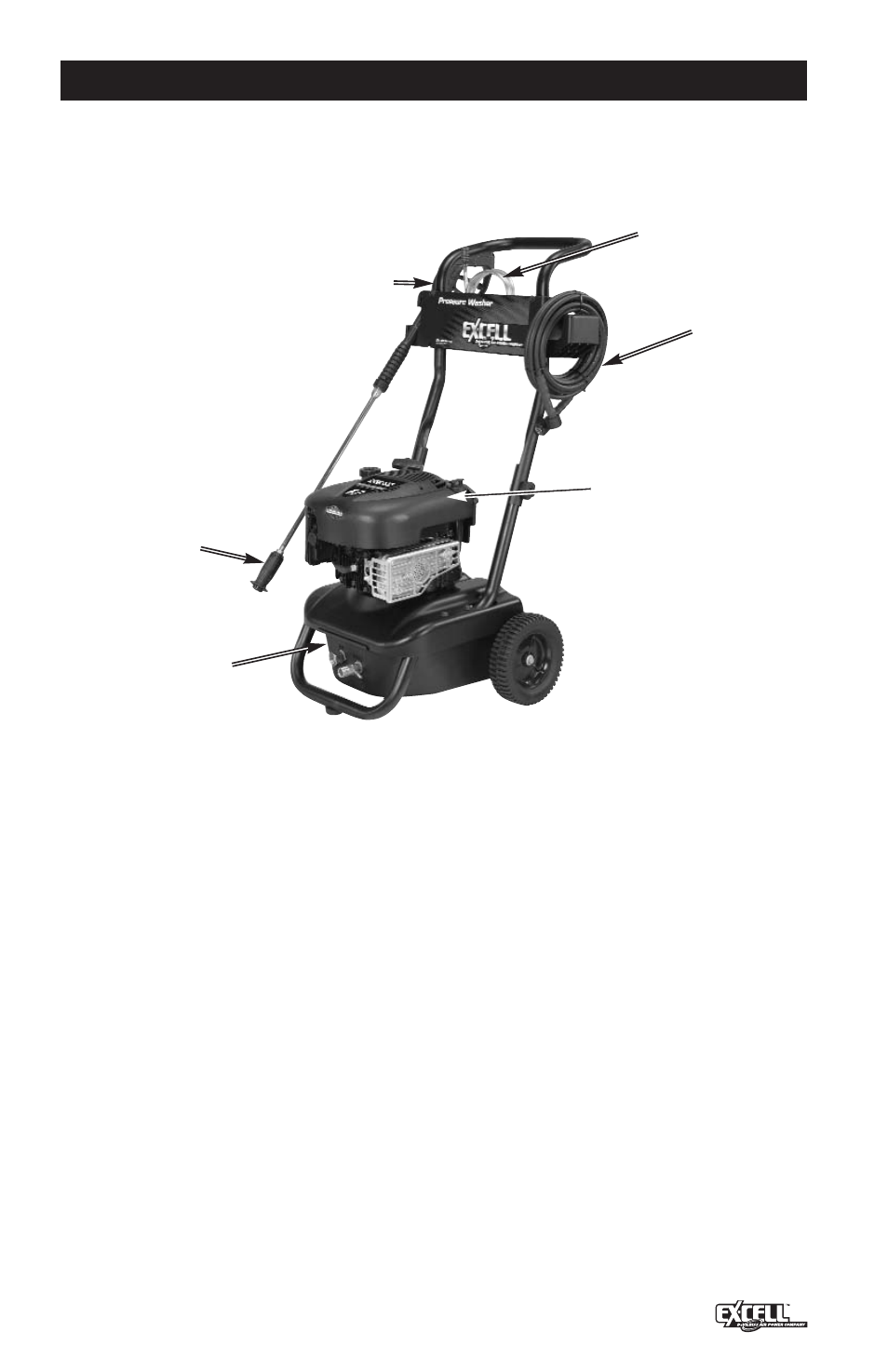

READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Engine
High
Pressure
Hose
Spray
Gun
Multi-
Adjustable
Spray Wand
Chemical
Hose
High
Pressure
Pump
