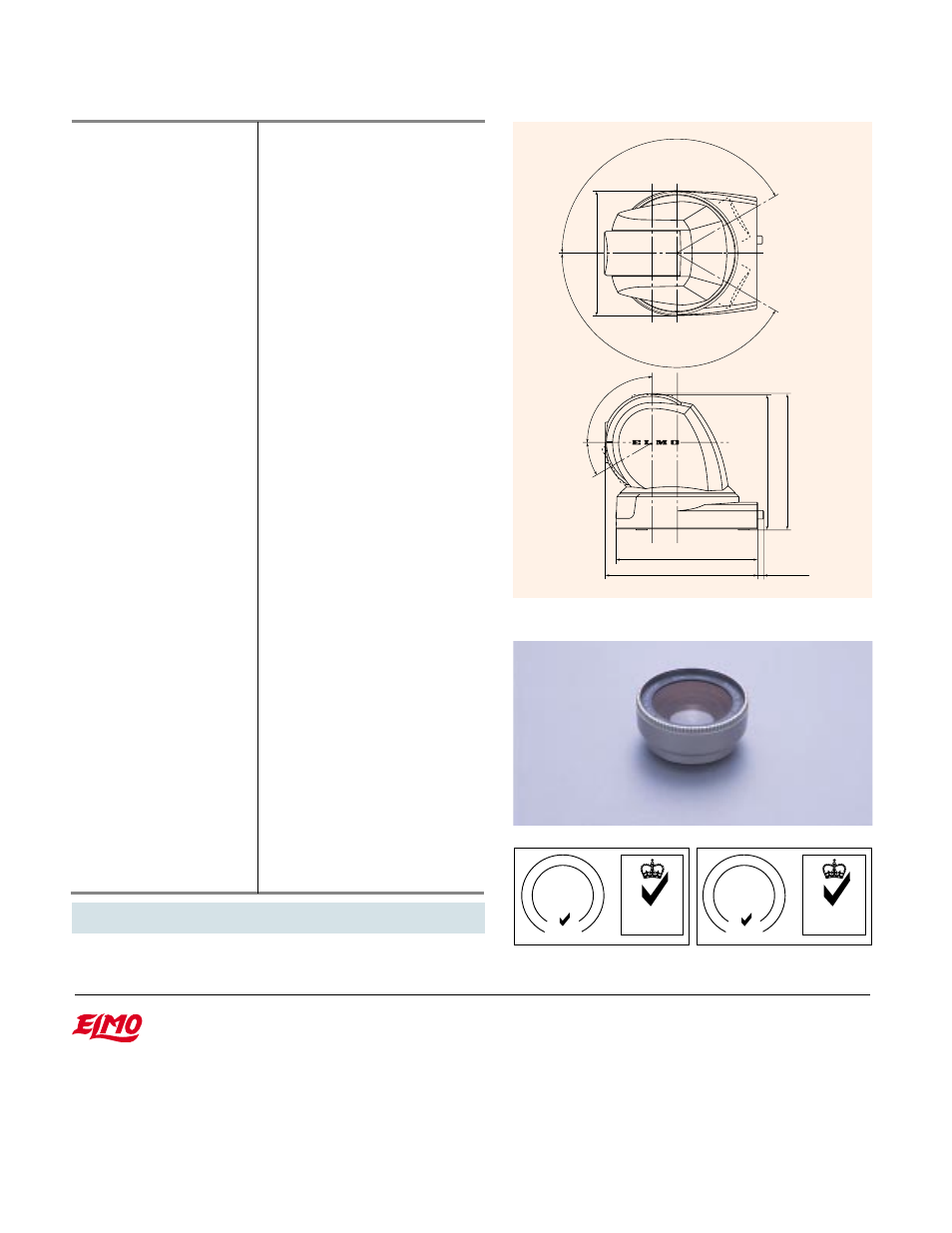

All dimensions in mm (inches)
124
( 4.9"
)
150˚
150˚
90˚
30˚
142 (5.6")
153 (6.0") 6 (0.2")
134.4
( 5.3"
)
136
( 5.4"
)
SPECIFICATIONS (PTC-100S)
TV system
Pick-up device
Total picture element
Sync. system
Resolution (horizontal)
Resolution (vertical)
S/N ratio
Minimum illumination
Lens
Zoom
Field of view (horizontal)
Lens filter diameter
Video output
S-video output
Communications
CAMERA CONTROLS
Backlight compensation
Iris selection
White balance
Focus
Picture adjustment
PAN/TILT CONTROLS
Pan (H)
Tilt (V)
Left & right direction change
Homing
Pan/tilt reset button
Speed control
Diagonal movement
OTHER CONTROLS
Preset
Remote control for
multiple cameras
Remote control for
power ON/OFF
Power save mode
OSD menu
RS-232C daisy chain connection
Power requirement
Dimensions (W x D x H)
Weight
Supplied accessories
NTSC system
1/4-inch IT color CCD
410,000 pixels
Internal
More than 460 TV lines
More than 350 TV lines
More than 49 dB
2 lx
22x powered zoom, f=4.0 – 88.0 mm, F1.6 – 3.8
22x powered optical zoom
47.5 ° (*) – 2.3 °
37 mm, pitch=0.75 mm
RCA x 1
Mini DIN 4-pin x 1
RS-232C mini DIN 8-pin x 2
ON/OFF
Auto/manual
ATW/push-set/manual
Full-auto/manual
Color balance, AGC gain, Edge enhancement, etc.
+/- 150 ° (300 ° in total, max. speed 90 ° /s)
-30 ° to 90 ° (120 ° in total, max. speed 90 ° /s)
Provided
Provided
Provided
Auto & manual (8 speeds)
Enabled at preset mode
6 positions
Max. 6 PTC-100S/PTC-110R cameras
Provided
Provided
Provided (camera/preset selection)
Max. 7 PTC-100S/PTC-110R cameras
12V DC from supplied AC adapter
124 x 153 x 136 mm (4.9" x 6.0" x 5.4")
Approx. 790 g (1.7 lbs)
IR remote controller (w/batteries), AC adapter,
RCA cable, Instruction manual
The PTC-110R is a ceiling-mount model with the same features as the PTC-100S.
A standard metal fitting for ceiling mounting is supplied with the PTC-110R.
*The wide-angle view will be approx. 65 ° when an optionally available wide conversion lens is attached.
Weight and dimensions are approximate. Design and specifications are subject to change without prior notice.
RS-232C protocol and sample software are available at our website:
www.elmousa.com.
ELMO CO., LTD.(Head Office and Factory)
,
s QMS/EMS has been registered to
ISO 9001 & ISO 14001.
U K A S
ENVIRONMENTAL
MANAGEMENT
005
14001 E
N
V
IR
O
N M
E N T A L
S
Y
S
T
E
M
SGS
ISO
U K A S
QUALITY
MANAGEMENT
005
ISO
9001 Q
U
A
L
I T
Y
A S S U R E
D
F
IR
M
SGS
PROFILE (PTC-100S)
PTC-100S
/PTC-110R
PAN/TILT/ZOOM Communication Camera
OPTION
Wide conversion lens WC01 (for PTC-100S)
