Assembly
FGW 84 A1
GB
MT

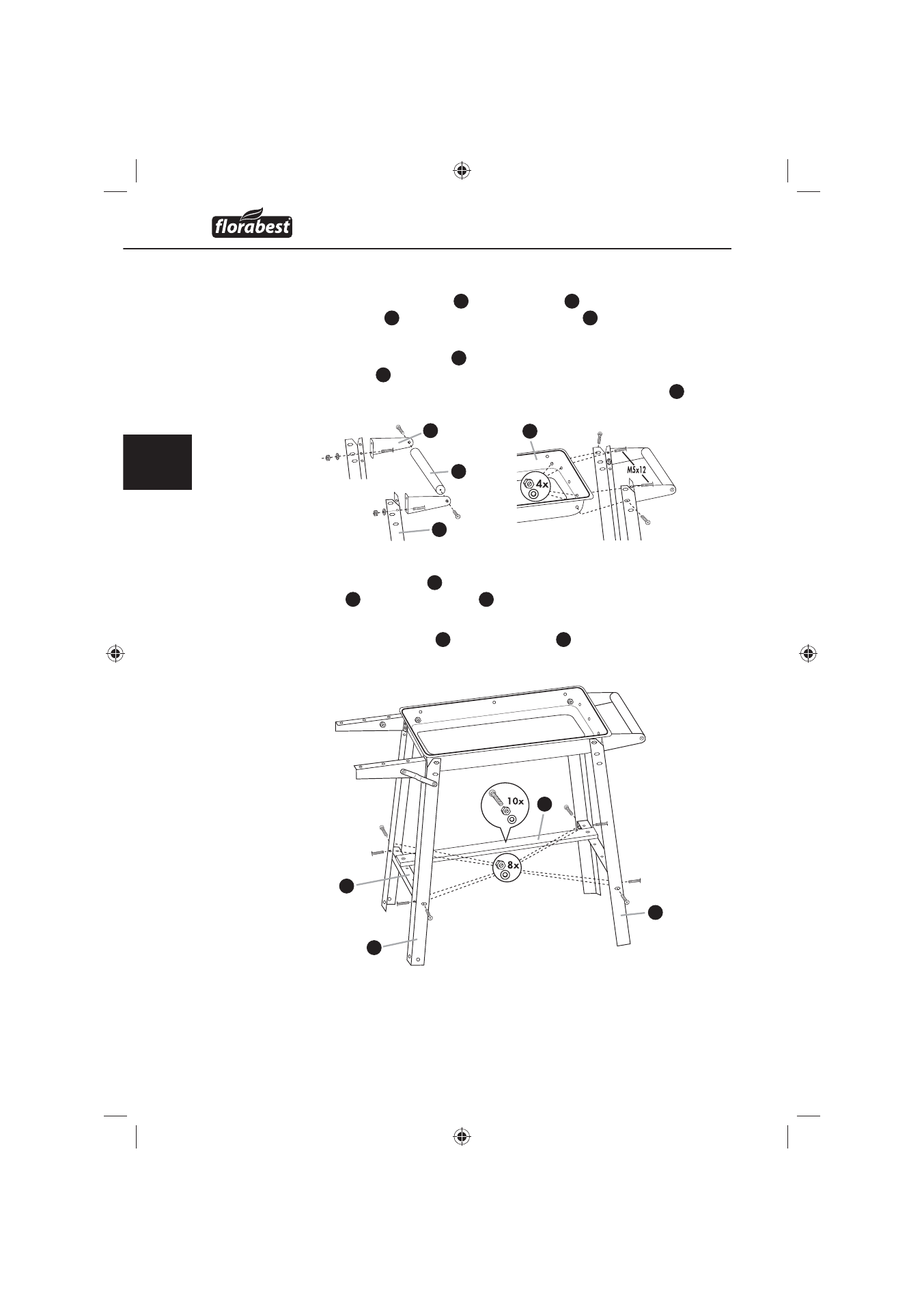

Step 2
Assemble the handle holder
♦
8
and stand braces
9
as described in step 1.
Fix the handle
7
between the short handle holders
8
and then secure
them by means of the wood screws Ø 4 x 10.
Assemble the stand braces
♦
9
, with the assembled handle, to the right of
the fi re bowl
6
by means of M5 x 12 screws, washers Ø 5.4, M5x10
screws and nuts M5. For this, use the upper hole in the stand braces
9
.
M5x10
M5x10
Step 3
Place the cross braces
♦
10
, with the 5 holes upwards, between the wheel
braces
14
and the stand braces
9
. Screw these together by means of the
washers Ø 5.4, M5 x 10 screws and nuts M5.
Fix the fi ve storage slats
♦
11
to the cross braces
10
. Screw these together by
means of the washers Ø 5.4, M5x12 screws and nuts M5.
8
7
9
6
10
14
11
9
