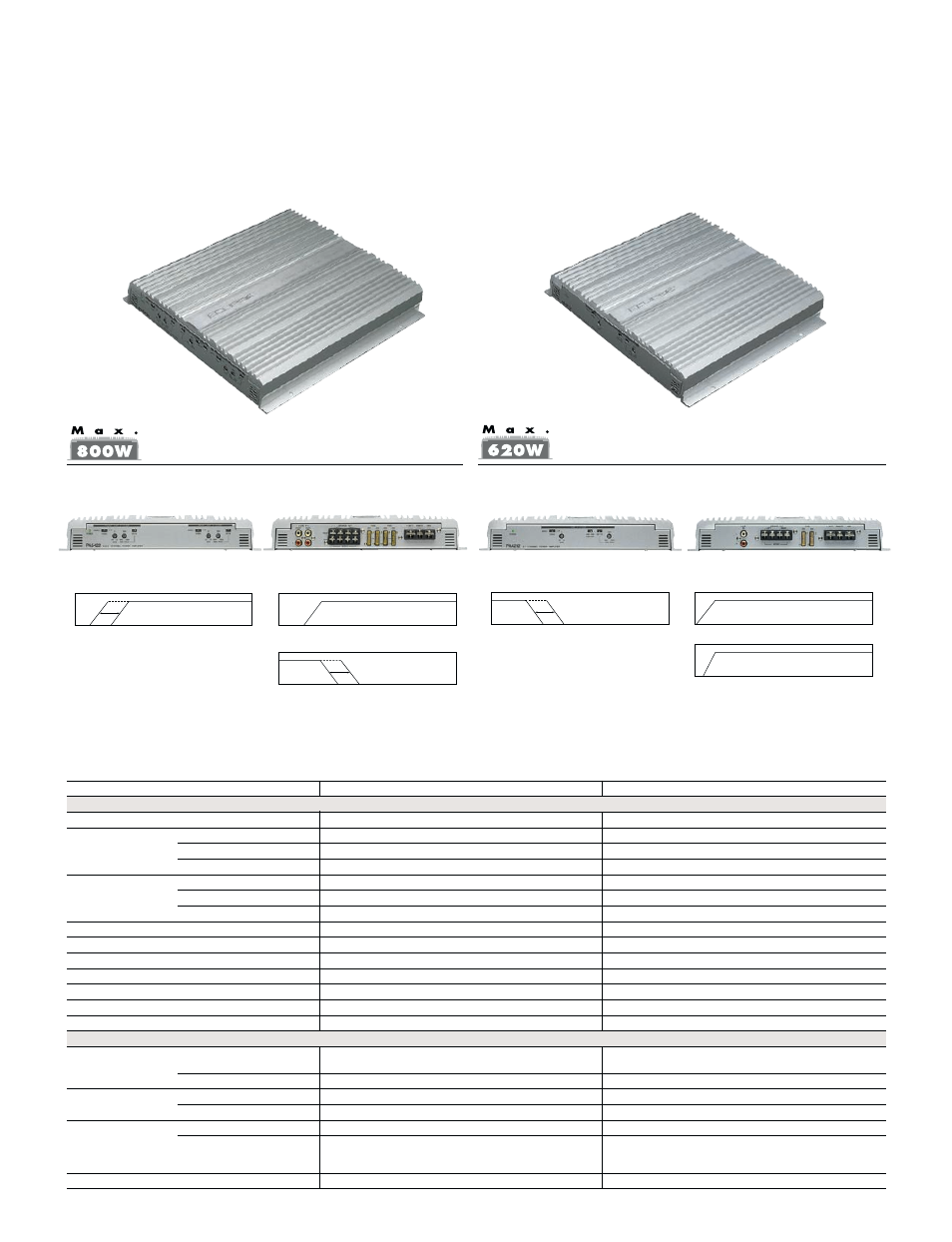

Specifications
PA5422 PA4212
13.8V POWER SUPPLY
Max. Power Output 200W × 4ch (2Ω) 310W × 2ch (2Ω)
2 Ω 120W × 4ch 200W × 2ch
Power Output 4 Ω 85W × 4ch 130W × 2ch
4 Ω bridged 240W × 2ch 400W × 1ch
THD @ Rated Power @ 2 Ω stereo 0.008% 0.008%
@ 4 Ω stereo 0.004% 0.004%
@ 4 Ω bridged 0.008% 0.008%
Signal to Noise 105dB 105dB
Freq. Response +0, –0.7 +0, –0.7
Crosstalk –75dB –75dB
Slew Rate 10V µs 10V µs
Damping Factor @ 60Hz >200 >200
Input Sensitivity 0.2 ~ 8V 0.2 ~ 8V
Max. Current Consumption (4 Ω) 60 amps 50 amps
CHANNELFLEX CROSSOVER
Amp Crossover High Pass 12dB/octave
50 ~ 200Hz (Front)
—
120Hz (Rear)
Low Pass 12dB/octave 50 ~ 200Hz 50 ~ 200Hz
Pre-Out Crossover High Pass 12dB/octave — —
Low Pass 12dB/octave — —
Subsonic Filter Freq. Range N/A 20Hz (Fix)
12dB/octave
Slope — 24dB/octave
(Switchable)
Dimensions (W × H × D) 13.32˝ Ч 2.05˝ Ч 11.85˝ 11.32˝ Ч 2.05˝ Ч 11.85˝
Designed, engineered and made in the U.S.A.
20k 50 200
HIGH PASS FRONT
AMPLIFER CROSSOVER OPTION :
–18
–12
– 6
0
20k 120
HIGH PASS REAR
–18
–12
– 6
0
20k 50 200
LOW PASS REAR
–18
–12
– 6
0
PA5422
4/3/2 Channel Power Amplifier
with ChannelFlex Crossover
PA4212
2/1 Channel Power Amplifier
with ChannelFlex Crossover plus Subsonic Filter
LOW PASS SUBSONIC FILTER 12dB/oct
SUBSONIC FILTER 24dB/oct
AMPLIFER CROSSOVER OPTION :
–18
–12
– 6
0
–18
–12
– 6
0
–18
–12
– 6
0
20k 20k 50 20 200
20k 20
