3

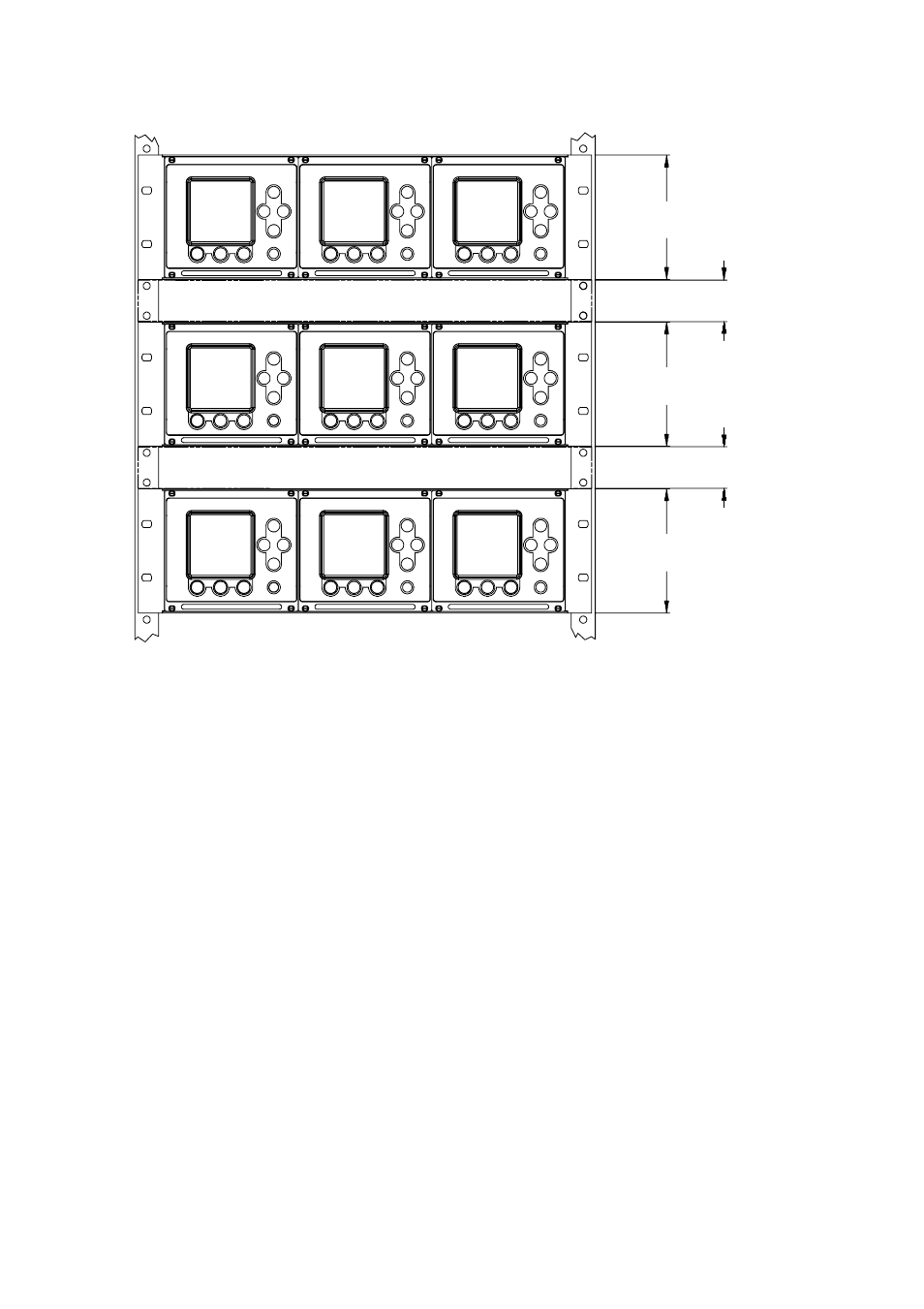

Figure 1.

Space requirements for proper ventilation

Dimensions

The Model 3300/3500 has the following dimensions (see Figure 2,
page 4):

Height: 128 mm (3 U or 3 HE)

Width: 142 mm (28 HP or 28 TE)

Depth: 160 mm

The Model 3300/3500 conforms to DIN standard 41494, Part 5
(IEC 297-3) for 19-inch (486,2 mm) racks. Up to three enclosures fit into
one rack. See Figure 1.

1 U = 1 HE = 1.750 inches (44,5 mm)

3 U (3 HE)

3 U (3 HE)

3 U (3 HE)

1 U (1 HE)

1 U (1 HE)
