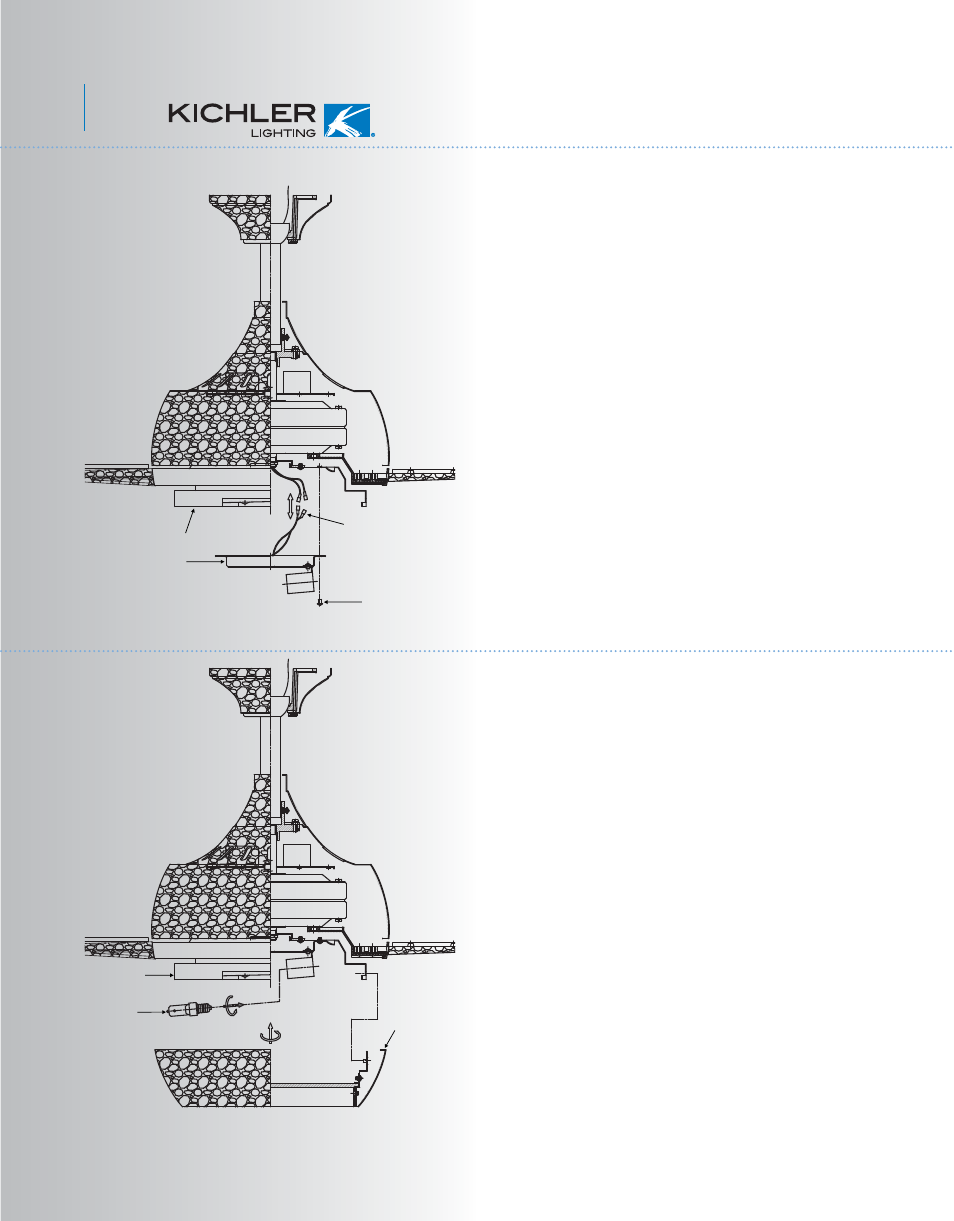

Fig. 18
Fig. 19
Step 1. Install the 3, 40 Watt/E12 T3 Krypton
bulbs (provided). (Fig. 19)
Step 2. Raise the Glass Lens Frame against
the light plate and turn clockwise until snug.
Do Not Overtighten. (Fig. 19)
12. INSTALLING THE BULBS AND
GLASS LENS FRAME
Screws
Bulbs
Light plate
Light plate
Socket plate
Wire connectors
Glass lens
frame
11. INSTALLING THE SOCKET PLATE
NOTE: Before continuing installation, confirm
that the power is still turned off at the main
circuit breaker or by removing the correct fuse.
Turning the power off using a wall switch is not
sufficient to prevent electrical shock.
Step 1. Loosen the two mounting screws on
the inside of the light plate then remove and
save the third screw.
Step 2. Hold the Lamp Socket Plate close to
the light plate and connect the white wires
from the socket plate and the fan by pushing
the connectors together. Follow the same
procedure with the black wires. (Fig. 18)
Step 3. Tuck the connections neatly into the
light plate. Place the key holes on the socket
plate over the 2 screws previously loosened
from the light plate, turn the socket plate until
it locks in place at the narrow section of the
key holes. Secure by tightening all three
screws. (Fig. 18)
