Page 8

7

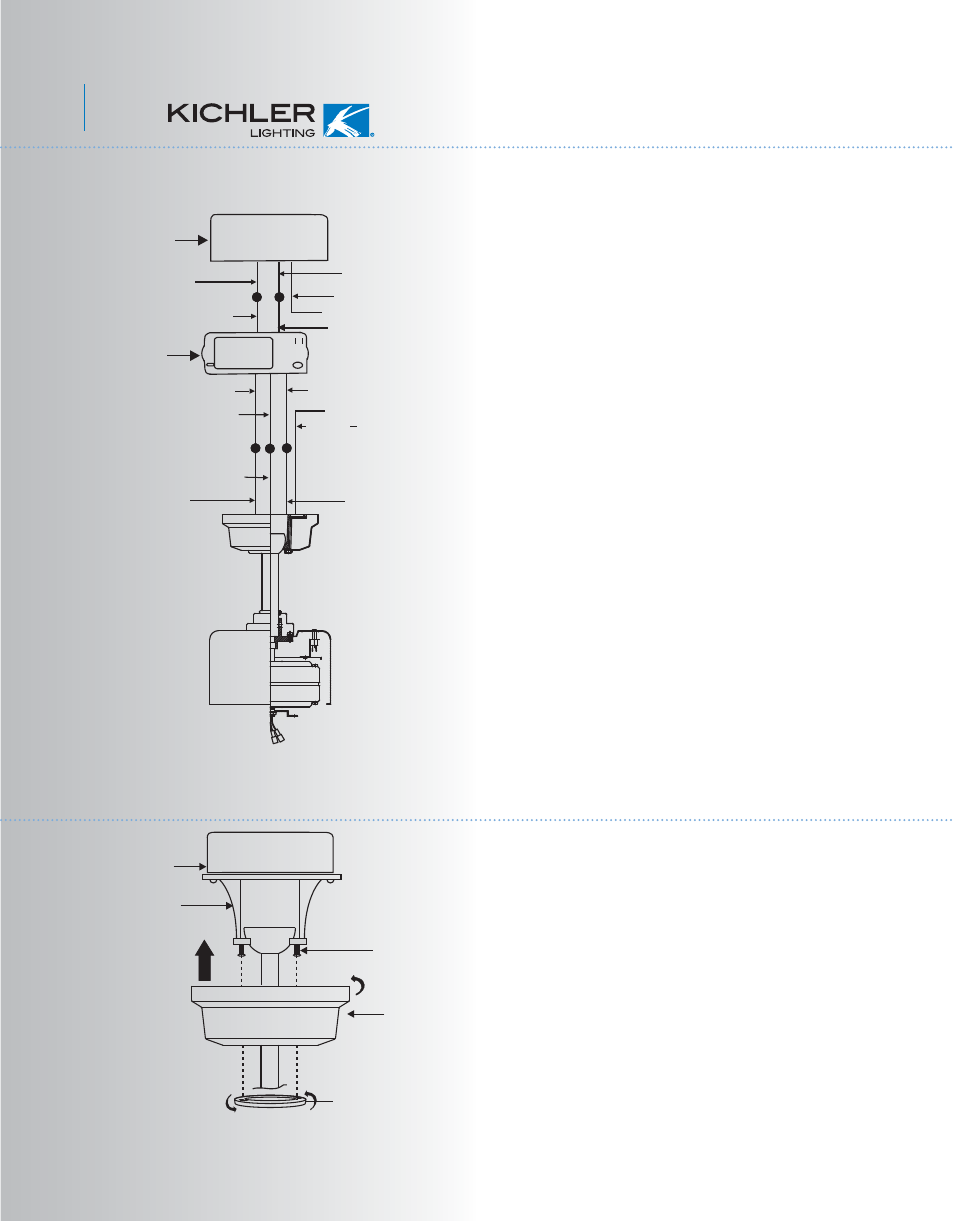

Fig. 15
Outlet box
Ceiling Mounting
Bracket
Canopy
Canopy cover
Screws
Fig. 14
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
MAKE SURE the Black Antenna wire on the
receiver remains free from all other wires.
Step 2. Slide the canopy up to ceiling and over
the two screws on hanger bracket. Rotate
canopy clockwise, next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until
tight.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig.15)
Connect the black wire from the fan to the
black wire marked "TO MOTOR L" on the
receiver. Connect the white wire from the fan
to the white wire marked "TO MOTOR N" on
the receiver. Connect the blue wire from the
fan to the blue wire marked "FOR LIGHT" on
the receiver.
Secure each set of wire connections with the
plastic wire nuts provided in the parts bag.
Step 3. Receiver to Supply Wires Electrical
Connections: (Fig. 14)
Connect the black (load) wire from the ceiling
outlet box to the black wire marked "AC in L"
on the receiver. Connect the white (neutral)
wire from the ceiling outlet box to the white
wire marked "AC in N" on the receiver.
Secure each set of electrical connections with
with the plastic wire nuts provided in the parts
bag.
Step 4. Connect the ground wire (green or
bare copper) from the outlet box to the ground
wire on the ceiling mounting bracket and the
ground wire from the ceiling fan.
After making all connections, separate the
white and green wire connections to one side
and the black wire connections to the other
side of the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the Hand Held
Remote Transmitter for optimal signal
transmission between the transmitter and the
fan's receiving unit.
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
8. FINISHING THE INSTALLATION
