7

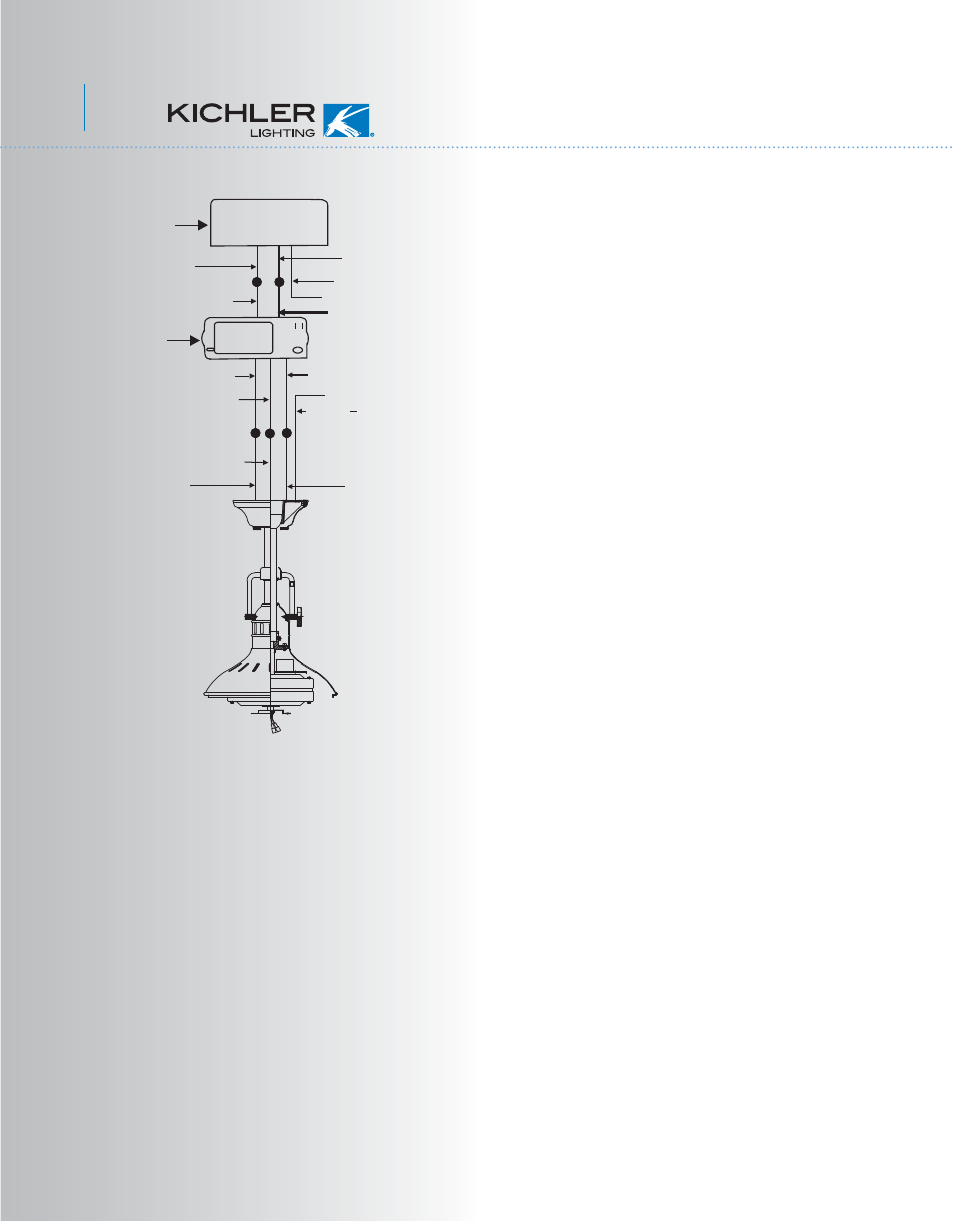

Fig. 13
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
Step 2. Motor to Receiver Electrical
Connections: (Fig. 13)
Connect the black wire from the fan to the
black wire marked "TO MOTOR L" on the
receiver.
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" on the
receiver.
Connect the blue wire from the fan to the blue
wire marked "FOR LIGHT" on the receiver.
Secure each set of wire connections with the
plastic wire nuts provided in the parts bag.
Step 3. Receiver to Supply Wires Electrical
Connections: (Fig. 13) Connect the black
(load) wire from the ceiling outlet box to the
black wire marked "AC in L" on the receiver.
Connect the white (neutral) wire from the
ceiling outlet box to the white wire marked "AC
in N" on the receiver.
Secure each set of electrical connections with
with the plastic wire nuts provided in the parts
bag.
Step 4. Connect the ground wire (green or
bare copper) from the outlet box to the ground
wire on the ceiling mounting bracket and the
ground wire from the ceiling fan.
After making all connections, separate the
white and green wire connections to one side
and the black wire connections to the other
side of the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™
Remote Transmitter for optimal signal
transmission between the transmitter and the
fan's receiving unit.
