1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.
a. Fan motor assembly
b. One switch housing assembly
c. Five fan blades
d. One ceiling cover
e. Five blade flanges
f. One hanger ball/downrod assembly
g. One hanger bracket
h. One coupling cover
i. One loose parts bag containing:
1. Sixteen 3/16-24 x 1/4” slotted Phillips
washer head blade screws
2. Eleven 1/4-20 x 1/2” Phillips oval head
flange screws
3. One wood ball
4. Three wire connectors
5. Two threaded studs
6. Two lockwashers
7. Two knurled knobs
8. One clevis pin
This Manual Is Designed to Make it as Easy as
Possible for You to Assemble, Install,
Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
One 5/16” open end wrench, or pliers
Three wire connectors (supplied).
MATERIALS
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would
be a 3-conductor (2-wire with ground) of following size
:
3
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is com-
pleted, place a check mark in the box. This will insure that all steps have been completed
and will be helpful in finding your place should you be interrupted.
9. One hairpin clip
10. One coupling
11. Sixteen blade washers
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.

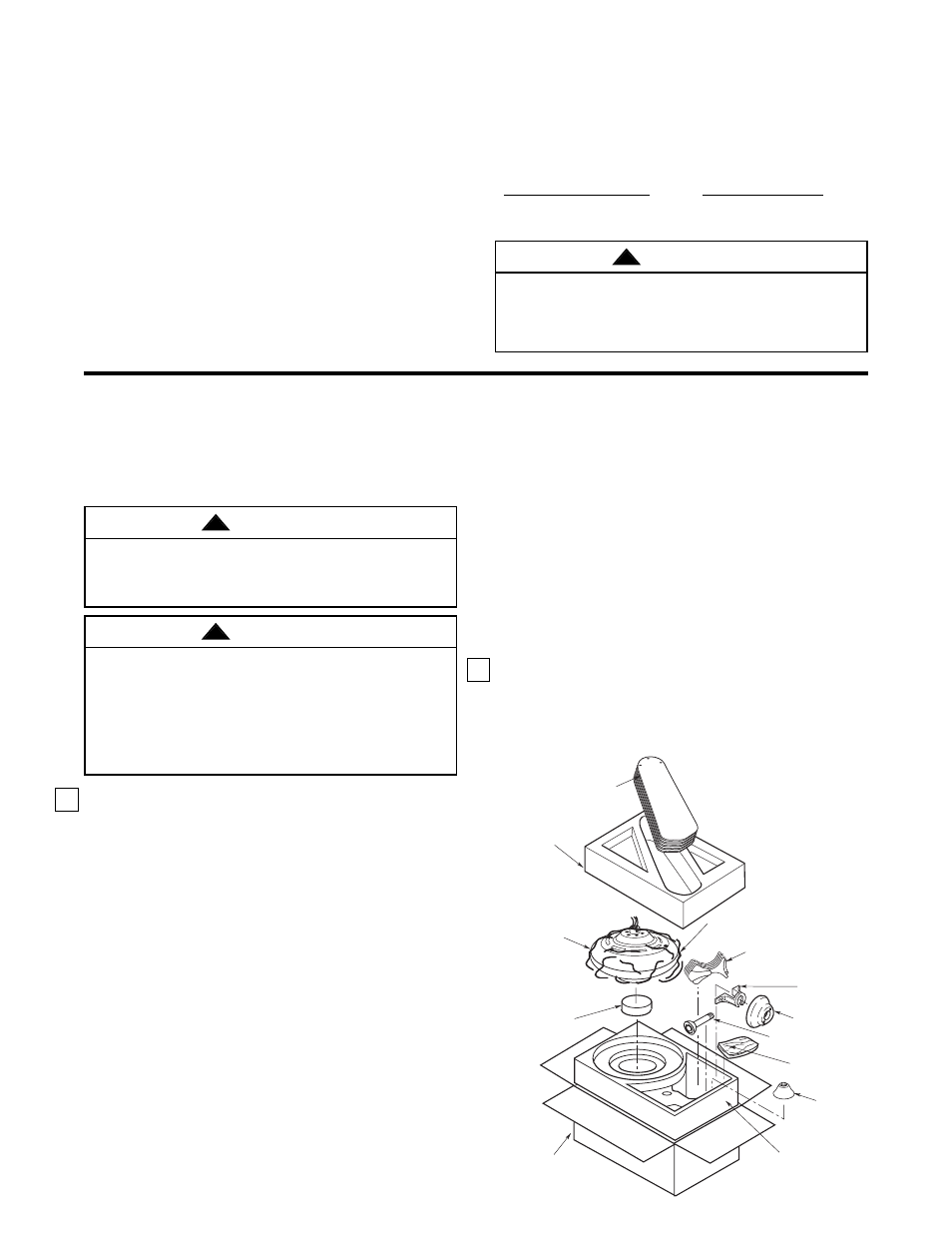

2. Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper
foam pad with the top of the motor facing up.
The upper foam pad serves as a holder for the fan
during the first stages of assembly.
FAN MOTOR
ASSEMBLY
CARTON
LOWER
FOAM PAD
SWITCH
HOUSING
ASSEMBLY
LOOSE PARTS
BAG
HANGER BALL/
DOWNROD ASSEMBLY
CEILING
COVER
HANGER
BRACKET
BLADE
FLANGES
PROTECTIVE
PLASTIC BAG
UPPER
FOAM PAD
FAN BLADES
COUPLING
COVER
Before assembly your ceiling fan, refer to section on
proper method of wiring your fan (page 6). If you feel
you do not have enough wiring knowledge or experi-
ence, have your fan installed by a licensed electrician.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson could result in personal injury or
property damage.
