EDFP210FP*B EDFP214FP*B EDFP217FP*B
PAGE 3
FIG
. 2
FINISHED FLOOR
1. Wall should already be framed for the fountain using dimensions shown in Fig. 1.
Shown dimensions pertain to installation location.
These dimensions are required for compliance with
ANSI S
tandard
A1
17.1. and
ADA
(Framing shown for reference only).
2. Remove bottom cover from fountain and save the screws. 3. Inst
all the fount
ain
using bolt
s and washers (not provided).
T
ighten securely
.
4. Attach drain tube
to fountain and cut to required length using the freeze resistant box as a guide.
5. Install freeze-resistant box
- see box instructions.
6. Replace
bottom cover
.

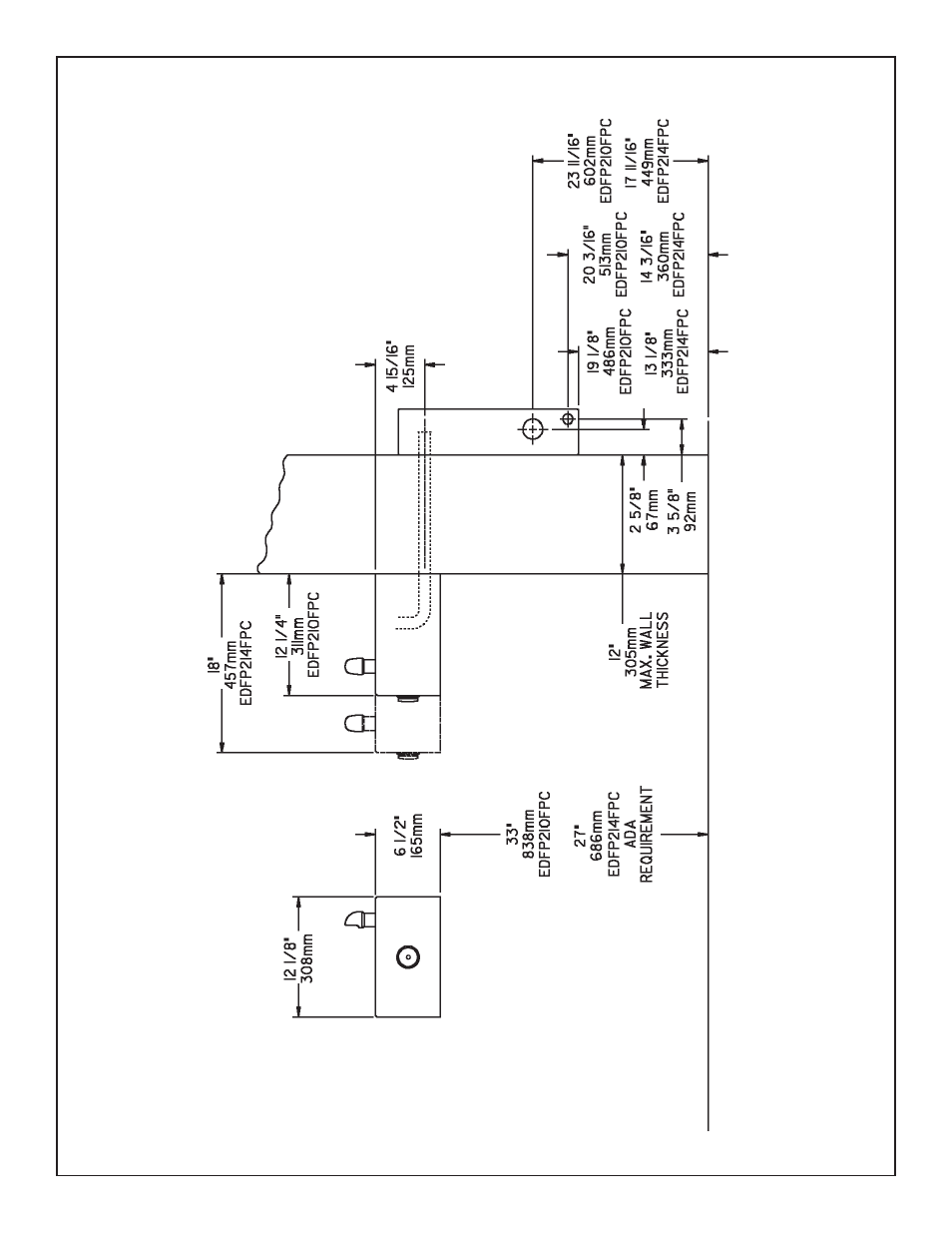

EDFP210FP/EDFP214FP
ROUGH-IN DRA
WINGS
