Emerson CR202EM8 - Manual (Page 9)

9
EN
WATCHING TV
INTRODUCTION
CONNECTION
INITIAL SETTING
OPTIONAL SETTING
TROUBLESHOOTING
INFORMATION

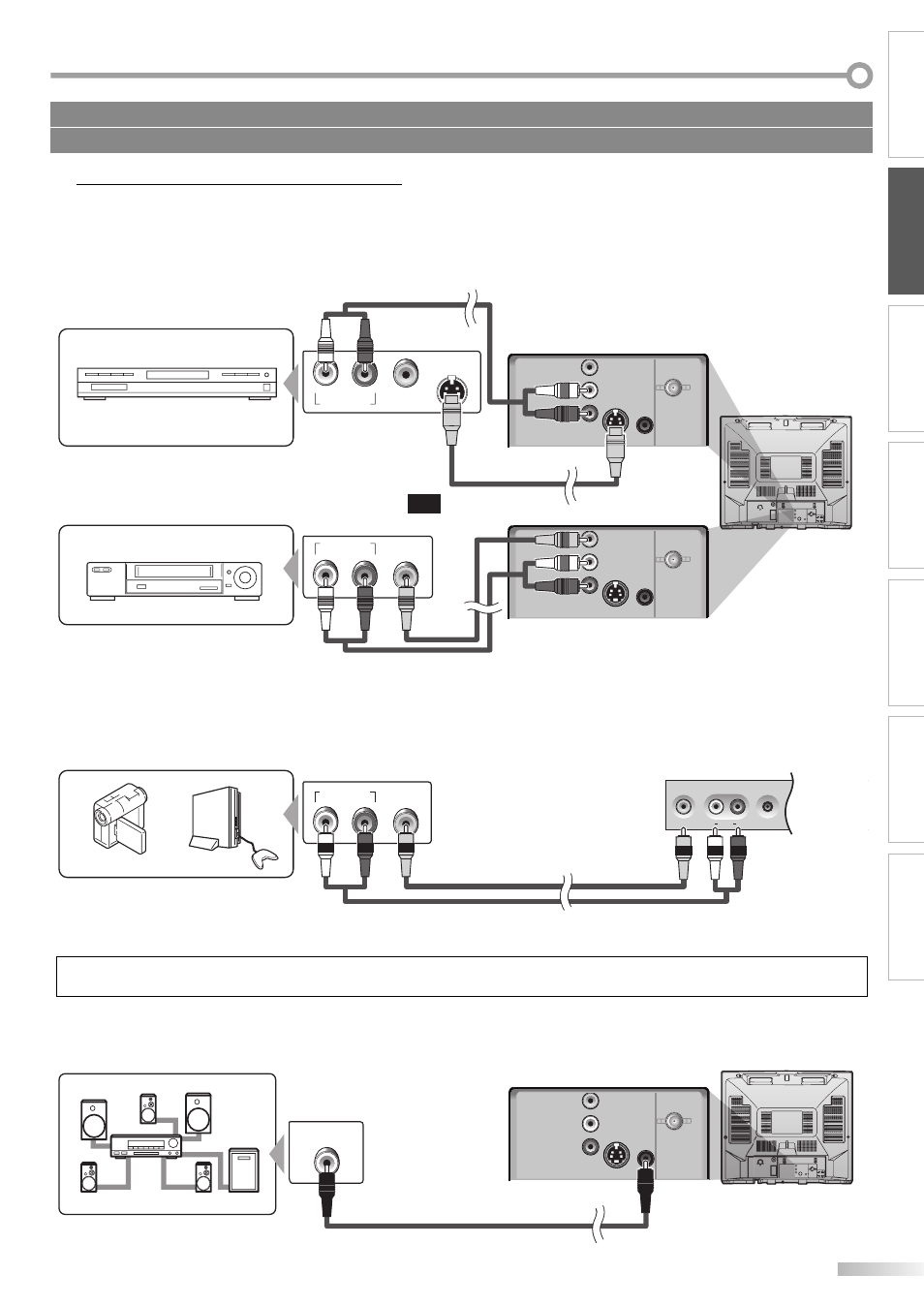

External Device Connection
[S-video or Video Cable Connection (Rear)]
S-video connection offers good picture quality for video devices connected to the unit.
Video connection offers standard picture quality for video devices connected to the unit.
Make the connection as illustrated below.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
DVD player with
the S-video output jack
e.g.)
VCR
e.g.)
AUDIO OUT
R L VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT
R L
VIDEO
OUT
ANT. IN COAXIAL S-VIDEO
VIDEO
L
R
rear of this unit
ANT. IN COAXIAL S-VIDEO
VIDEO
L
R
rear of this unit
RCA audio cable
S-video cable
RCA audio cable
RCA video cable
or
• To use the S-video or video input jack on the rear of this unit, press [INPUT SELECT] to select “VIDEO1”.
[Video Cable Connection (Front)]
Video connection offers standard picture quality for video devices connected to the unit.
Make the connection as illustrated below.
When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.
e.g.)
camcorder video game
AUDIO OUT
R L
VIDEO
OUT
VIDEO HEADPHONE
MENU VOLUME
AUDIO R L
front of this unit
RCA audio cable
RCA video cable
• To use the video input jack on the front of this unit, press [INPUT SELECT] to select “VIDEO2”.
Note:
• If you connect to the S-video jack and the video jack at the same time, the S-video connection will have priority.
[Digital Audio Output Connection (for digital broadcasting only)]
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
Dolby Digital decoder
e.g.)
ANT. IN COAXIAL S-VIDEO
VIDEO
L
R
rear of this unit
DIGITAL AUDIO
COAXIAL IN
digital audio coaxial cable
5
Cables not included.
Please purchase the necessary cables at your local store.
