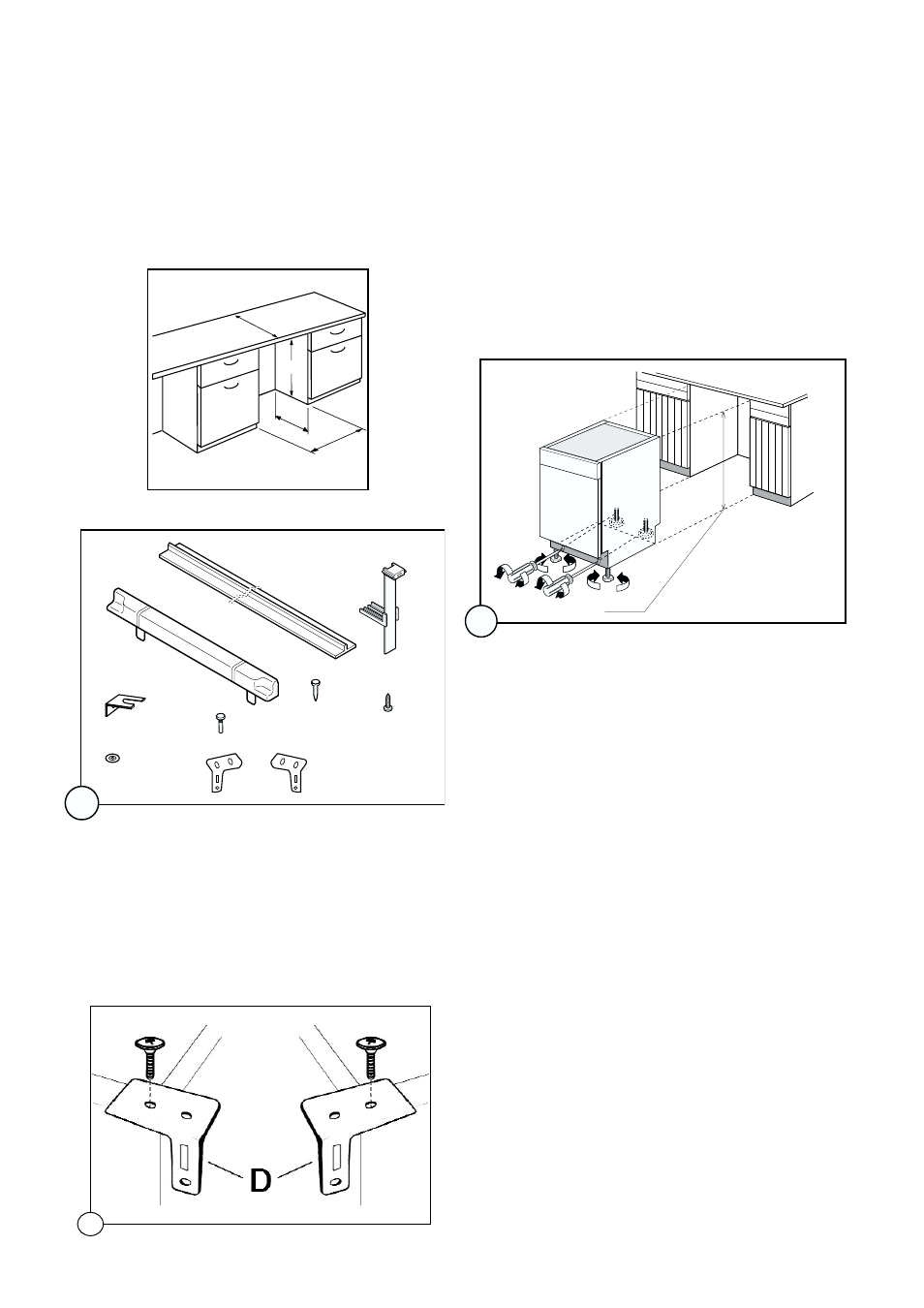

Building-in instructions
Building in the appliance under a
worktop
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
DO013
600
T
B
H
Installation kit
1xA
2xD
1xB 2xC
2xL
18xI
2xF
2xG
1xK
1
1. Two cabinet securing brackets are supplied with
the installation pack. They need to be assembled
onto the cabinet prior to cabinet being pushed into
the Kitchen aperture.
- To fit these brackets remove the two screws at the
top left and right hand front corners of the cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
Left hand bracket Right hand bracket
2
2. Push the appliance into place. The plug socket
necessary for connection of the appliance to the
electricity supply should be positioned, so that the
plug is not placed in the recess.
3. To adjust the height proceed as follows:
- Loosen or tighten the two front feet.
- The rear feet are adjusted by turning the screw in
the front kick plate to the left or right.
596
555
max
+
-
3
+
-
max. 890 mm
