air-o-steam ®
Electric Combi Oven 102
Supply voltage:
267083 (AOS102EAM1) 208 V/3p/60Hz - 69A
267093 (AOS102EAB1) 240 V/3p/60Hz - 60A
Connected load: 25 kW
Circuit breaker required
Electric
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
8-11-09

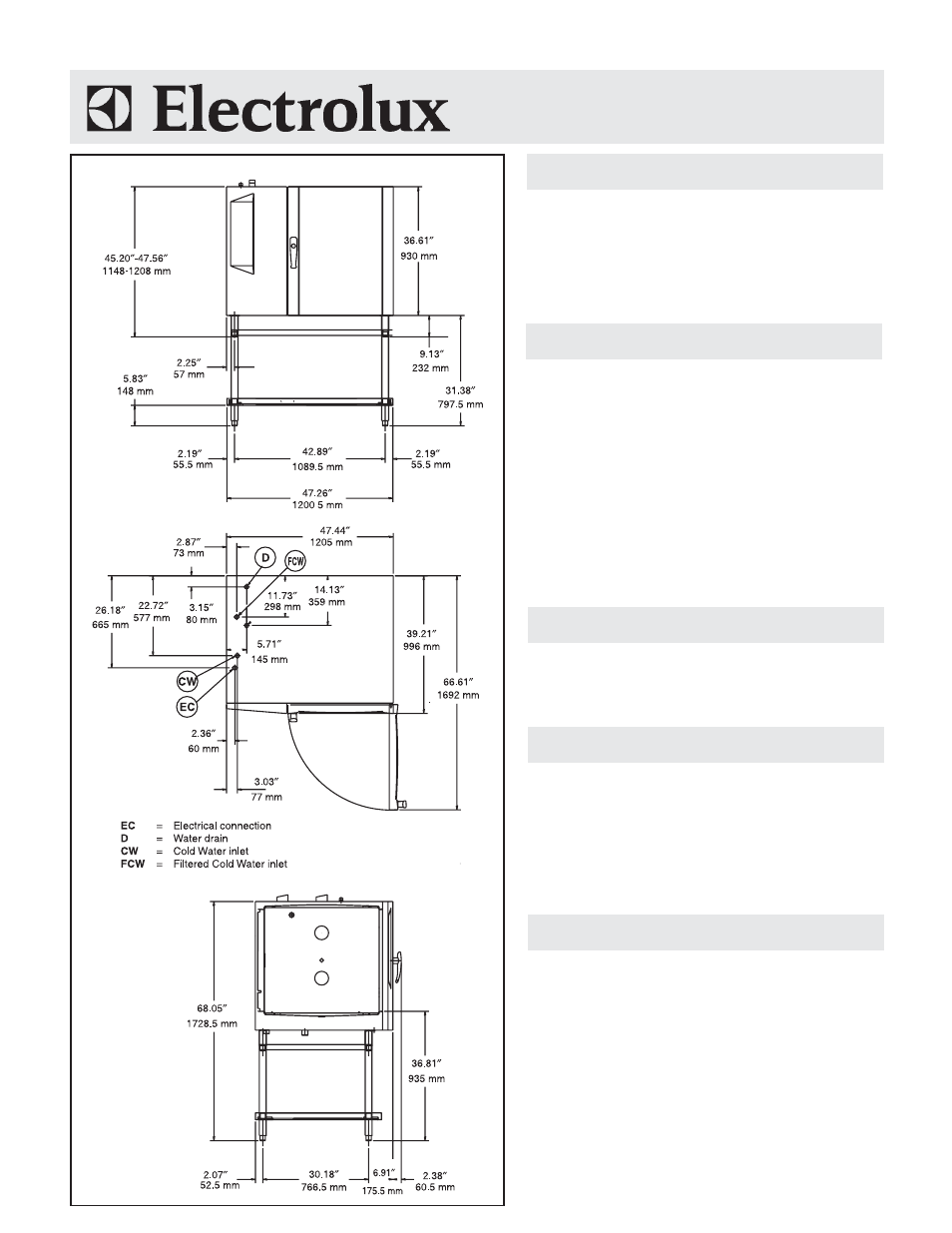

Front View
Top View
Side View
Net weight: 461 lbs. (209 kg)
Shipping weight: 496 lbs. (225 kg)
Shipping width: 50 ″ (1270 mm)
Shipping height: 52-3/8 ″ (1330 mm)
Shipping depth: 44-7/8 ″ (1140 mm)
Shipping Volume: 68.15 cu. ft. (1.93 m³)
Key Information
air-o-steam ®
Electric Combi Oven 102
Water Consumption (gal./hr.): Min: 4.49 Max: 20.08
Water inlet “CW” – ¾ ″″″″″ connection:
Unfiltered drinking water
Water inlet “FCW” - ¾ ″″″″″ connection:
Total hardness: 5-50 ppm
Pressure: 22-36 psi (150-250 kPa)
Drain “D” 1-1/4 ″ connection
Electrolux recommends the use of treated water, based on
testing of specific water conditions.
Please refer to user manual for detailed water quality
information.
Water
Clearance: 2 ″ (5 cm) rear and right hand sides.
Suggested clearance
for service access:
20 ″ (50 cm) left hand side.
Installation
Sheet pans: 10 – 18 ″ x 26 ″
Steam pans: 20 – 12 ″ x 20″
Half size sheet pans: 20 – 13 ″ x 18″
GN: 20 – 1/1 containers
10 – 2/1 containers
Max load capacity: 180 lbs. (80 kg)
Capacity
