Quick Installation Guide
00825-0100-4420, Rev CA
June 2007
1420 Wireless Gateway
4

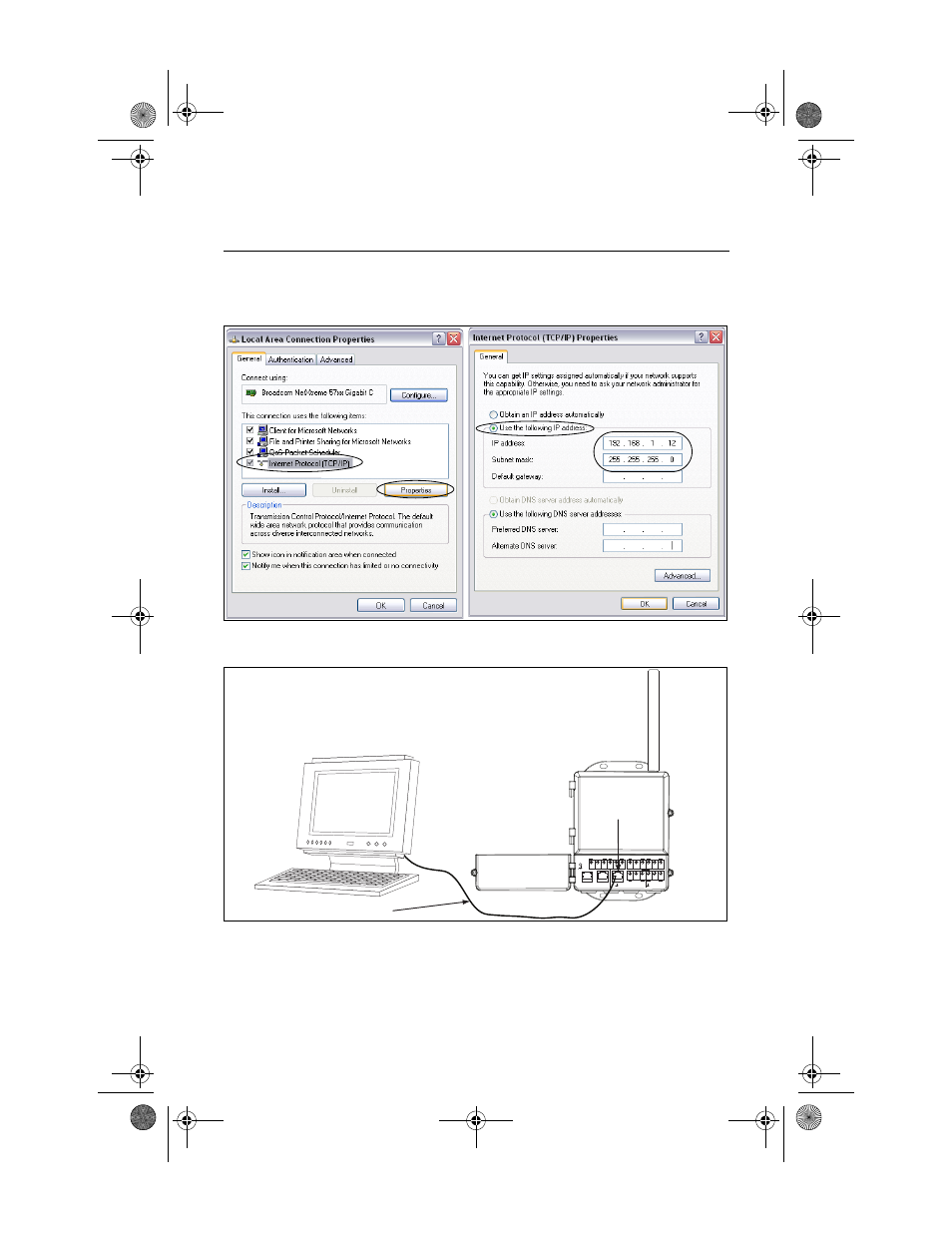

c. Select Internet Protocol (TCP/IP), then click the Properties button
d. Select the Use the following IP address button and set the IP address to
192.168.1.12
e. Set the Subnet Mask to 255.255.255.0
f. Select OK for each of the settings windows that have opened.
3. Using the supplied crossover Ethernet cable, attach your PC/laptop to the 1420’s
P1 Ethernet Receptacle (far right Ethernet receptacle).
WARNING
Do not connect to the P3 Power Over Ethernet (POE) port. This port supplies power
and could potentially damage the PC/laptop.
+
+
+
+
+
-
-
-
-
-
A
B
S
S
S
S
S
24 V DC
24 V DC
Power Input
Power Input
Modbus
Modbus
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Case
Case
(Covered)
(Covered)
S
POE
POE
P2
P2
P1
P1
P1 Ethernet
Receptacle
Crossover Cable
PC/Laptop
