5

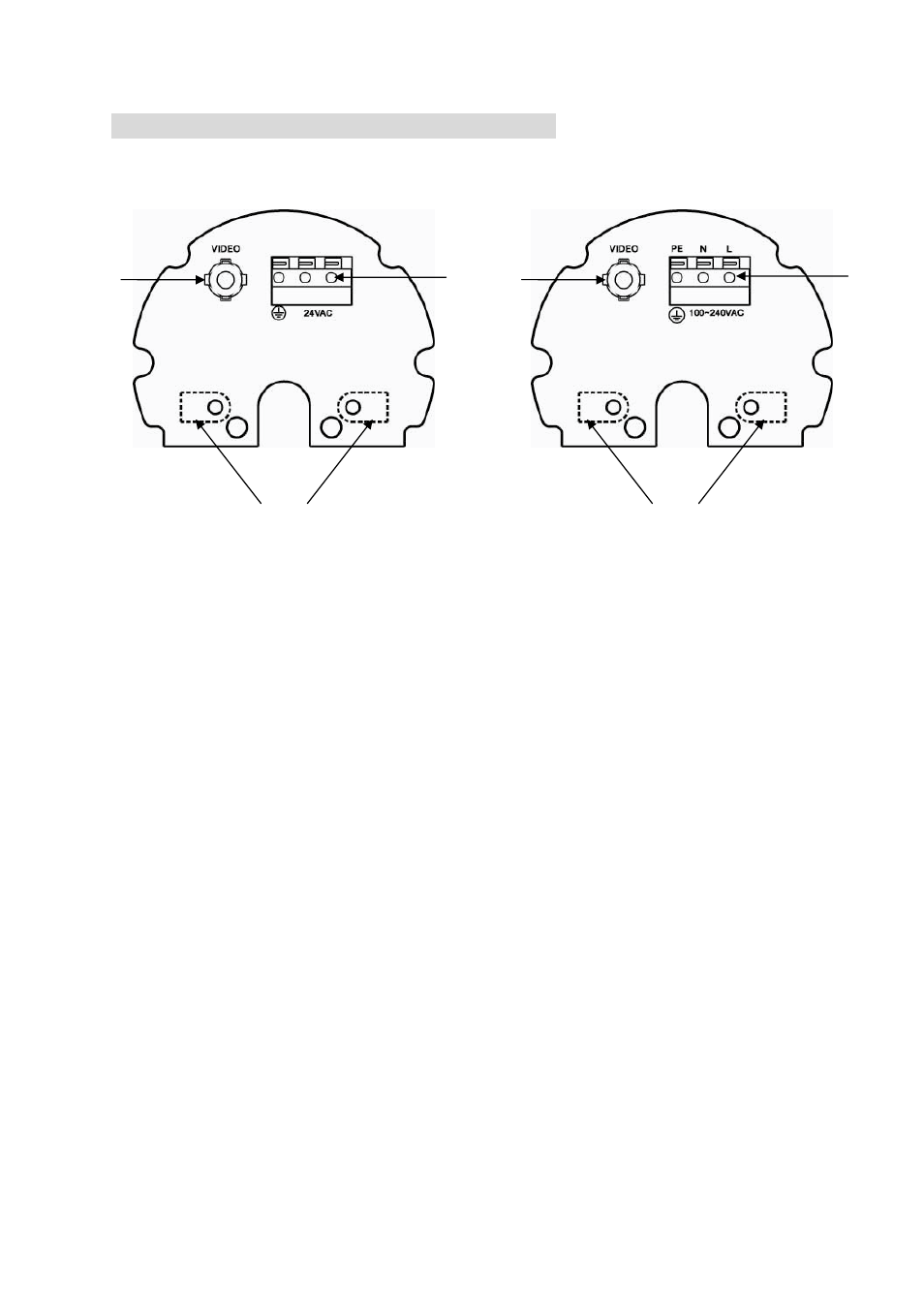

NAMES AND FUNCTIONS OF BACK PANEL





1

Video Output Connector

Connect the video output of the camera to a color monitor or other video devices through a 75

Ohm type coaxial cable with BNC female connector at backside of the camera.


2

Power

Input

Terminal

Connect to the appropriate power to each model. N/L is used to connect to power in. PE is a

ground pin.


3

Cable

clips

Used to fix power cable.












24VAC model

1

2

3

110V~240VAC model

1

2

3
