Elk Products ELK-981 User Manual

Cell-pack, Elk-981, Application

background image

P.O. Box 100 • Hildebran, NC 28637 USA • 828-397-4200 • 828-397-4415 FAX
http://www.elkproducts.com • email: [email protected]

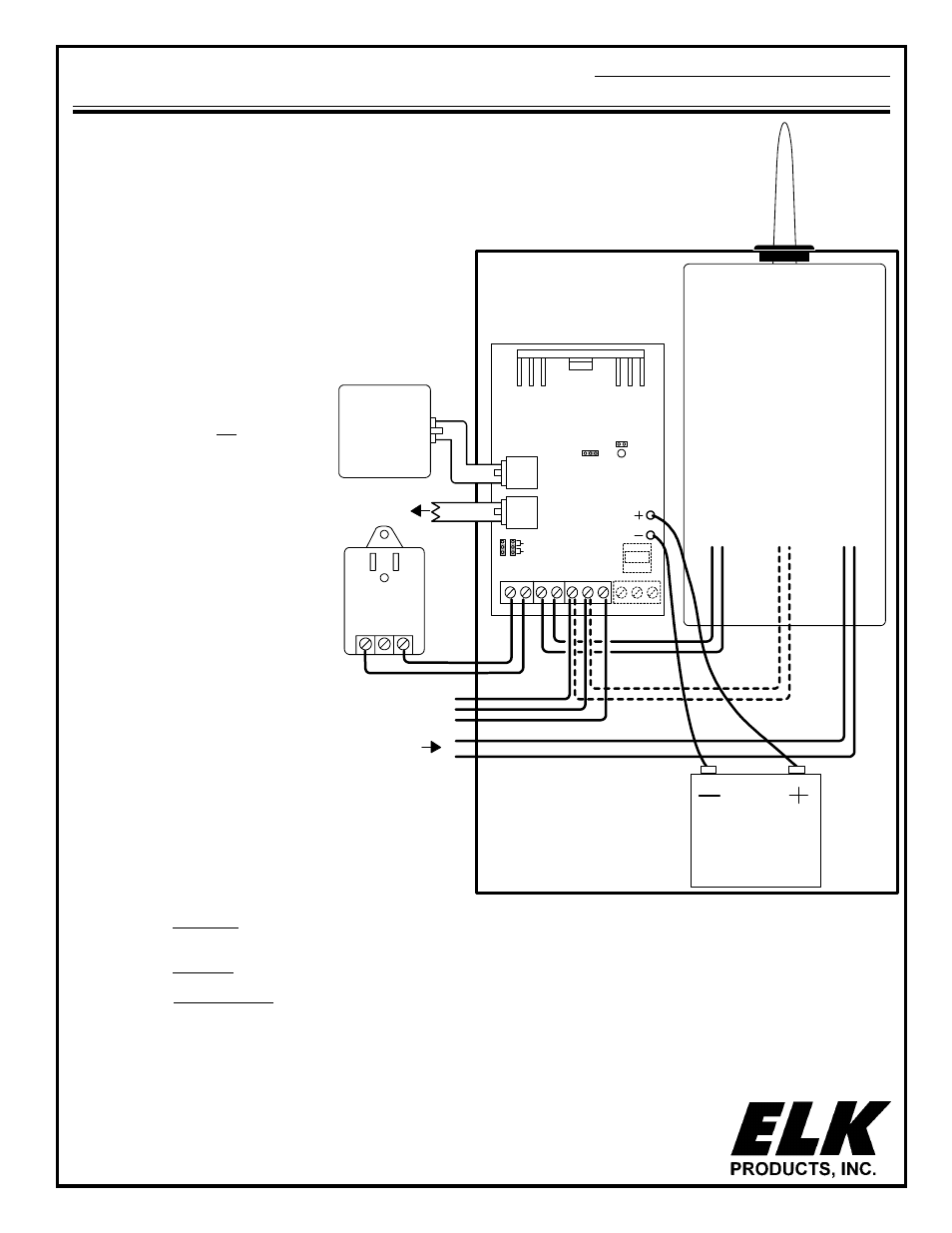

To Control Dialer
Connection

ELK-981

Power Supply /

Telephone Line Fault

Module

Phone Line to Control

Phone Line to RJ31 / 38 Jack

Battery

PHONE LINE

ALARM RELAY

N/C COM N/O

TRANS

FORMER

16VAC

12V DC

OUTPUT

- +

Bell / Alarm output
from control panel

-

+

ELK-950

RJ31X Phone Jack

Incoming

Phone

Line

Black

(Sold Separately)

JP1

STATUS

RESET

R1

T1

HOUSE SIDE

TELCO SIDE

Red

* Note:

Battery (ELK-1250) &

Transformer (ELK-TRG1640)

Included with ELK-981K

Sold Separately for ELK-981

J3

J2

J1

For Future Use

-

Optional hookup

for Transmission

Shunt (if available)

Phone Line Fault
Output (dry contacts)

N/C

Com

N/O

Battery
12 Volt

* See Note

Transceiver

12 Volts D.C.

Power Input

Bell / Alarm

Input

Refer to the Cellular Transceiver

Instructions for Connections

Cellular

Alarm Transceiver

+

-

+

* See Note

Transformer

16.5 VAC

45 VA

Cell-Pack

Telephone Line Fault Monitor,

Power Supply, and Enclosure

03/04

For Technical Support on the Numerex Technologies
Digicell Transceiver, call 888-987-5465.

FEATURES

• Monitors Telco Voltage and Current
• Shunts Transceiver If Phone Line is Good
• Supplies 12 Volts D.C. Power
• Current: 2.5A Peak, 1A Continuous
• Heavy Duty Metal Enclosure

INSTALLATION

1. Mount transceiver in top right corner by

sliding antenna thru rubber grommet and
securing the bottom using hardware
supplied. (see page 2)

2. Wire as per the Cellular Transceiver

instructions.

3. Jumper JP1 on the ELK-981 board should

be in the "5 Sec" position.

4. Jumpers T1 and R1 should be set in the

"Telco Side" position.

5. Connect Transformer and Battery after all

wiring is complete.

OPERATION

The ELK-981 monitors both the phone line voltage and current to
detect a faulted line. This reduces the incidents of false
detects. On-hook phone line voltage is around 48 VDC. This
voltage drops when the phone is in use (Off-hook), however
the telephone instrument is then drawing current on the line.

The phone line is considered to be faulted whenever
the line voltage falls below 3 volts and the line current
draw is less than 18mA.

STATUS LED Blinking ON once per second indicates a good

phone line and testing is in process. The transceiver is shunted
by relay closure across terminals COM and N/C.

STATUS LED Steady ON indicates a phone line fault. The

relay contacts open and the transceiver is free to transmit.

STATUS LED Predominantly On (blinks off ever 3 seconds)

is a memory indication of a previous line fault. Reset by briefly
shorting the two pins located above the Status LED. The Status
LED will once again Blink On if phone line is good.

Features and Specifications subject to change without notice.

This device complies with Part 68 of the FCC rules. FCC Reg. No. 5K6USA-25252-KX-N
Ren No. 0.0B. It has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.

The ELK-981IC meets the applicable Industry Canada Terminal Equipment Technical
Specifications. This is confirmed by the registration number: 4343A-ELK981IC. The
abbreviation, IC, before the registration number signifies that registration was performed
based on a Declaration of Conformity indicating that Industry Canada technical specifi-
cations were met. It does not imply that Industry Canada approved the equipment. The
Ringer Equivalence Number (REN) for this terminal equipment is 0.0B. The REN assigned
to each terminal equipment provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed five.

ELK-981

ELK-981IC Canada Version (Industry Canada)
ELK-981K Incl. Battery & Transformer (US Only)

APPLICATION

The ELK-981 Cell-Pack is the ideal companion for Cellular
Alarm Transceivers. It consists of a metal enclosure, 12 Volt
DC power supply/battery charger, and a telephone line fault
monitor. It supplies 1 Amp continuous current and 2.5 Amps
peak for brief high current demands during radio
transmission. The relay contacts from the line fault monitor
can notify the alarm panel if the telephone line is cut, or they
can be used to shunt the radio transceiver as long as the
telephone line is good.
