CONNECTING
1
2
3 Playing the audio device
CONNECTING

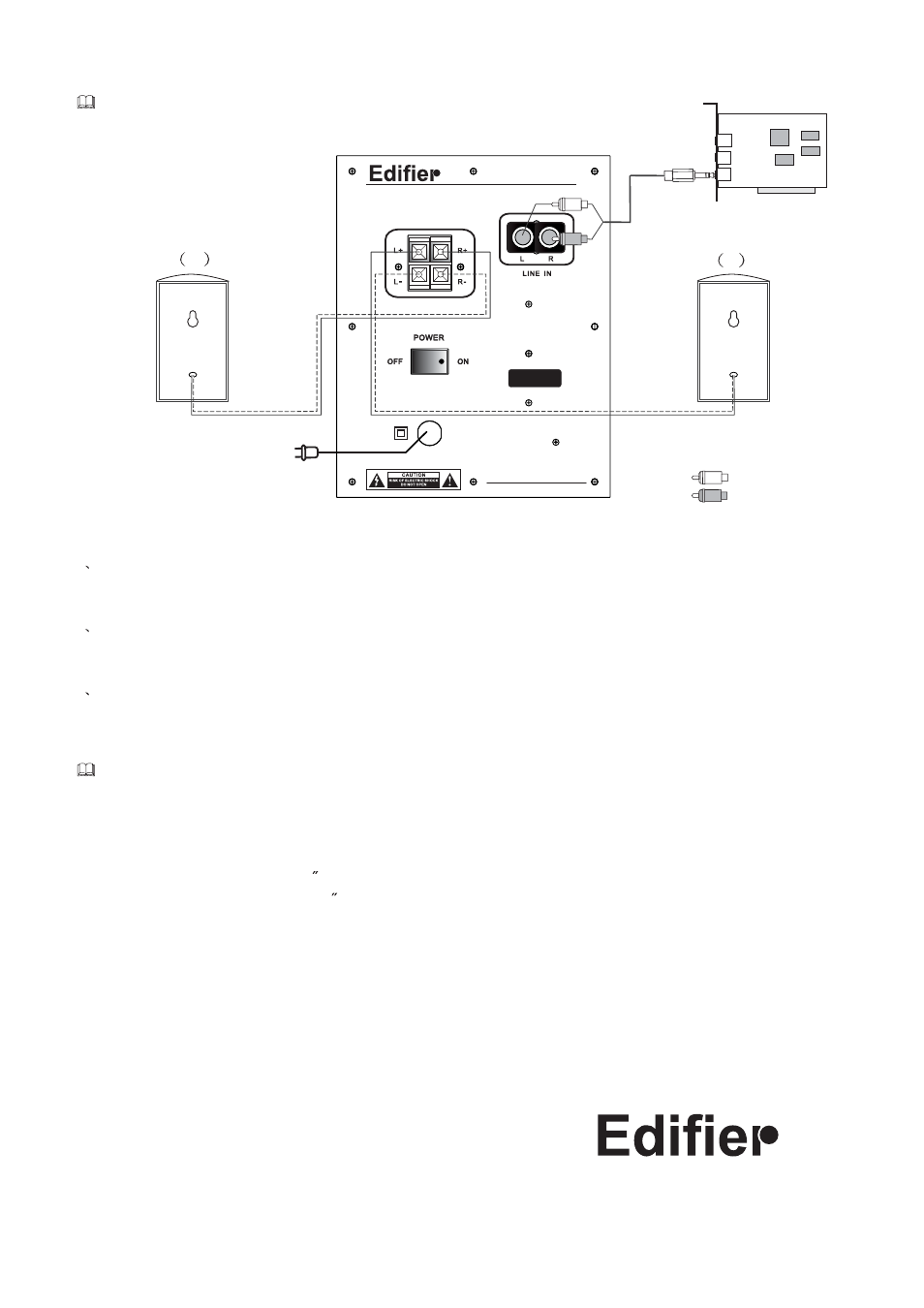

Connect the satellite speakers to the output splints on the back panel of the Sub-woofer. Please note to match
the color, red to red and white to white.
Connect the subwoofer to the Audio device.
Using Audio connecting cord , connect the Line-input port of the subwoofer to Line-out of the Audio Device
(Such as the computer, Discman, etc).
Plug the AC power plug into the wall outlet and turn on the power switch, Now your speaker system is ready for
Use. Adjusting the volume control and the Super bass,then you can enjoy the music.
SPECIFICATIONS:
Total P Output :
Input Impedance:
Input Sensitive:
Bass Unit:
Tweeter :
Frequency Response:
Dimension(Subwoofer):
Dimension(Satellite):
Gross Weight:
ower
Unit
RMS 8W x 2 + 12W
10K Ohm
450 mV
5 Aluminum coil, 4 Ohm
Paper coil, 4 Ohm
48 Hz ~ 20 KHz
158(W) x 194(H) x 302(D)mm
86(W) x 162(H) x 121(D)mm
About 5.1 Kg
2 3/4
R
Connected
with AC power
R231T
Multimedia speaker
Speaker Output
Edifier Enterprises Canada Inc.
Designed and Engineered in Canada
HOT PANEL
TOUCH WITH CARE
