Page 5 21088-2-0706
Before you begin: Do not, handle these logs with your bare hands!
Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean
operation of this heater. Sooting and other problems may result if
the logs are not properly and firmly positioned in the appliance.
Refer to Figure 1 and Figure 1A for the following warning.
Warning: Failure to position the parts in accordance with
this diagram or failure to use only parts specifically approved
with this appliance may result in property damage or personal
injury.
PROPER INSTALLATION SEQUENCE:
LS-(18,24,30)B2-1:
(Figure 1)
1. Place rear (#1) log onto two (2) pins on rear log support.
2. Place left, front (#2) log onto two (2) left, front pins on burner
pan.
3. Place right, front (#3) log onto two (2) right, front pins on
burner pan.
4. Place Y Branch (#4) onto two (2) pins on rear log.
5. Compare the completed log installation with the appropriate
photo from pages 7 through 9. Review previous steps to make
any necessary adjustments.
6. Log placement is completed.
Replacement Loose Material (glowing embers) Part
Number
Note: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner.

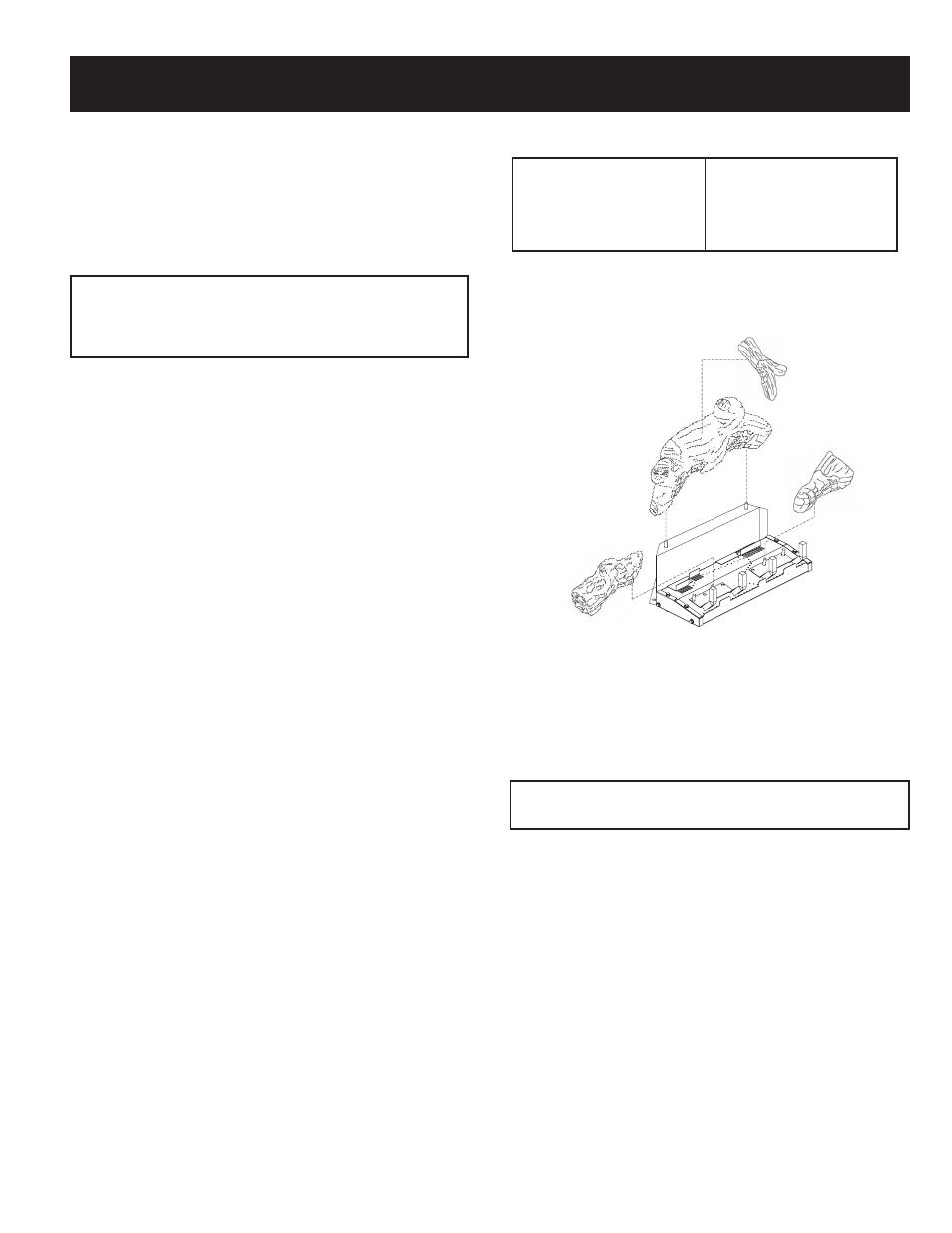

Log Placement LS-(18,24,30)B2-1
Figure 1
The following WARNING applies when log set is installed onto
an unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
1
2
3
4
LS-18B 15999
LS-24B 15970
LS-30B 15970
Platinum Bright Embers PE-20-1
BIRCH LOG PLACEMENT
