Emerson Hot1 - Manual (Page 6)

Wing
Nut
6
2
■ ■
R emove the spout by loosening
the set screw in spout holder
approximately 2 full turns and
pull out spout.
■ ■
Mount the unit through the 1 3/8"
diameter (35 mm) hole in the sink.
Make sure the valve lever is in the
up position and feed the spout end
of the dispenser through the sink
mounting hole.
A
C

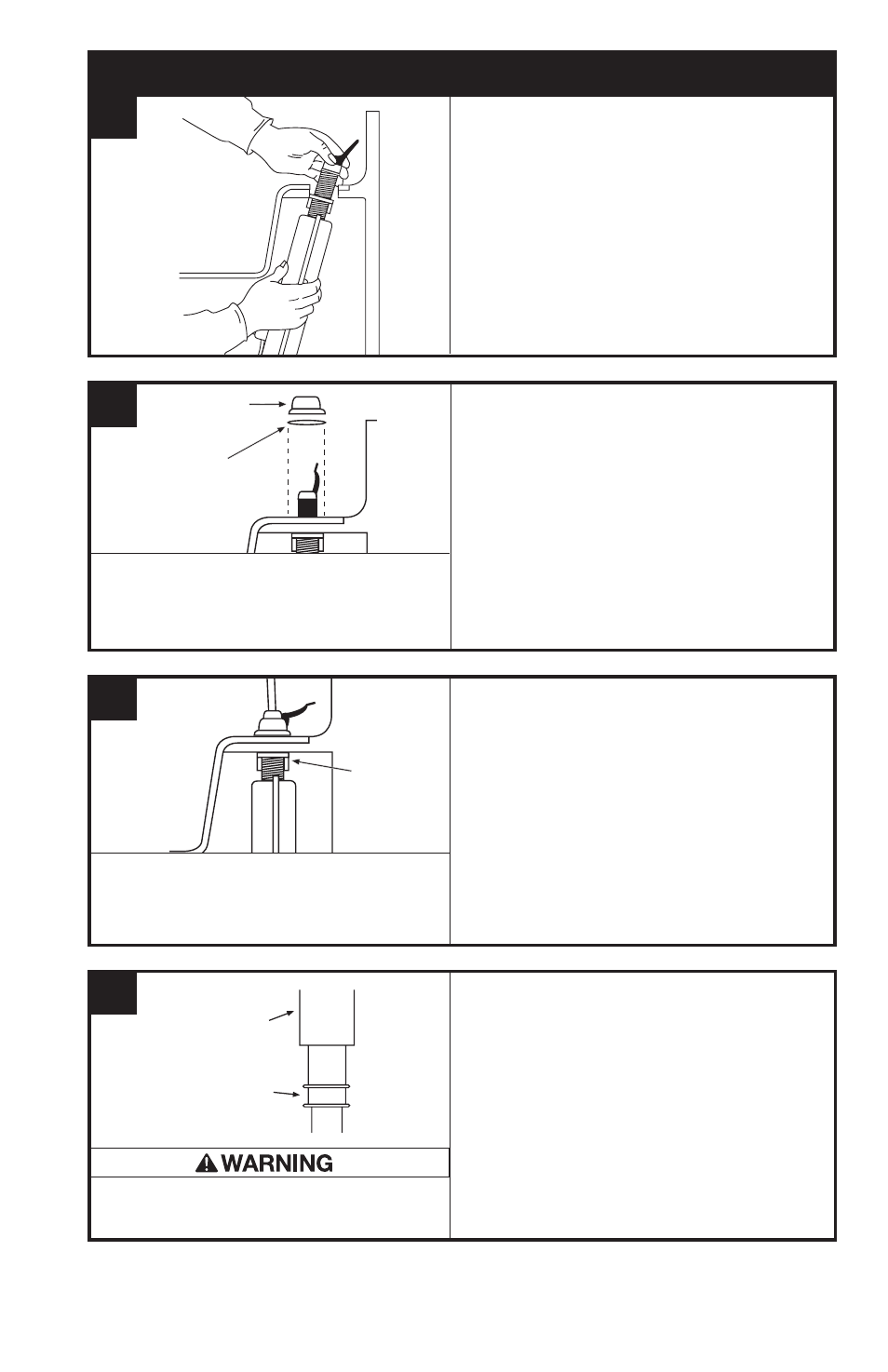

INSTALLING THE DISPENSER
■ ■
While holding the dispenser in
place with spout removed, slip
the rubber gasket and mounting
nut over the valve lever and
hand tighten the nut on the
threaded barrel.
✢
■ ■
Align spout so water runs into the
sink and secure the dispenser by
tightening the wing nut from the
underside of the sink.
B
Personal Injury: Failure to tighten set screw allows easy
removal of spout. Operation of unit with spout removed
could cause injury from hot water spray .
Mounting
Nut
Rubber
Gasket
D
■ ■
Reassemble the spout ensuring
the rubber seal is in place on inner
spout tube grove before re-inserting
spout into tank outlet.
■ ■
If rubber seal is not on spout, check
inside tank outlet. Remove and
install seal per diagram.
■ ■
Push spout into dispenser as far as
it will go and tighten set screw.
Spout
Rubber
Seal
The dispenser must be mounted in
the upright (vertical) position only.
Spout and spout holder should not be loose
after mounting. First tighten mounting nut
and then tighten wing nut securely.
