Quick start, Preliminar y, Quick start — mvx series vga matrix switchers – Extron electronic MVX 88 Series User Manual

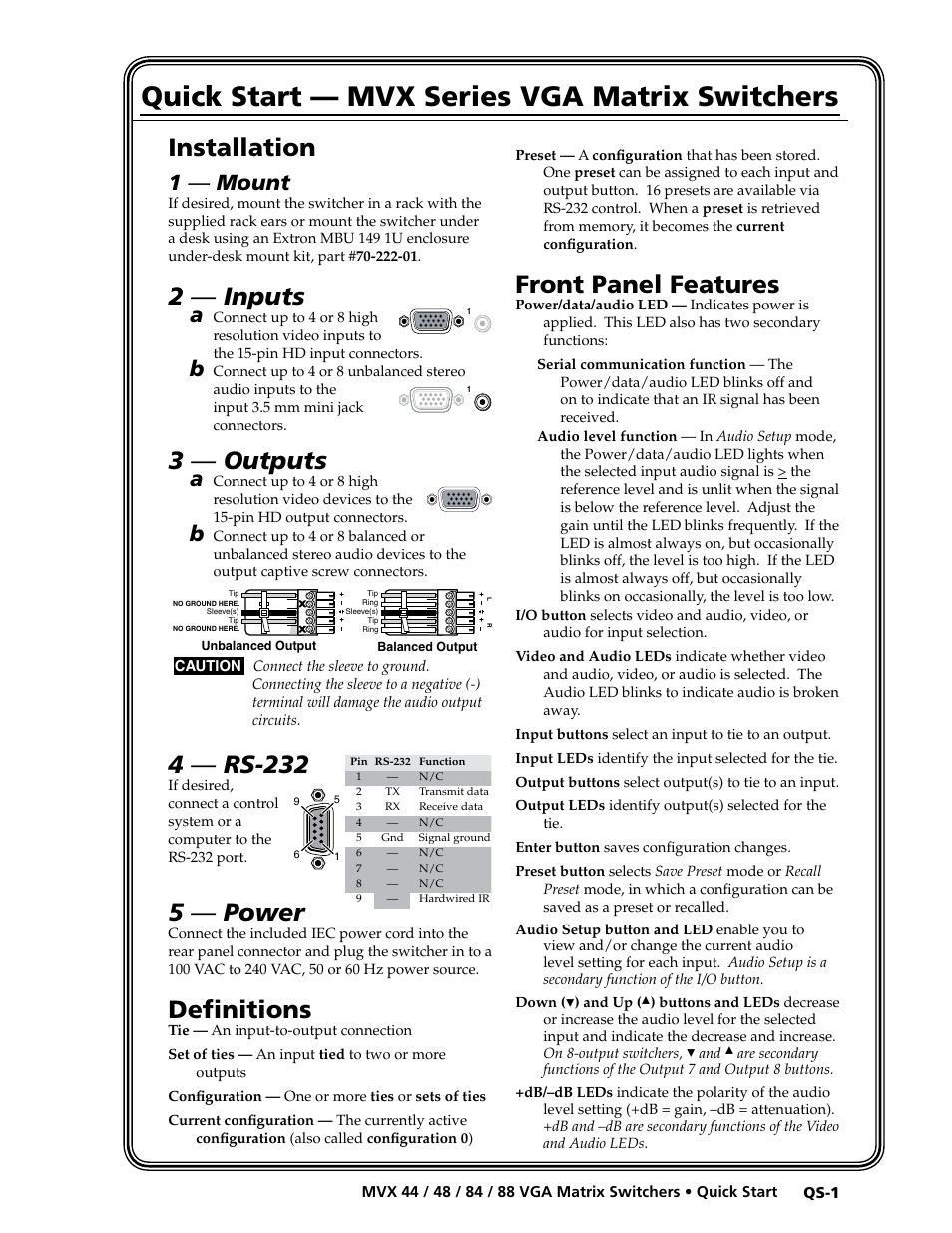

Page 5: Installation, 2 — inputs, 3 — outputs, 4 — rs-232, 5 — power, Definitions, Front panel features
