Specifications
The Multi-Function
Flashlight:
• Outer dimension:
6.69'' x 2.30'' x 2.26''
• Weight: .582 lbs
• Maximum power
consumption: 0.6W
(This excludes the
charging function).
• Voltage: 3.6V-4.0V
(This excludes the
charging function).
• Maximum current:
150mAh
(This excludes the
charging function).
Hand-Winding Power
Generation Function:
• Recharge battery type:
3*2/3AA 600mAh3.6V
NIMH
• Hand-winding power:
130 rpm or faster
• Voltage: 5.6 DC.
• Maximum current:
1300±50mA
LED Flashlight:
• Voltage: 3.2 V-3.8 V
• Current: 150mA
• Power consumption:
0.6W.
8 9

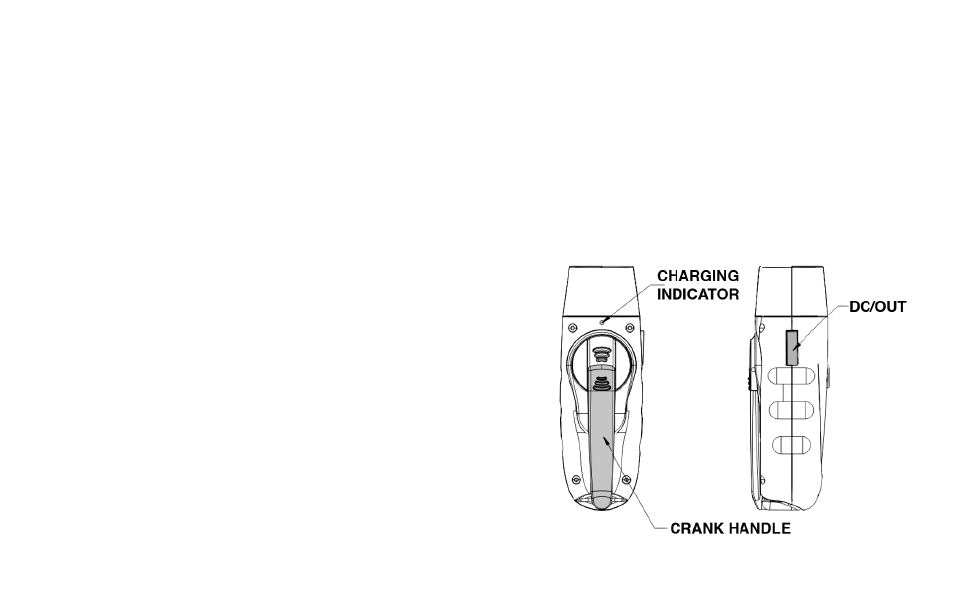

Functions of Knobs and Buttons
C
RANK
H
ANDLE
: Turn clockwise to generate power.
L
IGHT
: Press to turn the light function
ON
or
OFF
.
EZ C
RANK POWER OUTLET JACK
(DC O
UTLET
):
Connects to external devices such as cell phones
to recharge.
