Electrolux 533300 - Manual (Page 2)

Electrolux Dishwashing
Rack Type NERT - electric (R->L)
Internet: http://www.electrolux.com/foodservice
IEAA020
2012-07-26
Subject to change without notice
SIDE PRE-WASH AND WASH ARMS 864053 864053 864053 864053
RINSE BOOSTER PUMP-ELECTR.MECH.RACK TYPE 864052 864052 864052 864052
KIT 9 BASKETS FOR 1-TANK RACK TYPE DW 867051 867051 867051 867051
KIT 6 BASKETS FOR 1-TANK RACK TYPE DW 867050 867050 867050 867050
EL. HOT AIR BLOWER-R>L-600MM-ENTRY RT 864151 864151
EL. HOT AIR BLOWER-CORNER-R>L-ENTRY RT 864141 864141
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016
BASKET FOR 5 HALF INSULATED TRAYS-RED 867005 867005 867005 867005
ACCESSORIES
CONNECTION PLATE-HANDLING TO WT90/RT10 2 2 2 2
INCLUDED ACCESSORIES
Supply voltage 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50
Net weight - kg. 232 315 270 340
Total installed power - kW 27.5 36 32.1 40.6
boiler power - kW 16.5 16.5 21 21
boiler capacity - lt. 16 16 16 16
temperature - °C 80-90 80-90 80-90 80-90
Rinsing
pump power - kW 1.5 1.5 1.5 1.5
tank capacity - lt. 114 114 114 114
temperature - °C 55-65 55-65 55-65 55-65
1st wash
height/with open door 1454, 2050 1744, 2050 1924, 2050 1924, 2050
depth 824 824 824 824
width 1550 2150 1550 2150
External dimensions - mm
tank filling - °C 50 50 50 50
operation - °C 50 50 10-15 10-15
Water supply
Air emission - m³/h 500 500 500 500
Automatic start/stop ● ● ● ●
Capacity baskets/h 1st/2nd speed 100 100 100 100
Capacity dishes/h 1st/2nd speed 1800 1800 1800 1800
N° of speeds 1 1 1 1
Feeding direction from RH to LH from RH to LH from RH to LH from RH to LH
Power supply Electric Electric Electric Electric
Hot air blower ● ●
Condensing Unit ● ●
Model Basic -
Electromechanical
Basic -
Electromechanical
ECO -
Electromechanical
ECO -
Electromechanical
TECHNICAL DATA
V - Condensation outlet ● ● ● ●
HWI - Hot water inlet G 3/4" G 3/4" G 3/4" G 3/4"
EI - Electrical connection 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50 400 V, 3N, 50
D - Water drain 50mm 50mm 50mm 50mm
CWI - Cold water inlet G 3/4" G 3/4" G 3/4" G 3/4"

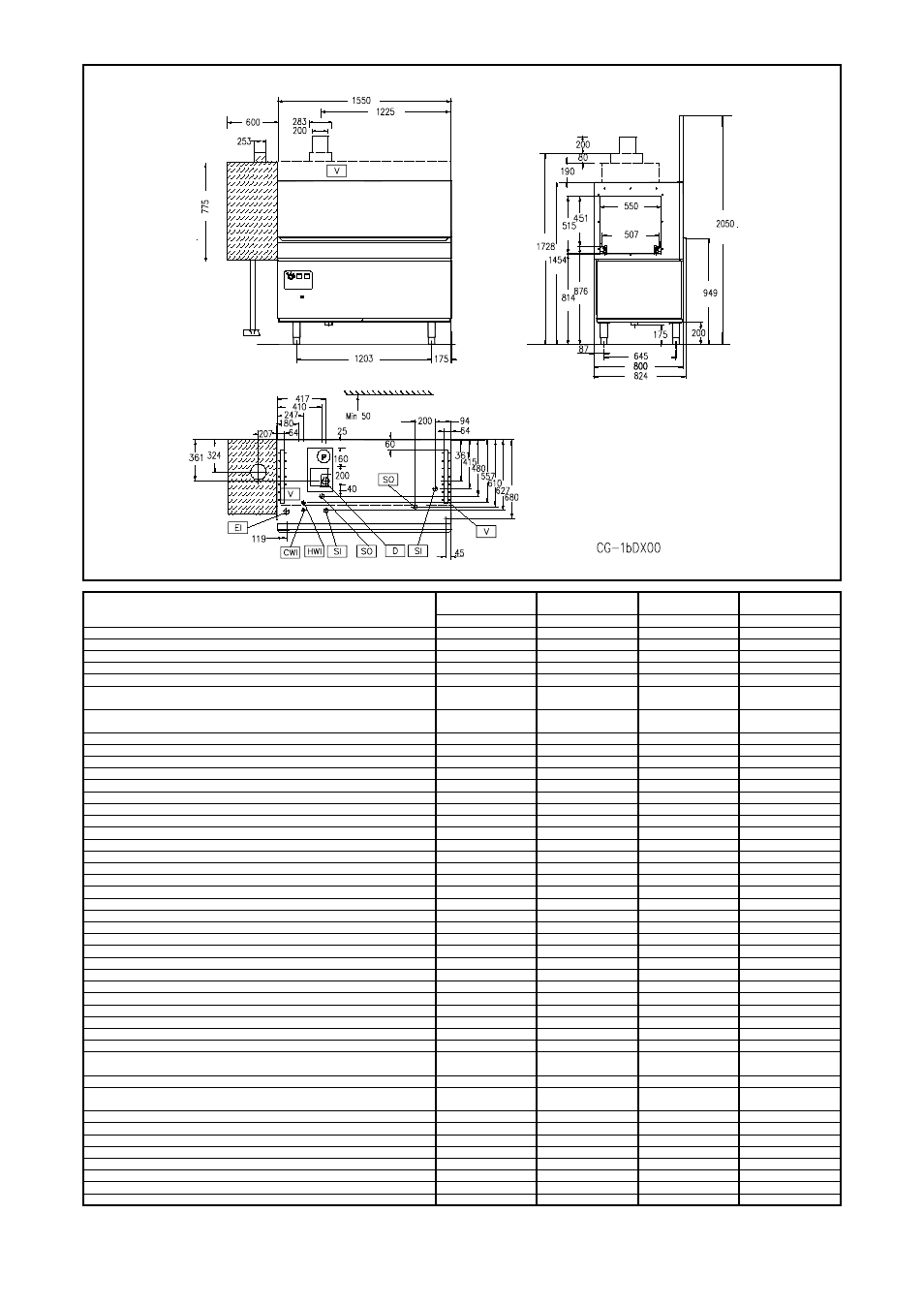

LEGEND
NERT10ER
533300
NERT10ERB
533314
NERT10ERC
533330
NERT10ERCB
533344
533300, 533344, 533330, 533314
