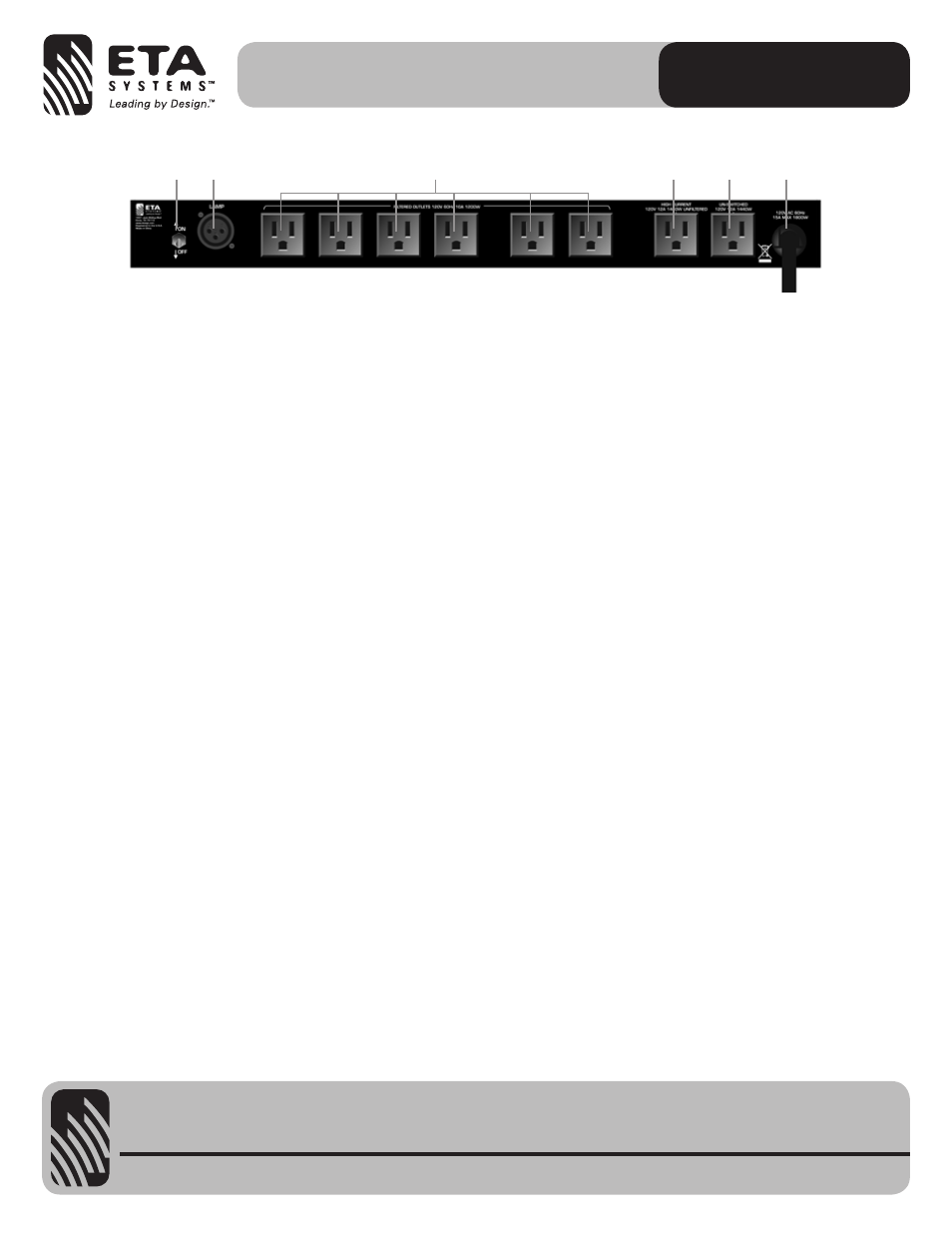

REAR PANEL FEATURES
1. AC Mains Input – Connect the 9' (3m) power cord to a 15A 120VAC outlet to provide power to the ETA-C15D.
2. AC Filtered Outlets – The six AC outlets are “Live” when the power switch is activated. These outlets are recommended for
products such as Computers, Modems, Routers, DSP Processors, Cable/SAT, DVD, or CRT TVs. These outlets have a special filter
circuit that is optimized to reduce interference to your Digital and Analog components. The total maximum draw for this section is
10A and the total current draw for the ETA-C15D is 15A.
3. AC High Power Outlet – This outlet is designed to deliver maximum current to power hungry components like amplifiers and
projectors. It does not harm low power consuming components when connected to this outlet.
4. Unswitched AC Outlet – This 120VAC outlet is always live when the ETA-C15D power cord is plugged into an AC mains power
source and voltage is present. If voltage is present at the outlets it will be displayed on the AC Mains Meter. Note: The AC mains
power switch does not affect the Unswitched AC Outlets. The Unswitched Outlets are protected by the surge protection circuitry
but will not be shut off by the EVS circuit.
5. XLR Light Socket – A 12VDC XLR light socket provides power for the optional AP-GNL18 light.
6. Light Socket Power Switch – This switch turns the XLR light socket ON / OFF.
INSTALLATION
Before installing we strongly suggest you read the entire manual to ensure you benefit from all the features of the ETA-C15D. The
ETA-C15D can be placed on a shelf or rack mounted in a standard 19" width rack. Placement within a rack is not critical but the rack
should be within 6' of a dedicated 15A AC outlet. Always make sure the 15A outlet is properly inspected by a certified electrician prior
to connecting the ETA-C15D. Below are a few installation tips.
• After plugging the ETA-C15D into a 15A AC Mains outlet inspect the Wiring Fault LED for illumination. The LED should not be on.
• Inspect the equipment that is to be plugged into the ETA-C15D to ensure it does not exceed 15A total amperage draw.
• Divide the equipment into two categories. Pick the outlets that match the outlet's equipment use.
ETA-C15D
Power Conditioner
1 4 3 5 6 2
