Touch Interface Connection
Your touchmonitor comes with one of the following touchscreen connector
cables: Serial (RS-232) cable or USB cable. (For Windows 98, 2000, Me and
XP systems only.)
To set up this display, please refer to the following figures and procedures:
Serial or USB Connection

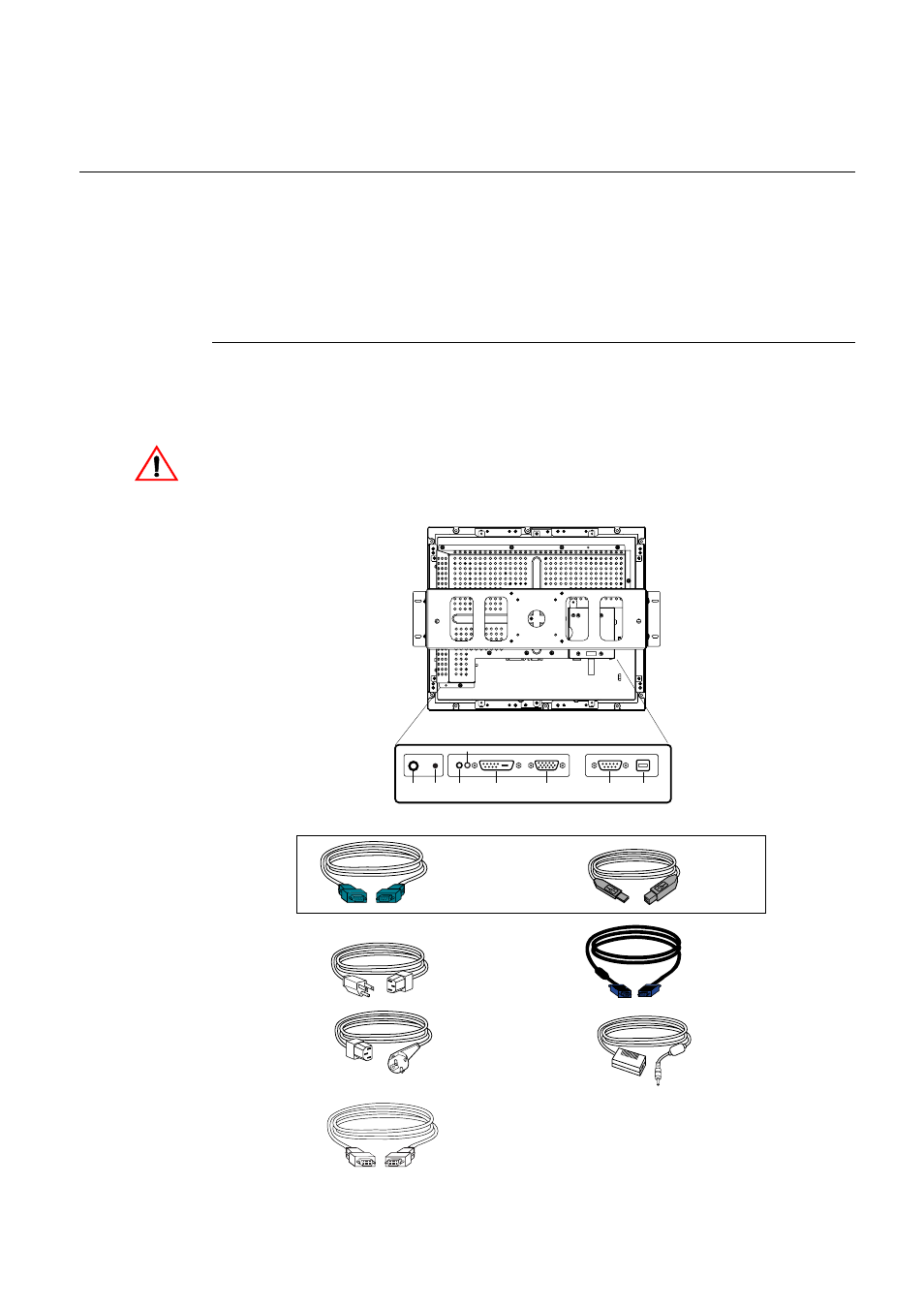

The following illustrations guide you step by step in connecting your
touchmonitor using a serial or USB cable connection
CAUTION Before connecting the cables to your touchmonitor and PC, be sure that the computer
and the touchmonitor are turned off.
European monitor
power cable
Monitor
power cable
(US/Canada)
Serial touchscreen
cable
Video cable
Adapter
USB Cable or
2- 11
DVI-D Video Cable
POWER
SWITCH POWER FEMALE DVI-D
VIDEO CONNECTOR
FEMALE 15-PIN
VIDEO CONNECTOR
FEMALE 9-PIN SERIAL
TOUCHSCREEN CONNECTOR
USB CONNECTOR
CONNECTIONS ON UNDERSIDE
OSD
REMOTE
SPEAKER
