2
LENS AVAILABLE
* Standard board lens f=3.6 mm, F=2.0 mm.
* Other available lens : 4 Lens f=4.3 mm, F=2.0 mm
6 Lens f=6.0 mm, F=2.0 mm
8 Lens f=8.0 mm, F=2.0 mm
INSTALLATION
1. Remove the plastic dome cover.
2. Loosen the two screws of the supporting bracket to remove the camera body.
3. Using four screws to fix the camera base on the ceiling.
4. Put the camera body back to the supporting bracket, the connector of the back panel
should always be placed to camera’s left lower corner, in order to obtain the image of best

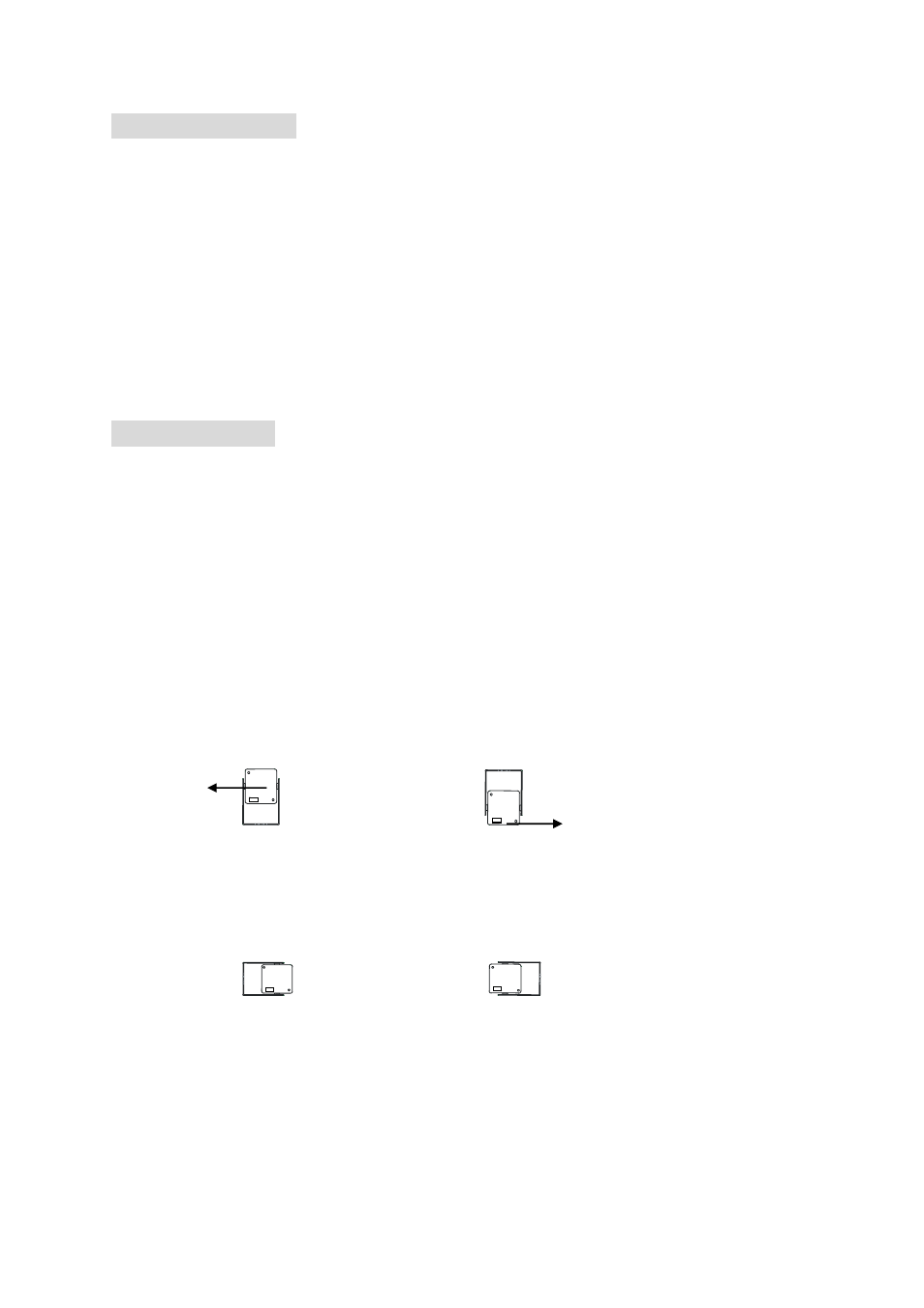

quality. Tighten the 2 screws to fix the camera. Please refer to the back panel diagram
shows as below:
a. Floor Mount b. Ceiling Mount
c. Wall mount, aim to the right d. Wall mount, aim to the left
Main
Board
Bottom Connector
