10

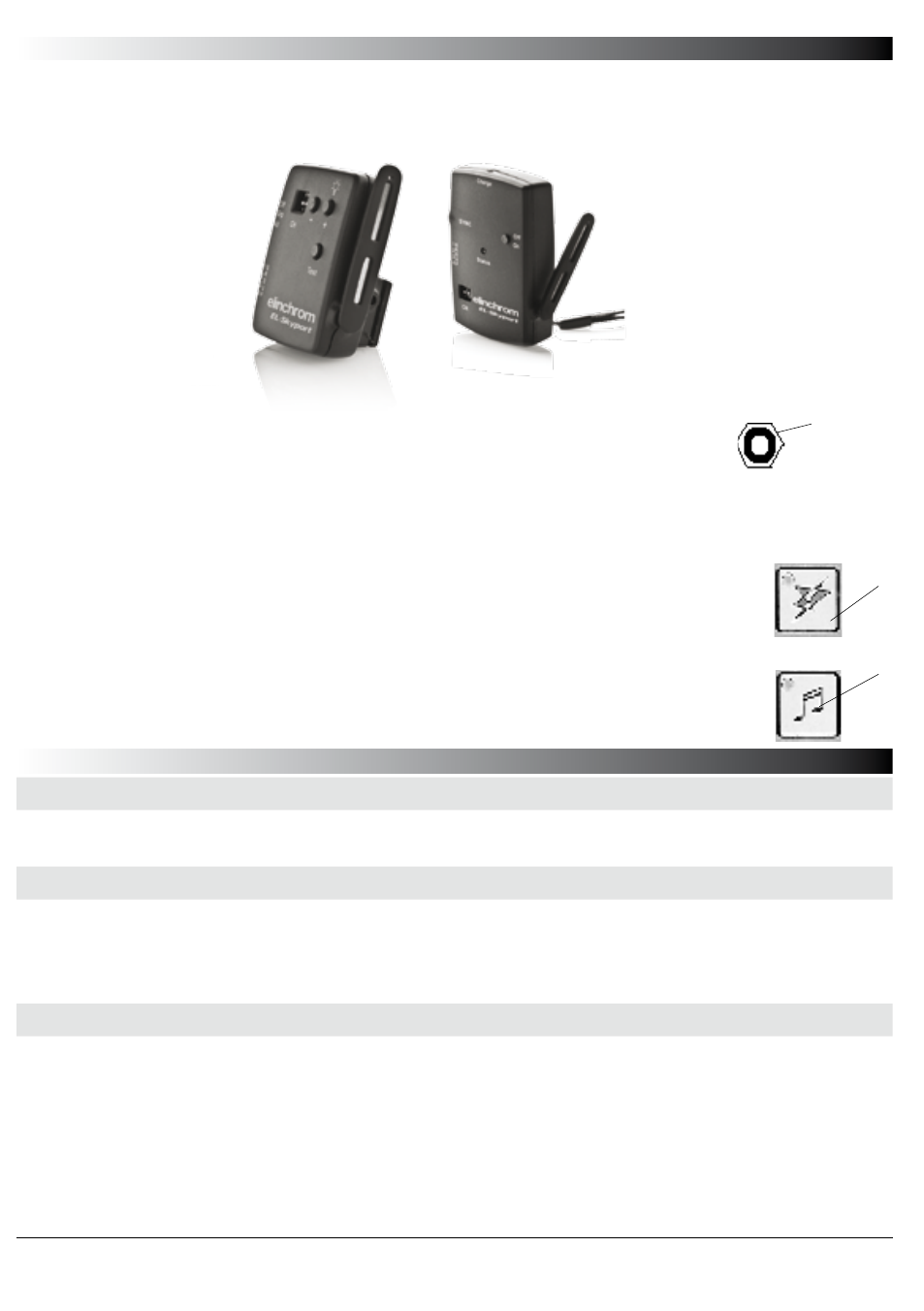

EL-Skyport triggers flashes without sync cords over a distance of approximately 100 m. Further
detailed information please find under :
www.elinchrom.com / Products / RX Multi Remote
Open flash "test"
Having pressed the touch pad to release a flash, the green «READY» light will
appear again once the unit is recharged. If the green light does not appear the
charge system could be defective.
Please contact and send to an authorized Elinchrom service.
Audible recharge signal
Select the function with the touch pad (8), the green indicator appears.
Once recycled an acoustic signal indicates that the compact unit is ready.
5
6
Sync
Test and Ready
8
Beep
EL-Skyport Universal Set
(19360)
Transmitter Universal receiver
The standard socket 3.5 mm mini-jack (6).
N.B. Do not link ELINCHROM units by cable to other manufacturers sync
outlets. ELINCHROM uses the low voltage (5 V) for security reasons.
Troubleshooting
1. The mains switch (3) is ON ("I" position), but not light up:
• Switch OFF the unit and change the mains fuse (2)
• Use only time-lag fuse (16 AT), corresponding to the Style RX model
2. The switch (3) is lit, the open flash ready is lighting up but does not function.
• The flashtube in the flashhead may be faulty (see page 11)
• If replacing the flashtube does not solve the problem, the cause could be a
component failure => please return the unit to an authorised Elinchrom service.
3. The ON/OFF switch (3) is lit but the open flash signal (6) is not lit
• Temporary break for overheating, caused by fast flash sequences or ventilation
slots obturated
• Fan cooling defective => the unit turns off automatically and cannot be fired any
more. After a break for cooling, the flash is ready again for operation.
• If after several minutes of break for cooling the ready signal (6) is not lit, the cause
could be a component failure. However, high voltage may remain on the capacitor
circuits. => DO NOT ATTEMPT TO REPAIR THE UNIT. In this case please send the unit
to an authorised Elincrom station.
Cordless flash control
Sychronisation socket
