Replacing the LCD Panel

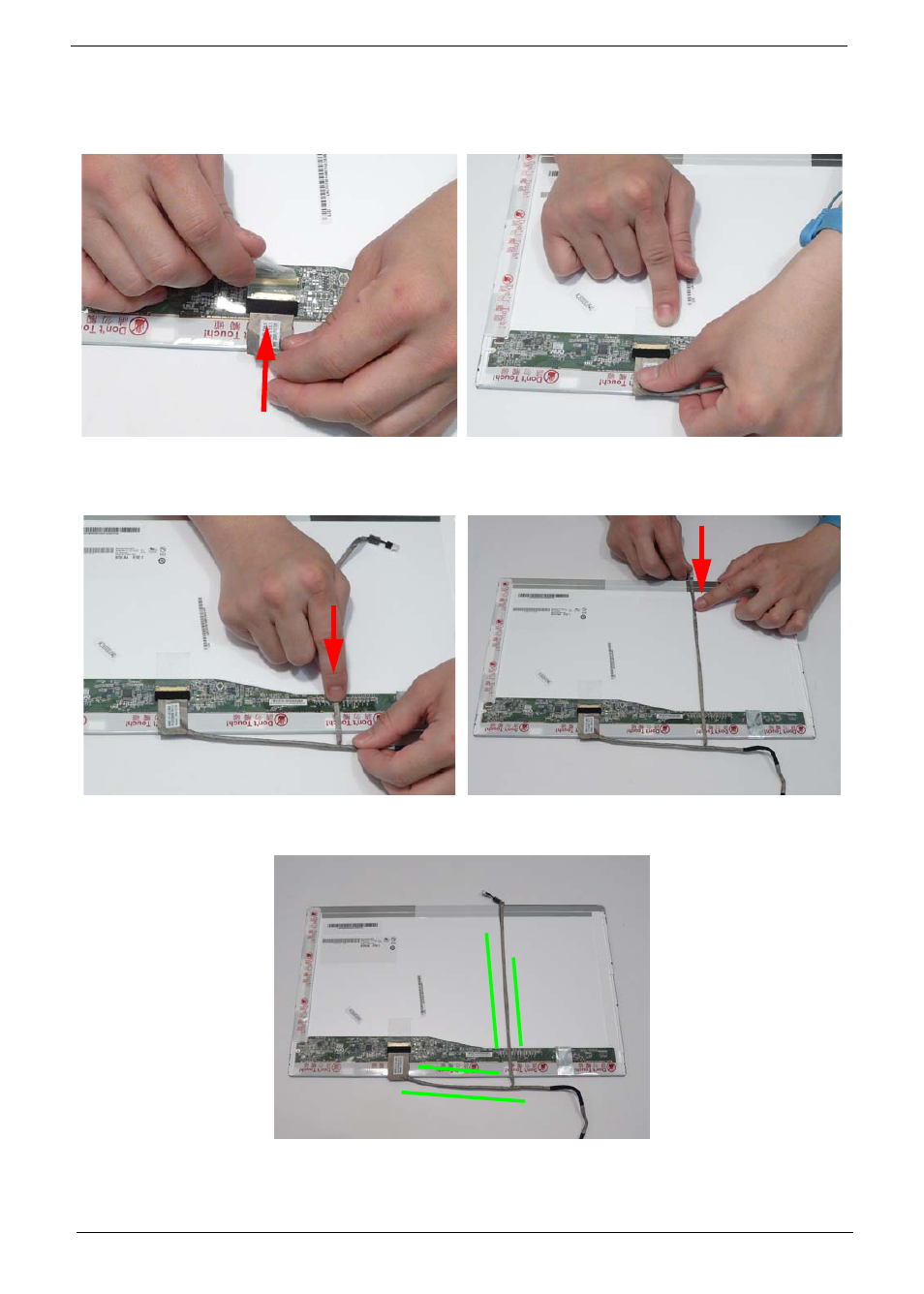

1. Connect the LCD cable to the panel connector as
shown.
2. Press down the adhesive strip to secure the cable
in place.
3. Run the cable along the back of the panel and
press down as indicated to secure the cable in
place.
4. Run the cable across the back of the panel as
shown and press down as indicated to secure the
cable in place.
IMPORTANT: Ensure that the LCD cable runs between the green callouts to avoid trapping when the panel is
replaced in the LCD Module.
