Chapter 3

NOTE: Avoid pulling on cables directly to prevent damage to the connectors.

NOTE: Use the pull-tabs on FFCs whenever available to prevent damage.

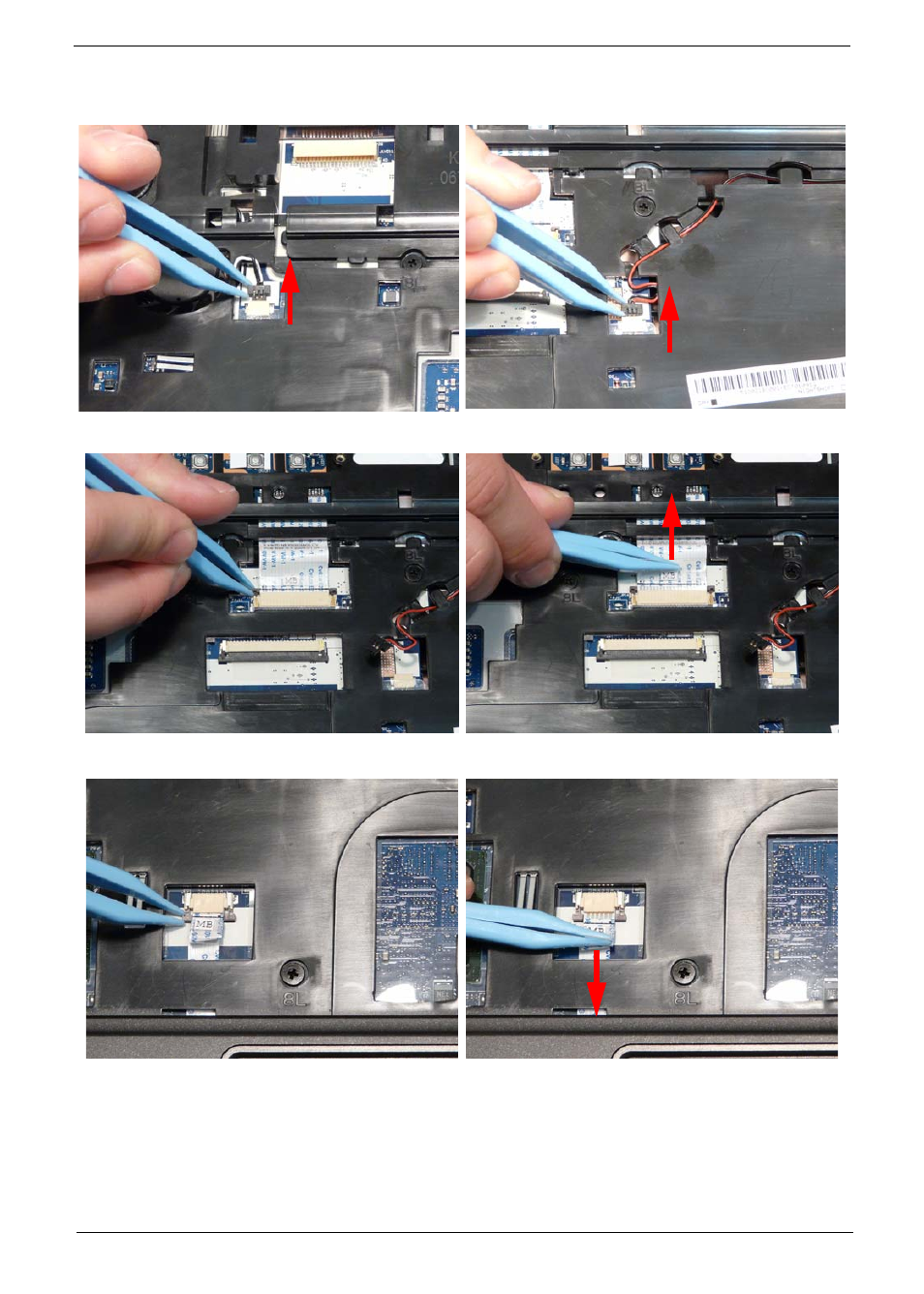

5. Disconnect A as shown.

6. Disconnect C as shown.

7. Release the locking latch on B and remove the FFC cable as shown.

8. Release the locking latch on D and remove the FFC cable as shown.
