4-24 Elo Entuitive Touchcomputer User Guide

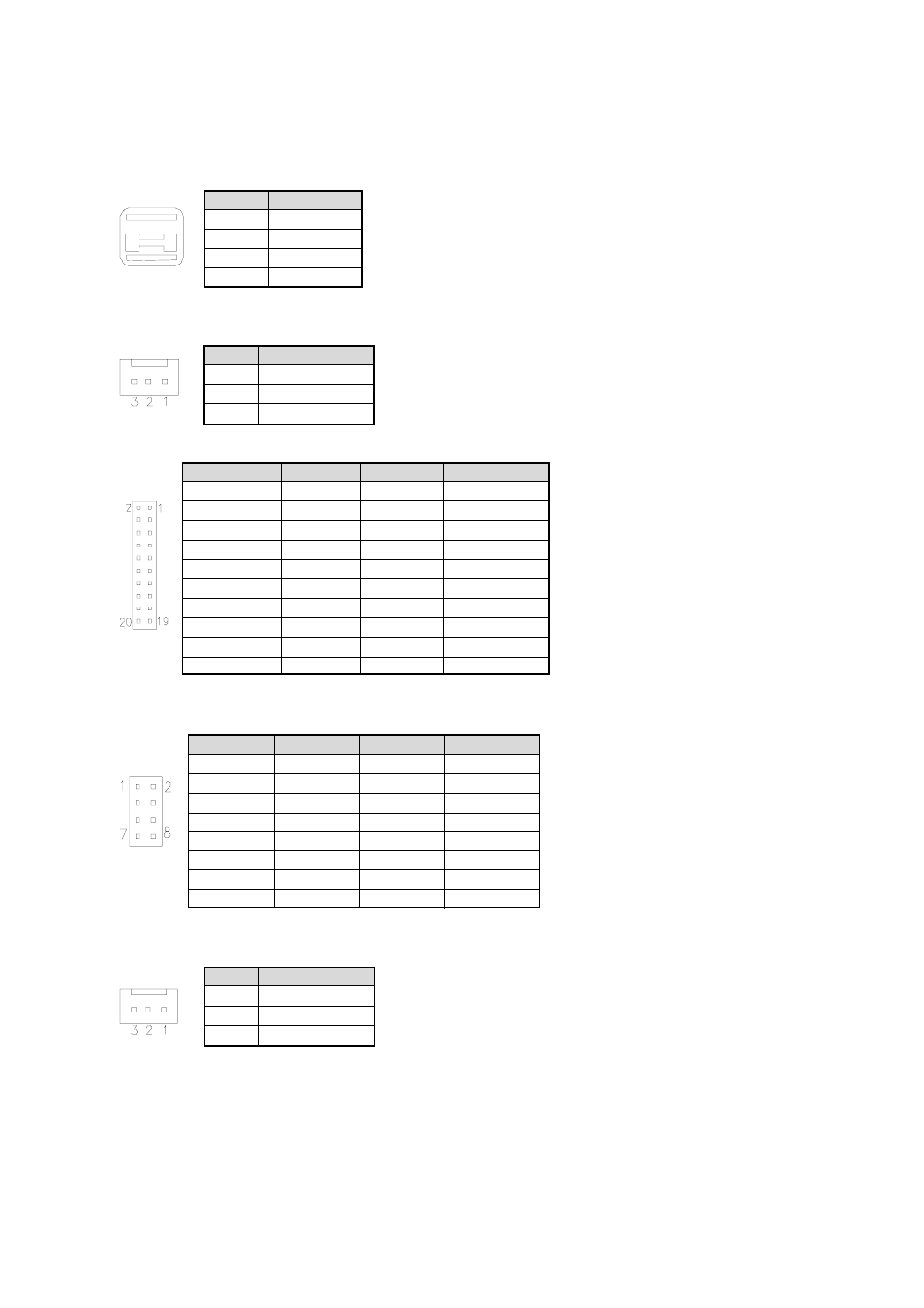

USB1, USB2: USB Connectors
Pin # Signal Name
1 Vcc
2 USB-
3 USB+
4 Ground
J9: System Fan Power Connector
J9 is a 3-pin header for an optional fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
J11: 24-bit LVDS Connector (DF13-20)
Signal Name Pin # Pin # Signal Name
TX0- 2 1 TX0+
Ground 4 3 Ground
TX1- 6 5 TX1+
5V/3.3V 8 7 Ground
TX3- 10 9 TX3+
TX2- 12 11 TX2+
Ground 14 13 Ground
TXC- 16 15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20 19 +12V
J13: VGA CRT Connector
J13 is an 8-pin header for an optional external VGA CRT female connector.
Signal Name Pin Pin Signal Name
Red 1 2 Vcc
Green 3 4 Ground
Blue 5 6 N.C.
N.C. 7 8 N.C.
Ground 9 10 H-Sync
Ground 11 12 V-Sync
Ground 13 14 N.C.
Ground 15 16 N.C.
J14: System Fan Power Connector
J14 is a 3-pin header for the optional system fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
