36 GB/MT
Electric planer PEH 30 A1
Q
Introduction
Please make sure you familiarise your-
self fully with the way the device works
before you use it for the first time and
that you understand how to handle electrical power
tools correctly. To help you do this please read the
accompanying operating instructions. Keep these
instructions in a safe place. If you pass the device
on to anyone else, please ensure that you also
pass on all the documentation.
Q
Proper use
The device is suitable for planing wood in the form
of beams or boards or the like if the workpiece is
held securely in a fixed position. The device is also
suitable for chamfering edges and for rebating.
Any other use or modification to the device shall be
considered as improper use and could give rise to
considerable risk of accident. The manufacturer will
not accept liability for loss or damage arising from
improper use. Not suitable for commercial use.
Q
Features and equipment
1 Safety lock-out
2 oN / oFF switch
3 Planing debris removal port (right / left selectable)
4 Belt cover
5 Belt cover screws
6 Guide fence
7 Guide fence fixing screws
8 Fixing nut for setting rebate width
9 Sole
10 V-groove
11 Rebate depth stop fixing screw
12 Rebate depth stop
13 Rotary control for setting planing depth
14 Cutting depth scale
15 Reducer piece
16 Parking shoe
17 Blade shaft
18 Cutting element
19 Plane blade fixing screws
20 Plane blade
21 Side blade shaft guard
22 Allen key
23 Drive belt
24 Large belt wheel
25 Small belt wheel
26 open spanner
Introduction Introduction / General safety advice for electrical power tools

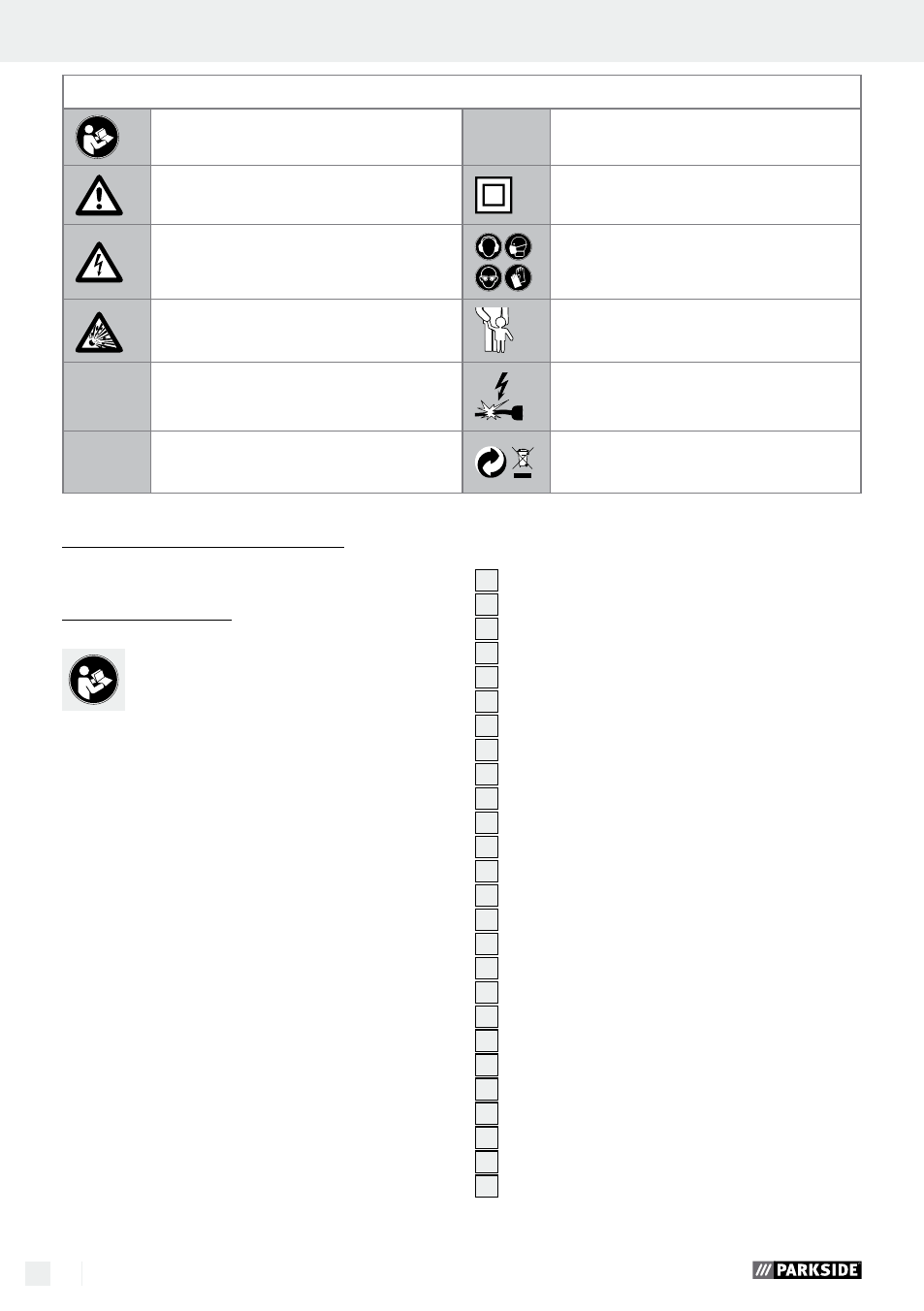

The following pictograms are used in these operating instructions / on the device:
Read instruction manual!
n
0
Design no-load speed
observe caution and safety notes! Safety class II
Caution – electric shock!
Danger to life!
Wear hearing protection, dust protec-
tion mask, protective glasses and
protective gloves.
Explosive material!
Keep children away from electrical
power tools!
V~
Volt (AC)
Check that the device, mains lead
and plug are in good condition!
W
Watts (Effective power)
Dispose packaging and appliance in
an environmentally-friendly way!
