USER GUIDE
©
Escort Data Logging Systems LTD DATED: 03/07/07 PAGE 13
•
Changing Printer Paper & Ribbon
Printer Paper Role Replacement
The ChartReader uses standard 57mm wide paper or 2 layer 57mm wide NCR type
duplicating paper.
To replace the paper roll perform the following steps:
NEVER PULL PAPER BACKWARDS THROUGH PRINTER MECHANISM AS
IRREPARABLE DAMAGE WILL RESULT!
n
Open the hinged lid by springing the plastic clip at the rear of the case and lift the lid
open.
o
Remove the short length of paper remaining in the printing mechanism by:
z using the small FEED button located on the circuit board to the left of the printer
mechanism, or
z using the manual wheel (if present), or
z gently pulling the paper through the mechanism by hand in normal
direction.

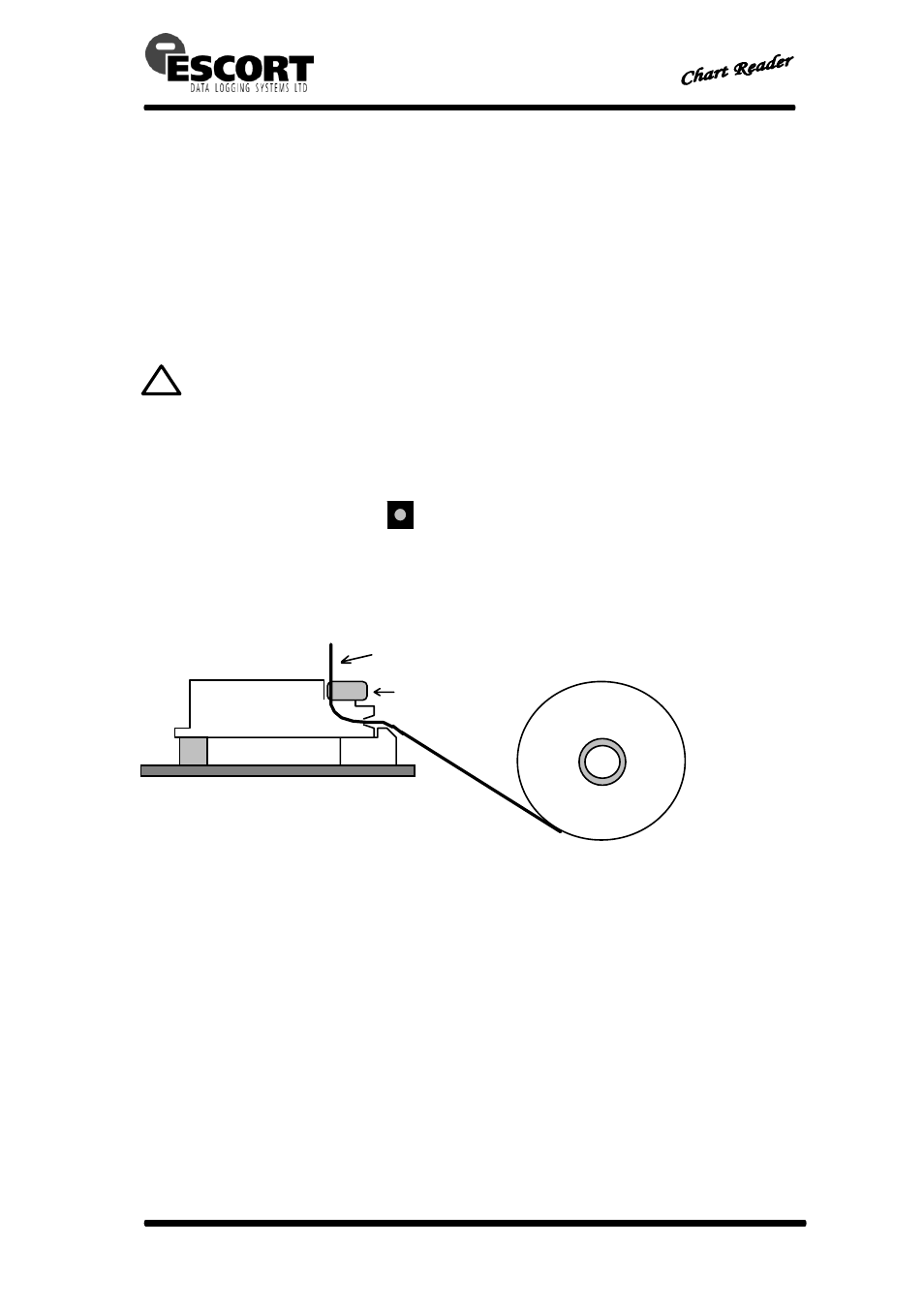

PAPER LOADING PATH
Feed through
Approx 6mm
Ribbon Cassette
p
Remove old roll core from the holding fingers and insert the new roll with the paper
direction as shown in the diagram above.
q
Free the end of the new paper and ensure that the end is cut reasonably straight and
square. Trim with scissors if necessary.
r
Take the free end of the paper and gently push it over the plastic ramp and into the
mouth of the printer .
s
By using the manual feed knob (if present) or the FEED button (with power ON), feed the
paper through the mechanism, past the ink ribbon and leave about 6mm (¼ inch) of paper
protruding from the top of the mechanism.
t
Tighten the ink ribbon in it's cassette by turning the star shaped disc (on the left of the
cassette) 2 or 3 turns clockwise.
u
Close the case lid making sure the paper feeds through the gap in the lid and secure the
lid catch.
!
