– – 2

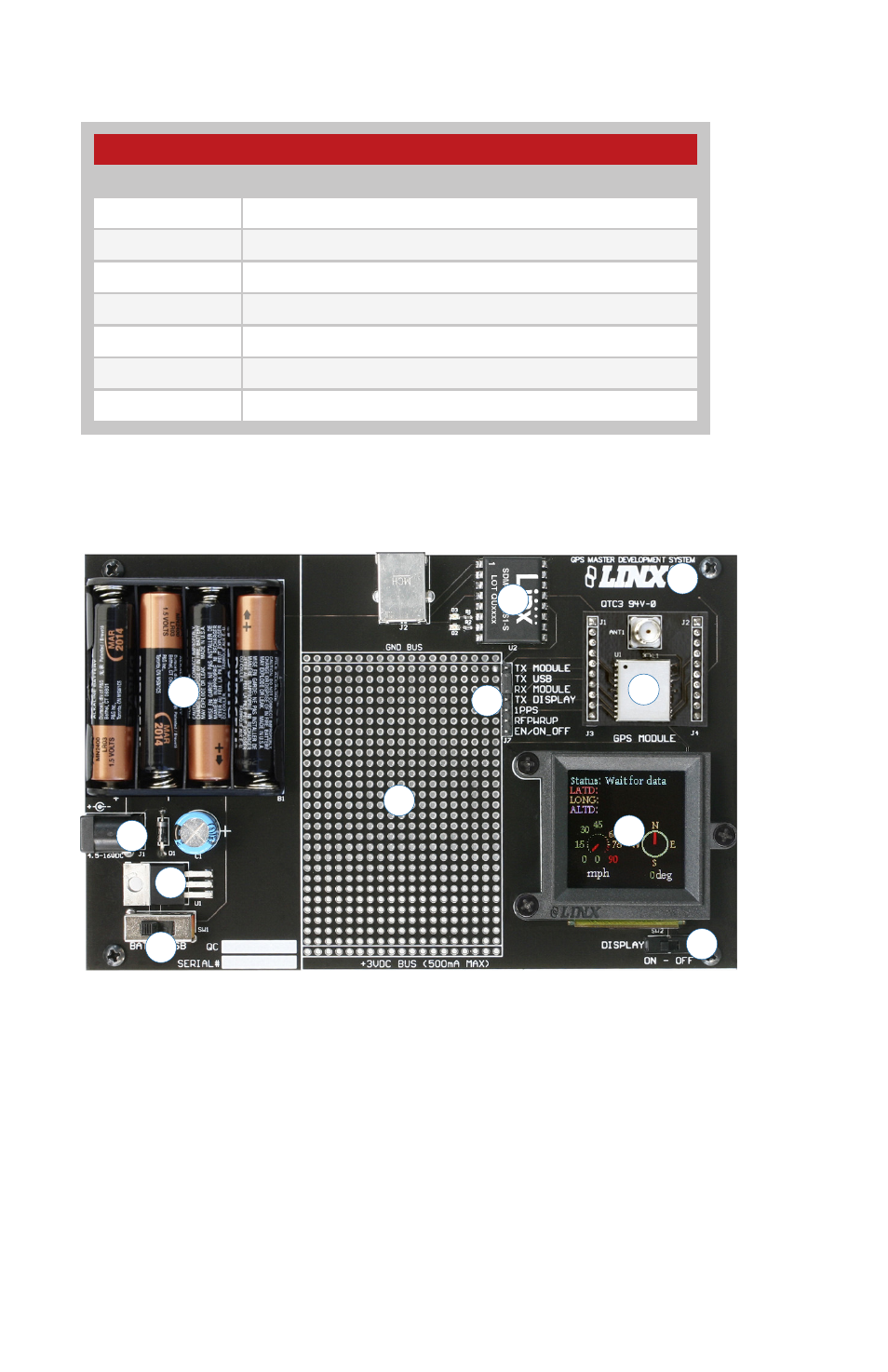

Board Objects
R4/F4 Series Receiver Development Board
1
2
3
4
5
6
7
8
9
10
11
Ordering Information
Ordering Information
Part Number Description
MDEV-GPS-R4 R4 Series Master Development System
MDEV-GPS-F4 F4 Series Master Development System
EVM-GPS-R4 R4 Series Master Development System Daughter Board
EVM-GPS-F4 F4 Series Master Development System Daughter Board
RXM-GPS-R4-x R4 Series GPS Receiver Module
RXM-GPS-F4-x F4 Series GPS Receiver Module
ANT-GPS-SH SH Series GPS Antenna
1. Four AAA Batteries
2. DC Power Jack
3. Power Switch
4. Voltage Regulator
5. USB Interface Module
6. Prototype Area
7. Break-Out Header 8. R4/F4 Series Receiver Daughter
Board
9. CR2032 Backup Battery (on the
back)
10. OLED Display
11. OLED Display Power Switch
Figure 2: Ordering Information
Figure 3: R4/F4 Series Receiver Development Board
