Full-Gas Freestanding Range
E36GF76HPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway
•
Augusta, GA 30907
•
1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
electroluxicon.ca
E36GF76HPS 02/09
© 2009 Electrolux Home Products, Inc.
Printed in the U.S.A.

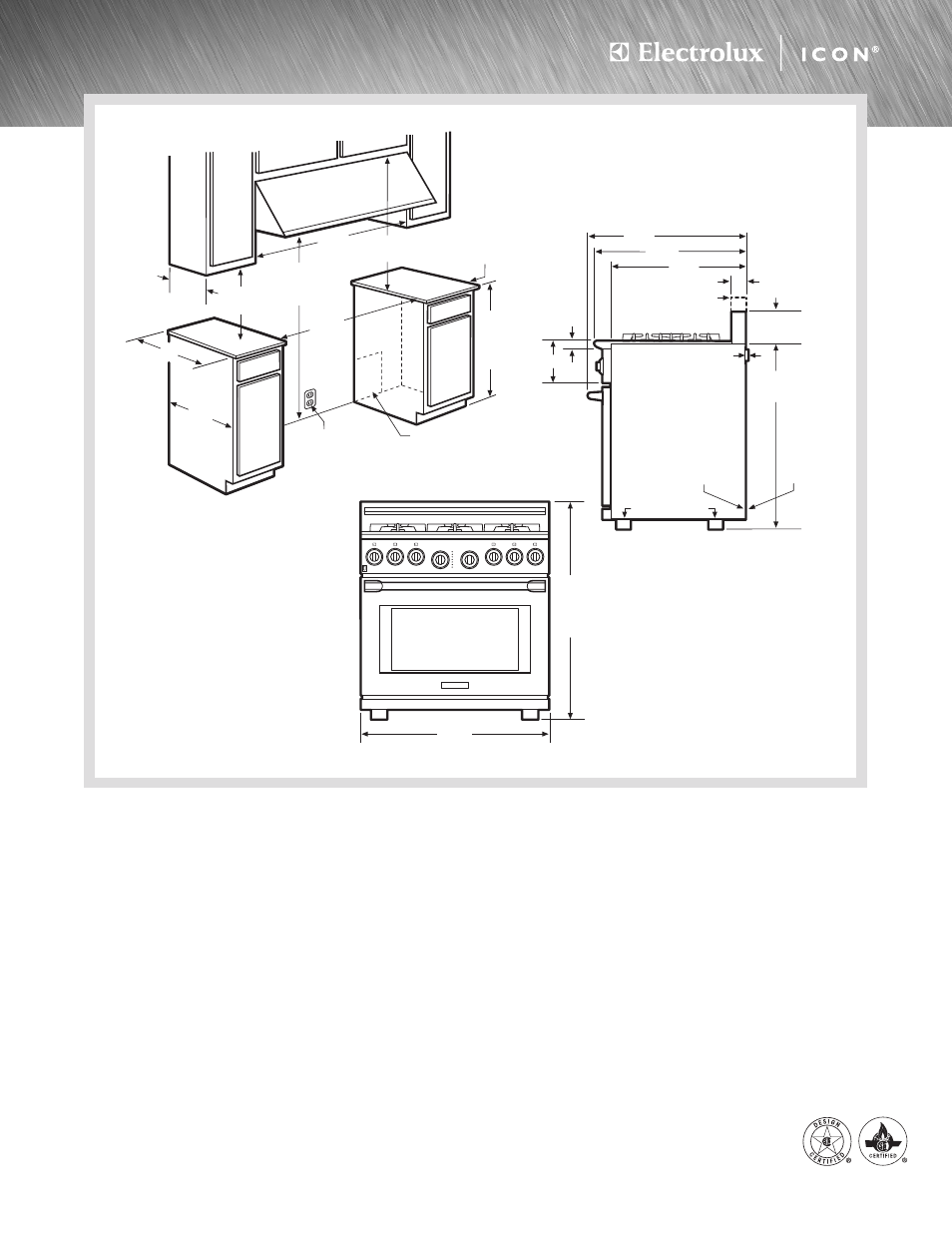

36" Full-Gas Freestanding Range Specifications
•
Product Weight – 352 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amp
•
Connected Load (kW Rating) @ 120 Volts = 0.6 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 7 Amps
•
Always consult local and /or national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
Natural gas only.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 34" minimum clearance between top of rangetop and bottom
of unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 7" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
9" Stainless Steel Backsplash – (PN # 903134-9100).
•
Stainless Steel Island Trim Kit (for use in place
of backsplash) – (PN # 903132-9100).
•
4" Stainless Steel Kick Plate – (PN # 318352652).
•
Black Knobs Kit – (PN # 903108-9020).
35
7
/
8
"
Front
41
5
/
8
"
min.
42
5
/
8
"
max.
Gas inlet
location
(center
bottom
rear)
1
9
/
16
"
28
1
/
2
"
28
1
/
16
"
24
3
/
4
"
Standard 6"
backsplash
Side
7
3
/
4
"
2
1
/
4
"
Power
supply
location
(right
bottom
rear)
35
3
/
4
" min.
36
3
/
4
" max.
Depth including oven door in
90
°
open position – 47
3
/
8
"
adjustable legs
Optional 9"
1
/
2
"
13"
max.
25"
24"
min.
24
1
/
2
"
max.
7" min.
to nearest
combustible
wall (either
side of unit)
18"
min.
36
1
/
16
"
Vertical
noncombustible
surface
35
3
/
4
"
min.
36"
stand.
34"
min.
35
7
/
8
"
min.
Recommended
location for 120V/60 Hz
grounded electrical
wall outlet
8" x 12" opening to route gas
supply can be located in cabinet
on either side of range
E36GF76HPS
