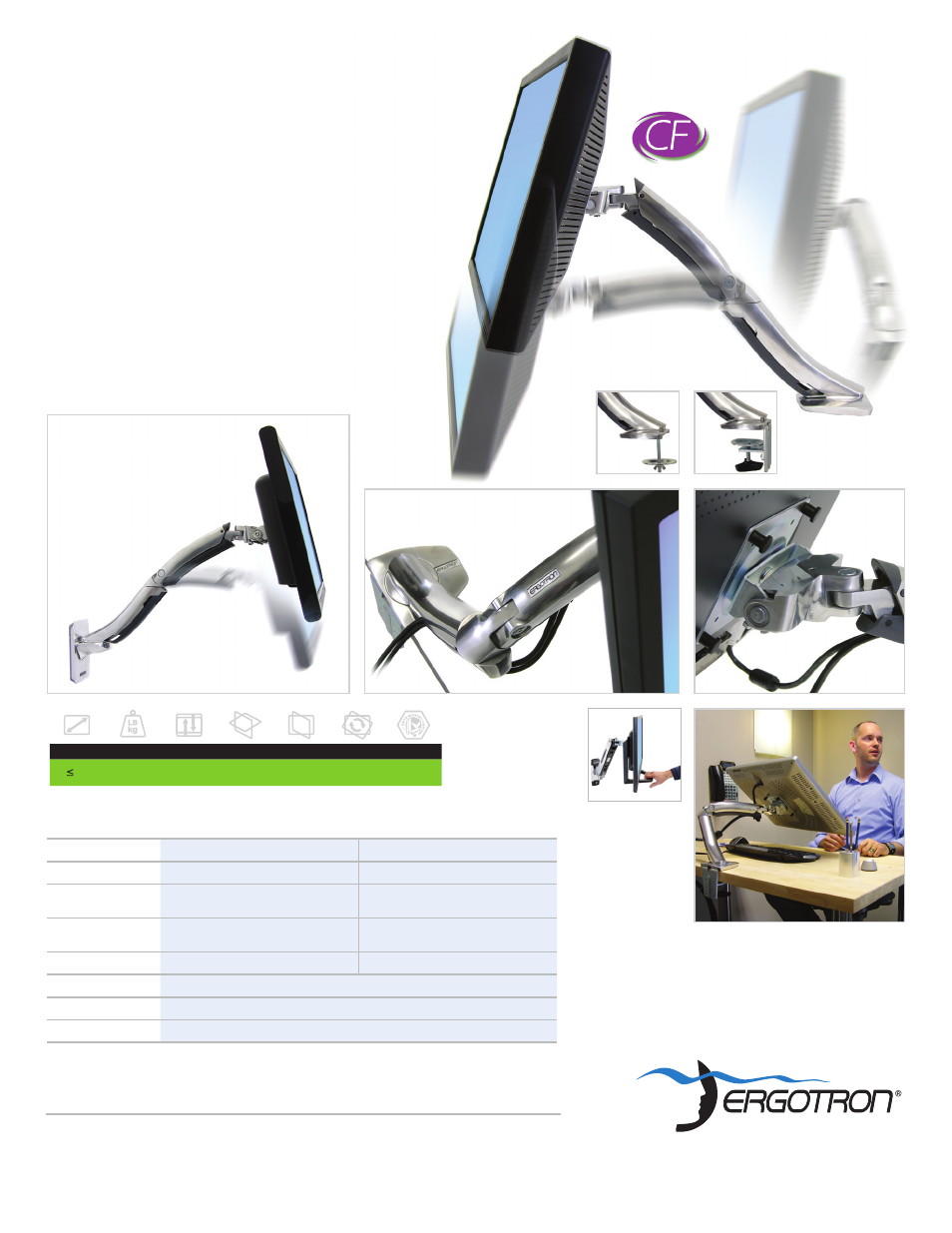

• Patented Constant Force (CF) lift-and-pivot motion technology
• Portrait/landscape rotation includes position lock
• Desk mounting options: desk clamp attaches to surface edge 0–2.6
(0–66 mm) thick; grommet mount attaches through surface holes
.31–2 (8–51 mm) wide and up to 3 (80 mm) thick
• Mounting standards: VESA FDMI, MIS-D, 75/100, C (hole patterns =
100 x 100 mm and 75 x 75 mm). Optional VESA Bracket Adaptor Kit
(97-474) can be ordered separately for MIS-E and MIS-F interfaces
(hole patterns = 200 x 100 mm, 200 x 200 mm and 400 x 200 mm)
• Weight capacity: 14–30 lbs (6.3–13.6 kg)
• 16.7 (42 cm) extension
• Cable management feature conceals and routes cables under the
arm, out of the way
• Pans at base 180°; rotates at extension 360°; pans at monitor 180°
• Rotate screen for portrait viewing of photos and pages—eliminate
scrolling
• Warranty: five (5) years
Product Name
MX Desk Mount LCD Arm
MX Wall Mount LCD Arm
Part Number
45-214-026 (polished aluminum)
45-228-026 (polished aluminum)
Product Includes
MX Desk Mount Arm, desk clamp
and grommet mount
MX Wall Mount Arm
Shipping Dimensions
25.6 x 7.3 x 6.3
(650 x 185 x 160 mm) LWH
29.25 x 10.5 x 6.5
(745 x 265 x 160 mm) LWH
Shipping Weight
9 lbs (4.2 kg)
10.25 lbs (4.65 kg)
Warranty
5 years
Weight Capacity
14–30 lbs (6.3–13.6 kg)
Compatible Display(s)
Most VESA-compliant monitors/HDTV displays up to 30 diagonal in size
LCD Size LCD Weight*
Lift
Tilt
Pan
Rotation**
VESA
30
14–30 lbs
6,3–13,6 kg
5
13 cm
80°
360°
90° w/lock
MIS-D
* Monitor depth greater than 4 (102 mm) may diminish capacity. Contact Ergotron for more information
** Portrait mode is incompatible with 30 displays on Desk Mount Arm
Motion range may be limited when using larger displays and/or by the position of the VESA hole pattern on the back of the display
Monitor & Handle Kit
(black)
97-760-009
Dual Monitor
& Handle Kit
(black)
97-718-009
