Doc#: TG.MCD.11.421 Yaskawa America, Inc. Drives & Motion Division

2011 June 6, 2011 Page 9 of 21

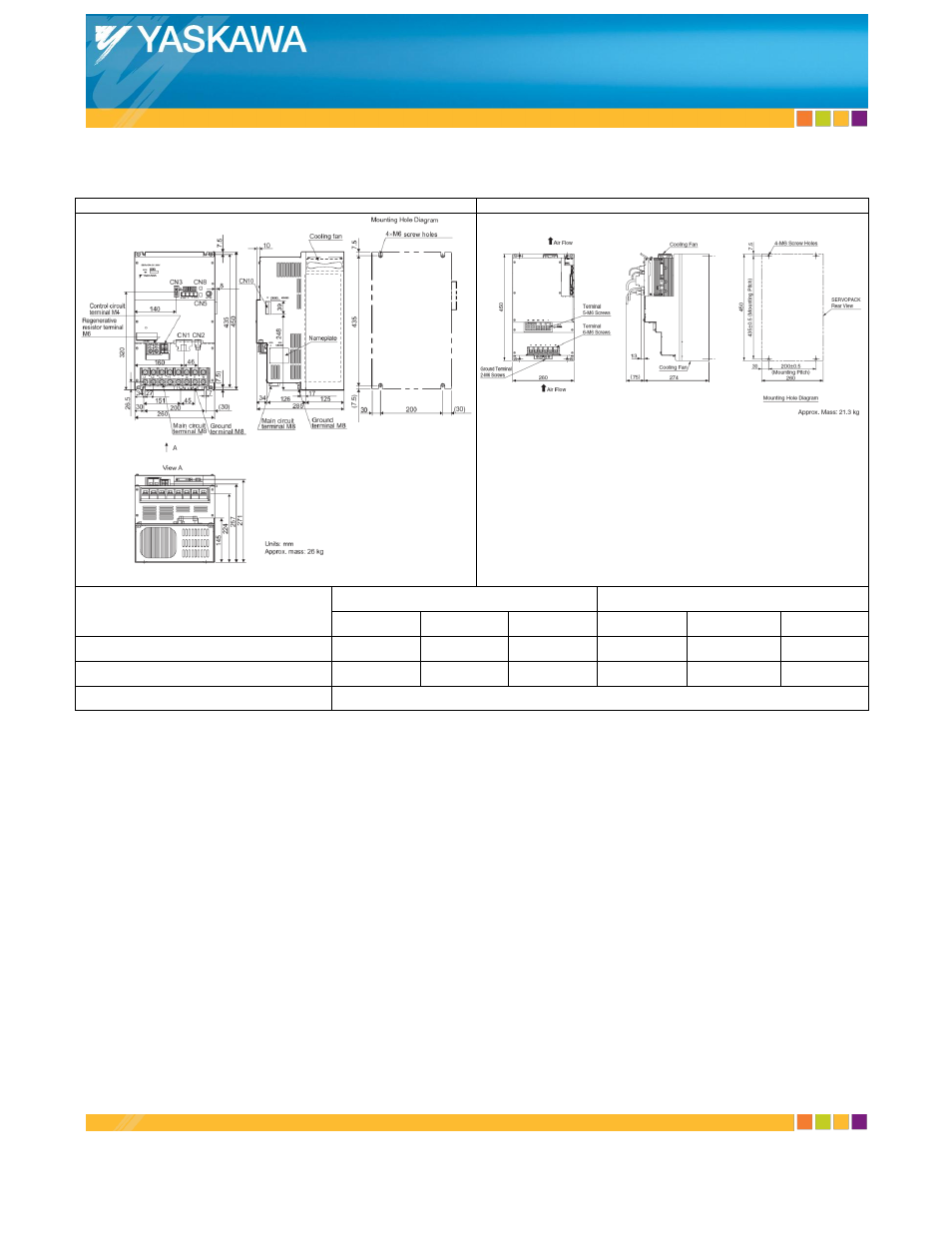

Three-phase 200 VAC, Model: SGDH-1AAE and -1EAE Three-phase 200 VAC, Model: SGDV-590A  A and -780A  A
Amplifier
Overall Dimensions Mounting Dimensions
Height (mm) Width (mm) Depth (mm) Vertical Pitch Horizontal Pitch Hole Type
SGDH-1AAE and -1EAE 450 260 285 435 200 4 x M6
SGDV-590A  A and -780A  A 450 260 (324) 435 200 4 x M6
Applicable Adapter Plate Not Required.
