Internal/Flush-Mount
An internal/flush-mount requires an installation support set that must be purchased separately. Contact Yaskawa to order an
installation support set and mounting hardware. Figure 2.9 illustrates how to attach the Installation Support Set A.
1.
Cut an opening in the enclosure panel for the HOA keypad as shown in Figure 2.10 .
2.
Mount the HOA keypad to the installation support.
3.
Mount the installation support set and HOA keypad to the enclosure panel.
Enclosure panel
Unit: mm (in)
HOA Keypad
Installation Support Set A
M4 × 10
Phillips truss head screw × 4
(for panel widths between 1 (0.04) and 1.6 (0.06))
M3 × 6
Phillips recessed
pan head machine screw × 2

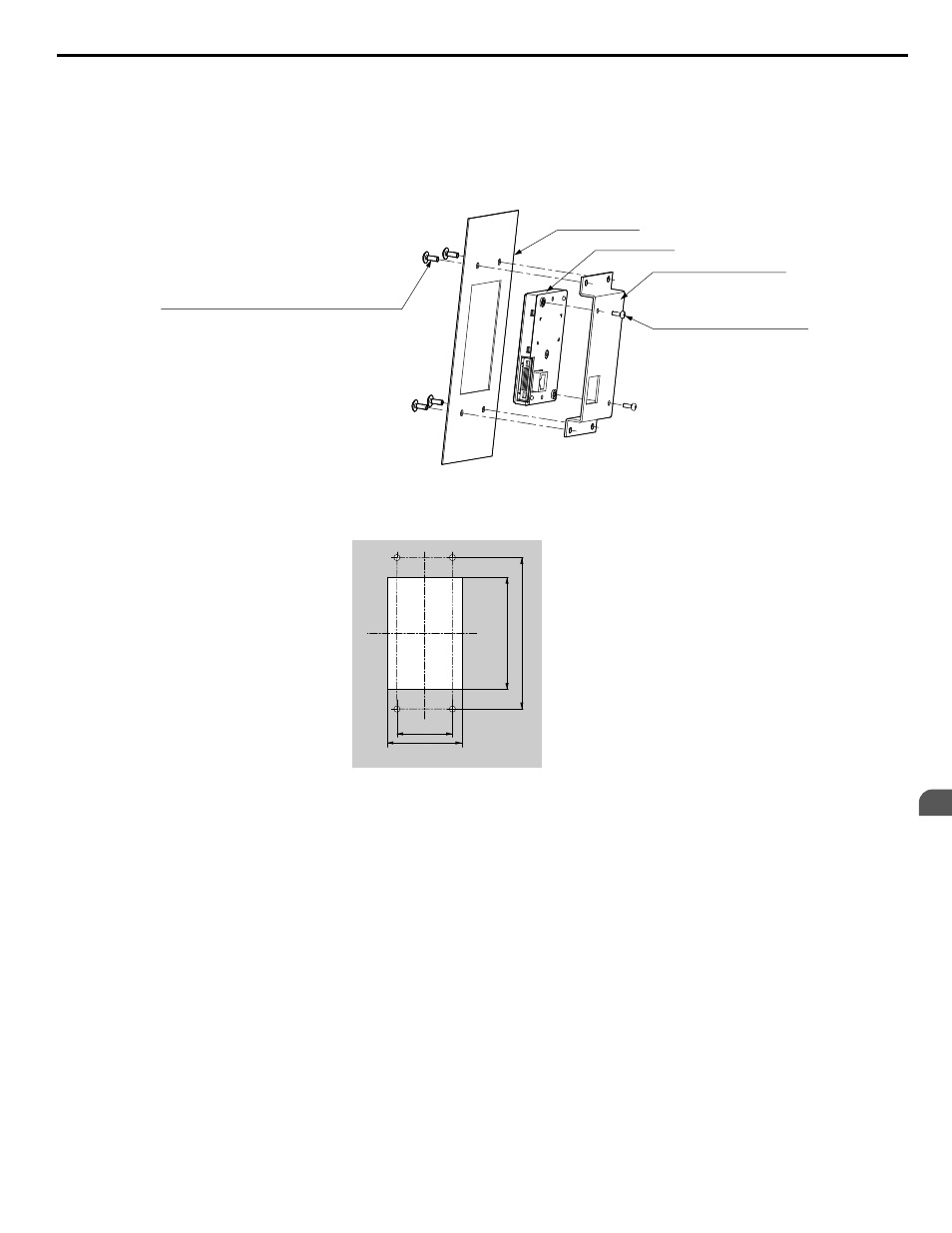

Figure 2.9 Internal/Flush Mount Installation
Note: Use a gasket between the enclosure panel and the HOA keypad in environments with a significant amount of dust or other airborne debris.
120 (4.72)
45 (1.77)
59 (2.32) +0.5 (0.02)
0
89 (3.5)
+0.5 (0.02) 0
Unit : mm (in)
Figure 2.10 Panel Cut-Out Dimensions (Internal/Flush-Mount Installation)
