Building In
Building over a cupboard or
drawer
If the hob is to be installed above a cupboard or drawer it
will be necessary to fit a heat resistant board below the
base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1 and 2.
F

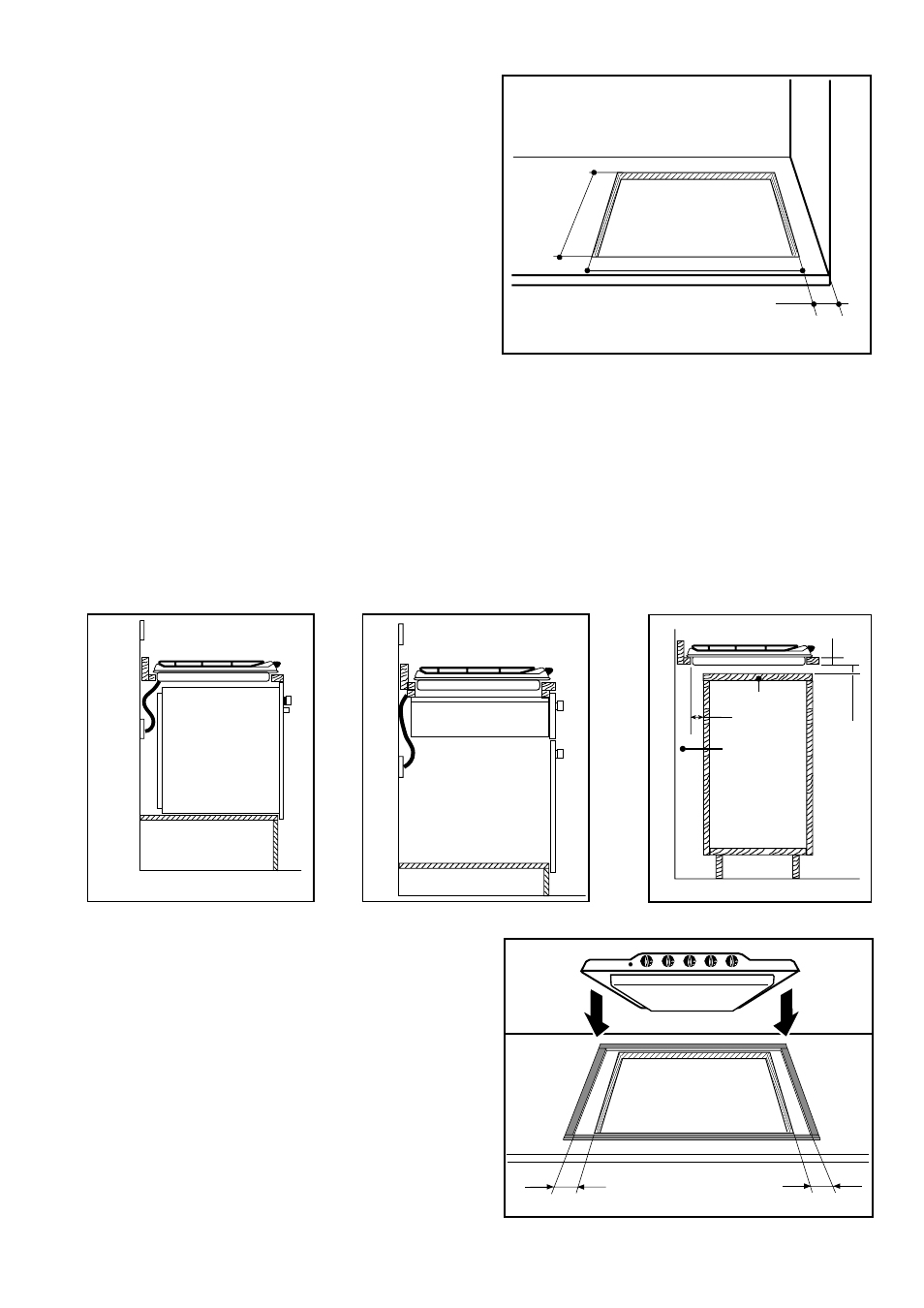

Rectangular cut-out size for hob
FO 2038
Cut Out Size
The dimensions of the cut-out are given in the diagram.
Fitting the Hob into the worktop
Carry out the building in of the hob as follows:
• put the seals supplied with the hob, on the
edges of the cut out: place them exactly on
the front and rear edge and at 50 mm. from
the side edges, as shown in the diagram,
taking care that the seals meet without
overlapping;
• place the hob in the cut out, taking care that it
is centred;
• fix the hob with the relevant fixing clamps and
screws, as shown in the diagram. When the
screws have been tightened, the excess seal
can be removed.
The edge of the hob forms a double seal which prevents
the ingress of liquids.
Building over a kitchen unit with
door
Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the bottom
of the hob which can be heated when it is operated. The
recommended solution is shown in diagram 3.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical assistance
is needed. The space behind the kitchen unit ("b") can
be used for connections.
560
150 min
480
Dimensions are given in mm.
